제조사부품번호

NXP, 16 bit HSC12, MC9S12 Microcontroller, 25 MHz, 128kB FLASH, 112-Pin LQFP

RS 제품 번호:: 169-7280
제조사 부품 번호:: MC9S12DG128CPVE
제조업체:: NXP

NXP, 16 bit HSC12, MC9S12 Microcontroller, 25 MHz, 128kB FLASH, 112-Pin LQFP

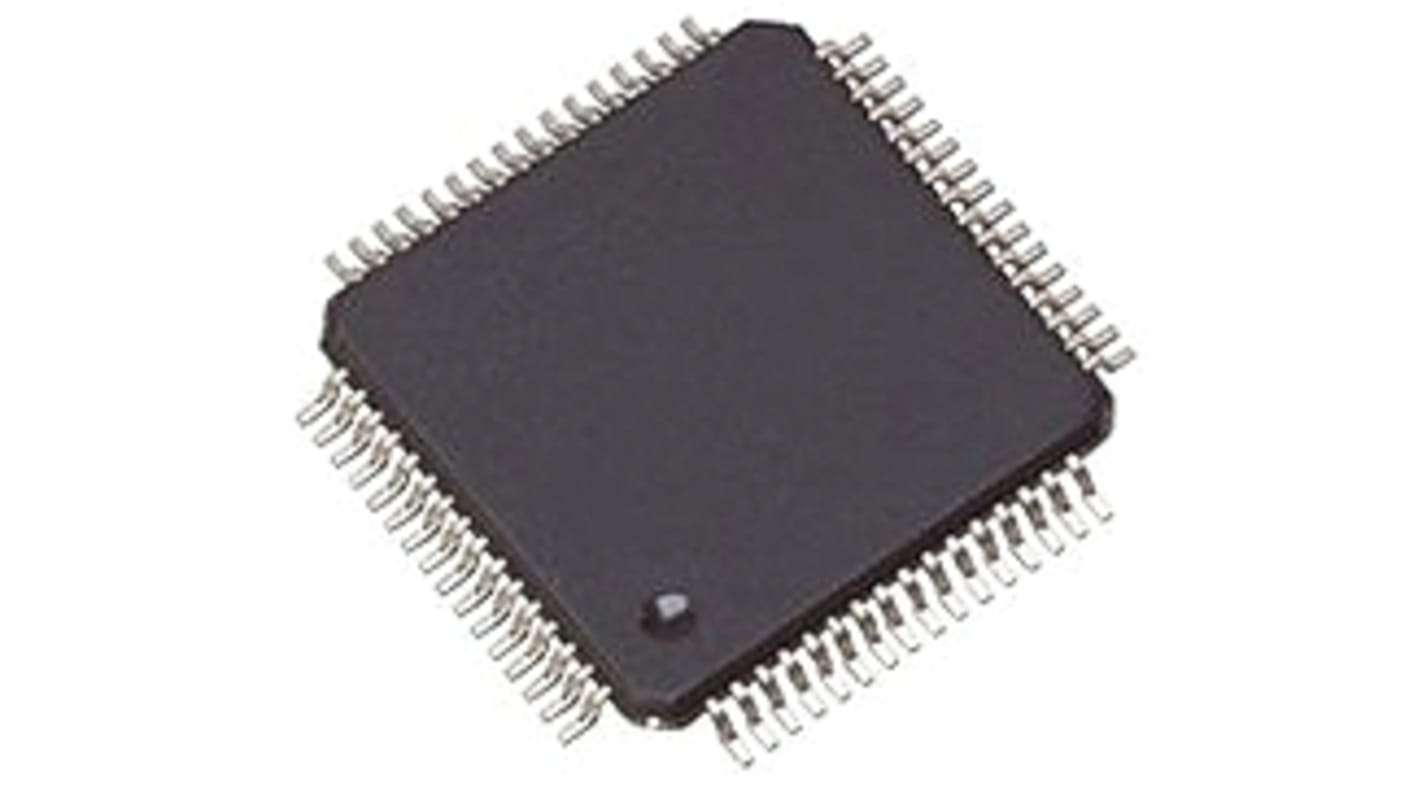

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Microcontrollers 열람하기

대량 구매 할인 기용 가능

Subtotal (1 tray of 60 units)*

₩6,529,428.00

재고있음

240 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tray*
60 - 60	₩108,823.80	₩6,529,461.84
120 - 180	₩106,648.64	₩6,398,884.56
240 +	₩104,514.84	₩6,270,867.84

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 169-7280
제조사 부품 번호:: MC9S12DG128CPVE
제조업체:: NXP

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	NXP
	Product Type	Microcontroller
	Series	MC9S12
	Package Type	LQFP
	Mount Type	Surface
	Pin Count	112
	Device Core	HSC12
	Data Bus Width	16bit
	Interface Type	MEBI, SPI, SCI
	Program Memory Size	128kB
	Maximum Clock Frequency	25MHz
	RAM Size	8kB
	Maximum Supply Voltage	6V
	Number of Programmable I/Os	8
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	RoHS
	Width	20 mm
	Height	1.45mm
	Length	20mm
	Minimum Supply Voltage	-0.3V
	Automotive Standard	AEC-Q100
	Number of Timers	1
	Program Memory Type	FLASH
	Instruction Set Architecture	MCU
	ADCs	8 x 10 Bit

	모두 선택
	브랜드 NXP
	Product Type Microcontroller
	Series MC9S12
	Package Type LQFP
	Mount Type Surface
	Pin Count 112
	Device Core HSC12
	Data Bus Width 16bit
	Interface Type MEBI, SPI, SCI
	Program Memory Size 128kB
	Maximum Clock Frequency 25MHz
	RAM Size 8kB
	Maximum Supply Voltage 6V
	Number of Programmable I/Os 8
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals RoHS
	Width 20 mm
	Height 1.45mm
	Length 20mm
	Minimum Supply Voltage -0.3V
	Automotive Standard AEC-Q100
	Number of Timers 1
	Program Memory Type FLASH
	Instruction Set Architecture MCU
	ADCs 8 x 10 Bit

S12DG Series Microcontroller Units

S12DG Series are 16-bit microcontroller units (MCU) that can also Interface single 8-bit wide memory for lower cost systems. The integrated PLL circuit allows flexibility with power consumption and performance to suit the operational requirements of the user.

S12A/D microcontroller units include the standard on-chip peripherals below;

HCS12 CPU

128 K bytes of Flash EEPROM

2 K bytes of EEPROM

8 K bytes of RAM

2 asynchronous Serial Communications Interfaces (SCI)

1 Serial Peripheral Interface (SPI)

8-channel IC/OC enhanced Capture Timer

2 8-channel, 10-bit Analogue to Digital Converters (ADC)

8-channel Pulse-Width Modulator (PWM)

Digital Byte Data Link Controller (BDLC)

29 Discrete digital I/O channels

20 Discrete digital I/O lines

CAN software compatible modules

Byteflight module

Inter-IC Bus

S12 Microcontrollers, NXP

NXP S12 microcontrollers are high-performance 16-bit devices for automotive and industrial applications.
