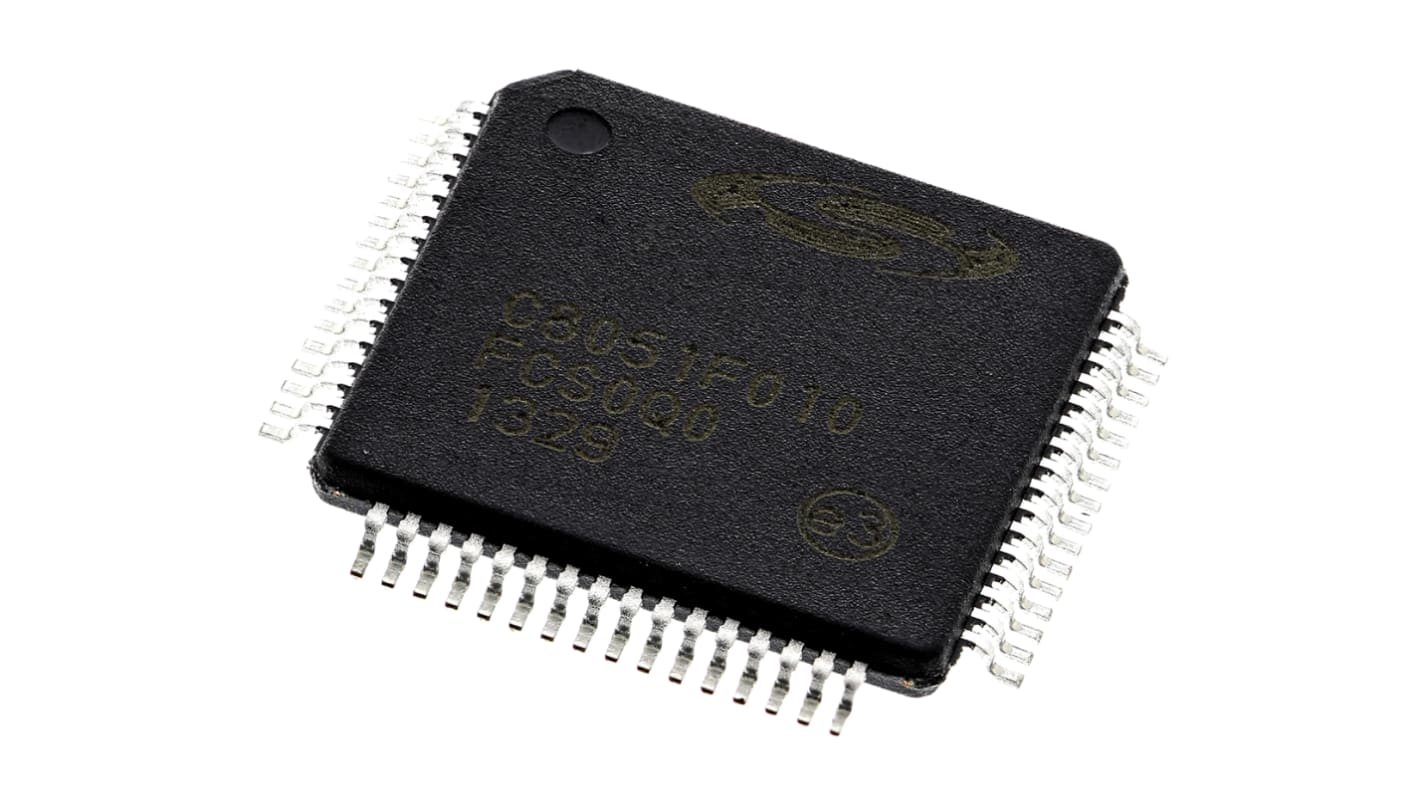

Silicon Labs C8051F010-GQ, 8bit 8051 Microcontroller, C8051F, 20MHz, 32 kB Flash, 64-Pin TQFP
- RS 제품 번호:
- 168-9827
- 제조사 부품 번호:
- C8051F010-GQ
- 제조업체:
- Silicon Labs
단종
- RS 제품 번호:
- 168-9827
- 제조사 부품 번호:
- C8051F010-GQ
- 제조업체:
- Silicon Labs
C8051F00x / C8051F01x Microcontollers, Silicon Labs
The Silicon Labs C8051F00x / C8051F01x families of analogue intensive, 8-bit microcontrollers (MCU) have 8051-compatible MCU core with up to 32 kB of FLASH memory. With either a true 10-bit or 12-bit multi-channel ADC and two separate 12-bit DACs, two voltage comparators (F002/07/12/17 one only) and voltage reference.
There have a range of interfaces including I2C/SMBus, UART and SPI implemented in hardware and a Programmable Counter/Timer Array (PCA) with five capture/compare modules. They also feature four general purpose 16-bit timers and 4 byte-wide general purpose digital Port I/O.
The F000/01/02/10/11/12 have 256 B RAM and execute up to 20 MIPS.
The F005/06/07/15/16/17 have 2304 B RAM and execute up to 25 MIPS.
There have a range of interfaces including I2C/SMBus, UART and SPI implemented in hardware and a Programmable Counter/Timer Array (PCA) with five capture/compare modules. They also feature four general purpose 16-bit timers and 4 byte-wide general purpose digital Port I/O.
The F000/01/02/10/11/12 have 256 B RAM and execute up to 20 MIPS.
The F005/06/07/15/16/17 have 2304 B RAM and execute up to 25 MIPS.
- 20 MIPS to 25 MIPS 8051 CPU
- 16 kB to 32 kB Flash Memory
- 256 B to 2304 B RAM
- 10-bit or 12-bit ADC with either 4 or 8 channels at 100 ksps
- Two 12-bit DACs
- Temperature Sensor
- Voltage Reference
- One or two analogue comparators
- Five PCA channels
- JTAG debug interface
- 16 kB to 32 kB Flash Memory
- 256 B to 2304 B RAM
- 10-bit or 12-bit ADC with either 4 or 8 channels at 100 ksps
- Two 12-bit DACs
- Temperature Sensor
- Voltage Reference
- One or two analogue comparators
- Five PCA channels
- JTAG debug interface
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
속성 | 값 |
|---|---|
| Family Name | C8051F |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | 8051 |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 256 B |
| USB Channels | 0 |
| Number of PWM Units | 5 |
| Number of SPI Channels | 1 |
| Number of CAN Channels | 0 |
| Number of I2C Channels | 1 |
| Typical Operating Supply Voltage | 2.7 → 3.6 V |
| Number of USART Channels | 0 |
| Number of UART Channels | 1 |
| Number of PCI Channels | 0 |
| Dimensions | 12 x 12 x 1.05mm |
| Minimum Operating Temperature | -40 °C |
| Width | 12mm |
| Height | 1.05mm |
| Number of LIN Channels | 0 |
| ADCs | 8 x 10 bit |
| Instruction Set Architecture | CISC |
| Number of Ethernet Channels | 0 |
| Number of ADC Units | 1 |
| Length | 12mm |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Pulse Width Modulation | 5 (PWM/CCA) |
| Maximum Number of Ethernet Channels | 0 |
