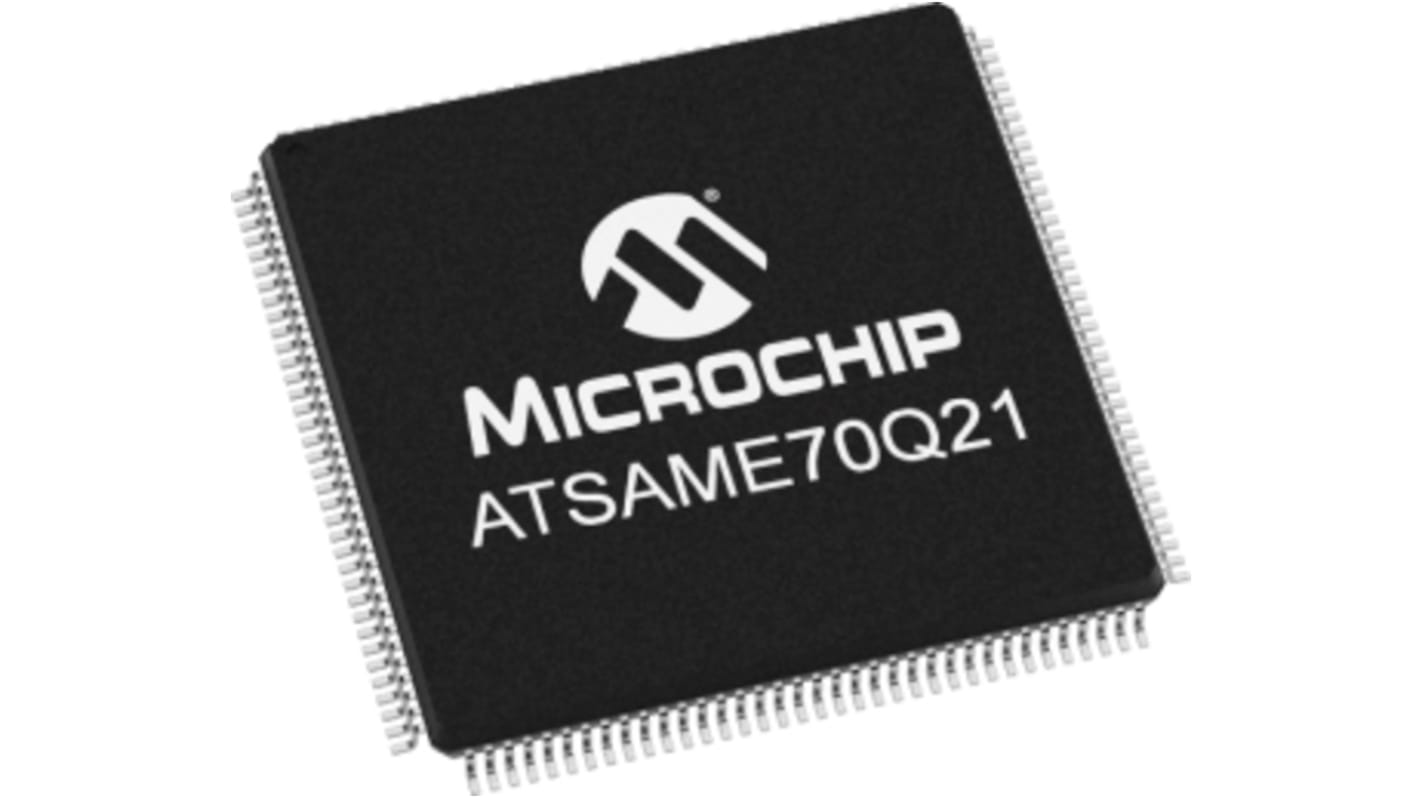

Microchip, 32bit ARM Cortex M7, SAME70 Microcontroller, 300MHz, 2 MB Flash, 144-Pin LQFP
- RS 제품 번호:
- 168-2665
- 제조사 부품 번호:
- ATSAME70Q21B-AN
- 제조업체:
- Microchip
Subtotal (1 tray of 160 units)**
₩5,069,683.20
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 | Per Tray** |
|---|---|---|
| 160 - 640 | ₩31,685.52 | ₩5,069,743.36 |
| 800 + | ₩31,051.96 | ₩4,968,343.68 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 168-2665
- 제조사 부품 번호:
- ATSAME70Q21B-AN
- 제조업체:
- Microchip
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Family Name | SAME70 | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 144 | |
| Device Core | ARM Cortex M7 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 2 MB | |
| Maximum Frequency | 300MHz | |
| RAM Size | 384 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 2 x 16 bit | |
| Number of SPI Channels | 3 | |
| Number of USART Channels | 3 | |
| Number of I2C Channels | 0 | |
| Number of CAN Channels | 2 | |
| Number of UART Channels | 5 | |
| Typical Operating Supply Voltage | 3.6 (Maximum) V | |
| Number of ADC Units | 1 | |
| Number of Ethernet Channels | 1 | |
| Number of PCI Channels | 0 | |
| Pulse Width Modulation | 2 (4 x 16 bit) | |
| Dimensions | 20 x 20x 1.45mm | |
| Number of LIN Channels | 1 | |
| Height | 1.45mm | |
| Length | 20mm | |
| ADCs | 24 x 12 bit | |
| Width | 20mm | |
| Maximum Number of Ethernet Channels | 1 | |
| Instruction Set Architecture | DSP | |
| Program Memory Type | Flash | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +105 °C | |
| Automotive Standard | AEC-Q100 | |
