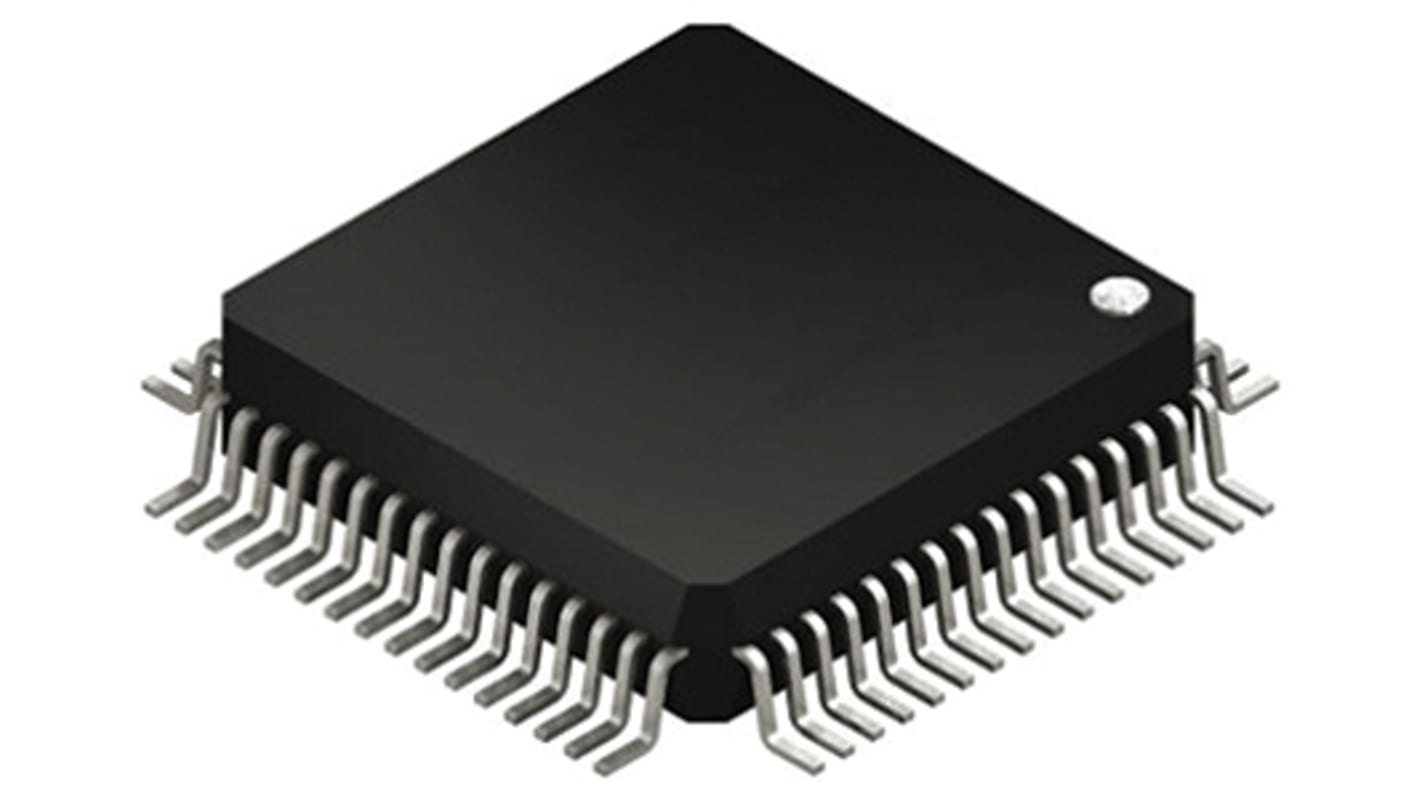

Texas Instruments, 16bit MSP430, MSP430 Microcontroller, 16MHz, 32 kB, 256 B Flash, 64-Pin LQFP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Microcontrollers 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tube of 160 units)*

₩2,066,496.00

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 3월 23일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Tube*
160 - 640₩12,915.60₩2,066,556.16
800 +₩12,658.04₩2,025,226.24

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
162-7009
제조사 부품 번호:
MSP430F247TPM
제조업체:
Texas Instruments
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Texas Instruments

Family Name

MSP430

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

64

Device Core

MSP430

Data Bus Width

16bit

Program Memory Size

32 kB, 256 B

Maximum Frequency

16MHz

RAM Size

4 kB

USB Channels

0

Number of PWM Units

2 x 16 bit

Number of SPI Channels

4

Number of USART Channels

0

Typical Operating Supply Voltage

1.8 → 3.6 V

Number of I2C Channels

2

Number of CAN Channels

0

Number of UART Channels

2

Instruction Set Architecture

RISC

Minimum Operating Temperature

-40 °C

Pulse Width Modulation

3 x 16 bit, 7 x 16 bit

Program Memory Type

Flash

Maximum Number of Ethernet Channels

0

Number of PCI Channels

0

Number of Ethernet Channels

0

Number of LIN Channels

2

Height

1.45mm

Width

10.2mm

Dimensions

10.2 x 10.2 x 1.45mm

Maximum Operating Temperature

+105 °C

Number of ADC Units

1

Length

10.2mm

ADCs

8 x 12 bit

MSP430F2x Extended Temperature Ultra-Low-Power Microcontrollers, Texas Instruments


The Extended Temperature range of MSP430™ devices are very popular in harsh environments which require extended operational environment temperatures to 105°C.

Up to 16MHz CPU speed clock
Up to 120KB Flash memory
Up to 8KB SRAM memory
1.8V to 3.6V operation
Smart Analog and Digital
Low Power 200μA/MHz active mode
Low Power 0.7μA real-time clock mode
Low Power 0.1μA RAM retention
Ultra-Fast Wake-Up From Standby Mode in less than 6μs

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.



MSP430 Microcontrollers, Texas Instruments


The MSP430 Platform is a range of mixed-signal, ultra-low power microcontrollers from Texas Instruments. The 16-bit RISC architecture is perfectly suited for wireless, low-power industrial and portable applications. This established range has a strong and popular position due to its ease of use and broad suite of development tools and support.
The MSP430 portfolio consists of over 400 devices ranging from the MSP430 Value Line to the revolutionary, highly integrated microcontrollers with embedded FRAM memory.This broad family of products offer integration suited to many designs and applications. High-performance peripherals include USB, RF, LCD controllers and Sigma-Delta ADCs. This allows designers to find the appropriate MSP430 device for many low power applications.
