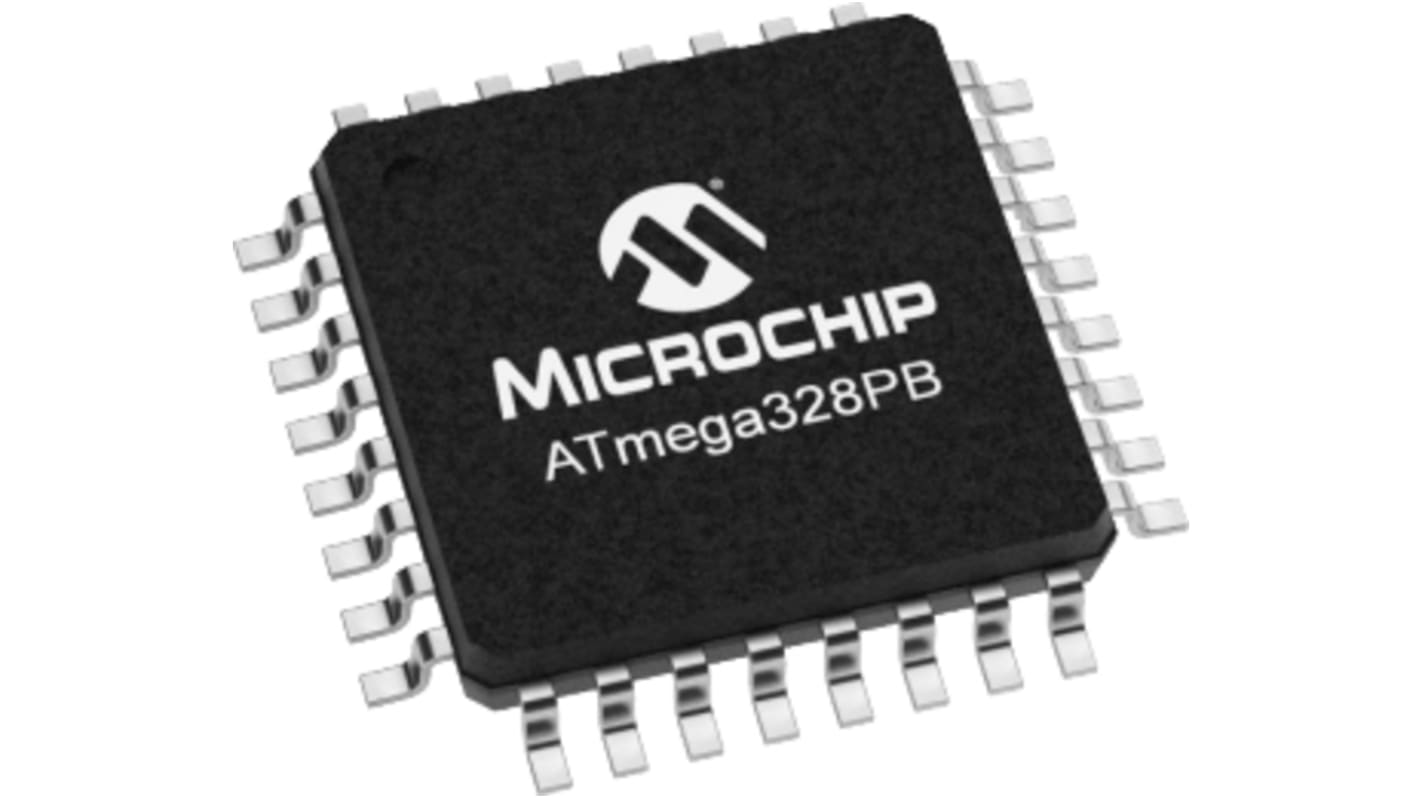

Microchip, 8bit 8 bit CPU, ATmega Microcontroller, 20MHz, 32 kB Flash, 32-Pin TQFP

모든 Microcontrollers 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tray of 250 units)*

₩565,880.00

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2025년 12월 15일 부터 2,750 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Tray*
250 - 1000₩2,263.52₩566,068.00
1250 +₩2,218.40₩554,741.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
146-3220
제조사 부품 번호:
ATMEGA328PB-AN
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Family Name

ATmega

Package Type

TQFP

Mounting Type

Surface Mount

Pin Count

32

Device Core

8 bit CPU

Data Bus Width

8bit

Program Memory Size

32 kB

Maximum Frequency

20MHz

RAM Size

1 kB

USB Channels

0

Number of PWM Units

1

Number of SPI Channels

2

Number of USART Channels

2

Number of I2C Channels

2

Typical Operating Supply Voltage

1.8 → 5.5 V

Number of UART Channels

2

Number of CAN Channels

0

Length

7.1mm

Minimum Operating Temperature

-40 °C

ADCs

8 x 10 bit

Instruction Set Architecture

RISC

Maximum Number of Ethernet Channels

0

Number of ADC Units

1

Maximum Operating Temperature

+105 °C

Number of Ethernet Channels

0

Width

7.1mm

Dimensions

7.1 x 7.1 x 1.05mm

Pulse Width Modulation

1 (10 Channel)

Program Memory Type

Flash

Number of PCI Channels

0

Height

1.05mm

Number of LIN Channels

0

Data Rate

15kbit/s

The high-performance Microchip's ATmega328PB is an 8-bit AVR® RISC-based microcontroller (MCU) with picoPower® technology. It combines 32kB ISP Flash memory with read-while-write capabilities, 27 general purpose I/O lines, 32 general purpose working registers, five flexible timer/counters with compare modes, internal and external interrupts, two USARTs with wake-up on start of transmission, two byte-oriented 2-wire serial interfaces, two SPI serial ports, 8-channel 10-bit A/D converter.

Advanced RISC Architecture
131 Powerful Instructions
Most Single Clock Cycle Execution
Fully Static Operation On-Chip 2-Cycle Multiplier
High Endurance Non-Volatile Memory Segments
