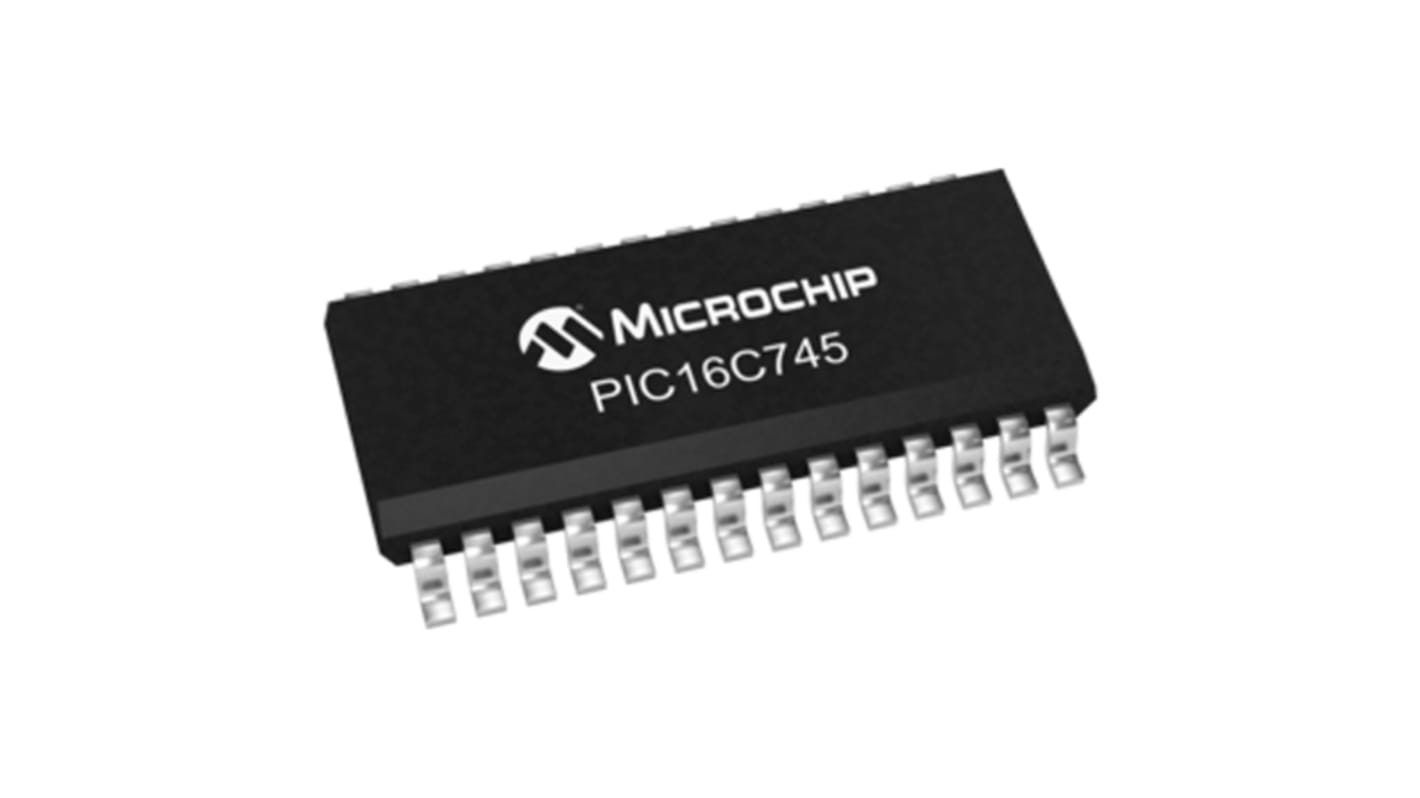

Name: Microchip, 8 bit PIC, PIC16C745 Microcontroller, 24 MHz, 14kB EPROM, 28-Pin SOIC
Brand: Microchip
SKU: 144-9130
Price: 8777.72 KRW
Availability: Discontinued

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Series	PIC16C745
	Product Type	Microcontroller
	Package Type	SOIC
	Mount Type	Surface
	Pin Count	28
	Device Core	PIC
	Data Bus Width	8bit
	Interface Type	USART
	Program Memory Size	14kB
	Maximum Clock Frequency	24MHz
	RAM Size	256bit
	Maximum Supply Voltage	5.25V
	Number of Programmable I/Os	22
	Minimum Operating Temperature	-40°C
	Maximum Power Dissipation Pd	1W
	Maximum Operating Temperature	85°C
	Height	2.39mm
	Standards/Approvals	RoHS
	Length	18.08mm
	Width	7.59 mm
	Minimum Supply Voltage	4.35V
	ADCs	5 x 8 Bit
	Program Memory Type	EPROM
	Instruction Set Architecture	RISC
	Number of Timers	3
	Automotive Standard	ISO/TS 16949

	모두 선택
	브랜드 Microchip
	Series PIC16C745
	Product Type Microcontroller
	Package Type SOIC
	Mount Type Surface
	Pin Count 28
	Device Core PIC
	Data Bus Width 8bit
	Interface Type USART
	Program Memory Size 14kB
	Maximum Clock Frequency 24MHz
	RAM Size 256bit
	Maximum Supply Voltage 5.25V
	Number of Programmable I/Os 22
	Minimum Operating Temperature -40°C
	Maximum Power Dissipation Pd 1W
	Maximum Operating Temperature 85°C
	Height 2.39mm
	Standards/Approvals RoHS
	Length 18.08mm
	Width 7.59 mm
	Minimum Supply Voltage 4.35V
	ADCs 5 x 8 Bit
	Program Memory Type EPROM
	Instruction Set Architecture RISC
	Number of Timers 3
	Automotive Standard ISO/TS 16949

PIC16C745/765 8-Bit Microcontrollers

The PIC16C range of Microcontrollers from Microchip are 8-bit CMOS MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Now supplanted by Flash based variants these devices are still popular in legacy designs. For new applications PIC16F variants should be considered.

The PIC16C745/765 family of microcontrollers is based upon Microchip’s mid-range architecture with an 8 level hardware stack and 35 14-bit instructions. These MCUs provide up to 6 MIPS, 14 Kbytes program memory with data memory of 256 bytes RAM. On board is a RC oscillator with ±1% accuracy.

Features

35 Instructions

8 Level Hardware Stack

6 MHz RC Oscillator

22 I/O Pins – PIC16C745

33 I/O Pins – PIC16C765

2 Capture, Compare, PWM (CCP) Modules

5 Channel 8-bit Analogue-to-Digital Converter (ADC) – PIC16C745

8 Channel 8-bit Analogue-to-Digital Converter (ADC) – PIC16C765

Two 8-bit Timers

One 16-bit Timer

Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI)

Parallel Slave Port –PIC16C765 only

Watchdog Timer (WDT)

Power-on Reset (POR)

Power-up Timer (PWRT)

Oscillator Start-up Timer (OST)

Brown-out Reset (BOR)

In-Circuit Serial Programming (ICSP)

Microchip, 8 bit PIC, PIC16C745 Microcontroller, 24 MHz, 14kB EPROM, 28-Pin SOIC

PIC16C745/765 8-Bit Microcontrollers

Features
