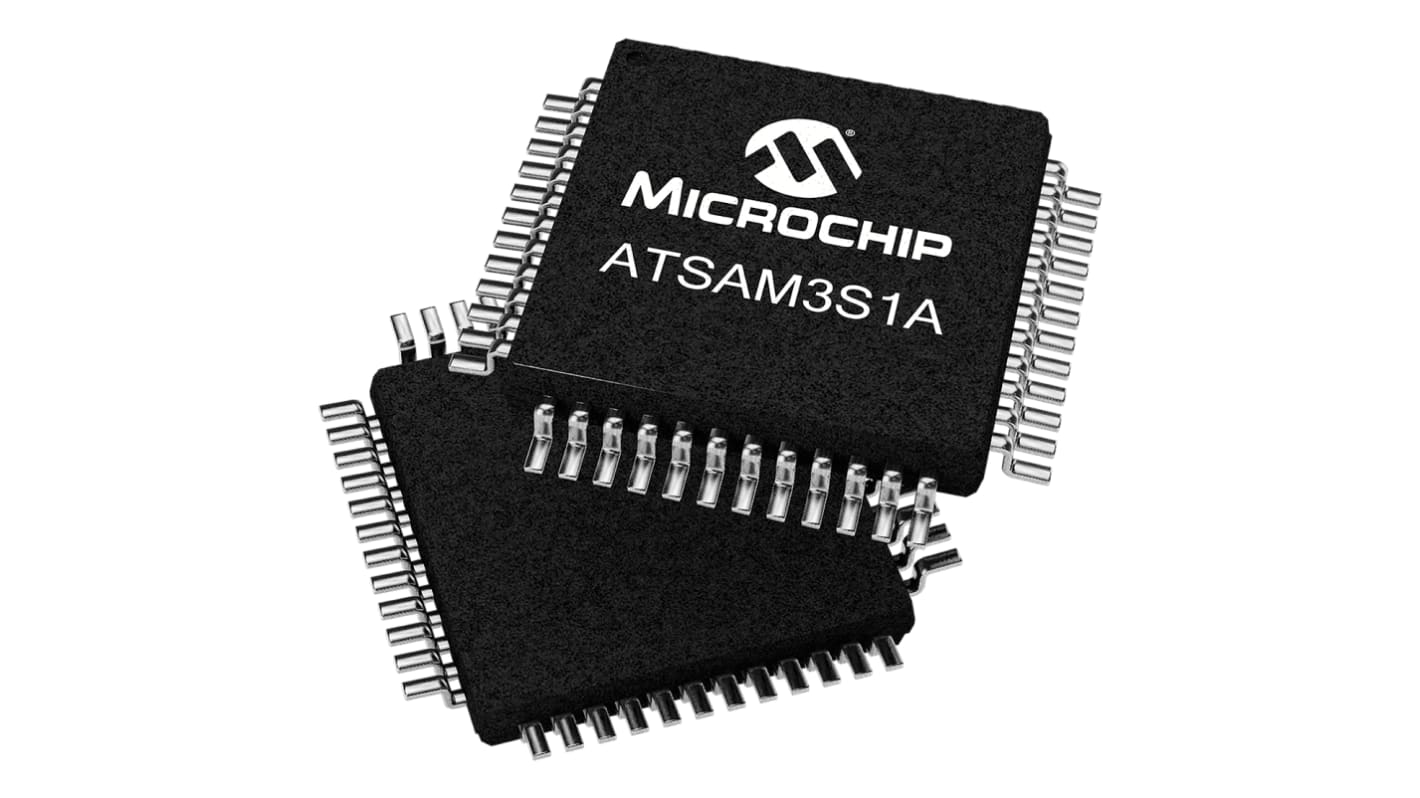

Microchip, 32bit ARM Cortex M3, SAM3S Microcontroller, 64MHz, 64 kB Flash, 48-Pin LQFP
- RS 제품 번호:
- 131-0380
- 제조사 부품 번호:
- ATSAM3S1AB-AU
- 제조업체:
- Microchip
가격 개당가격(2개가 1팩안에)**
₩6,307.40
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 | 한팩당** |
|---|---|---|
| 2 - 8 | ₩6,307.40 | ₩12,614.80 |
| 10 - 22 | ₩6,185.20 | ₩12,370.40 |
| 24 - 98 | ₩6,053.60 | ₩12,107.20 |
| 100 + | ₩5,940.80 | ₩11,881.60 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 131-0380
- 제조사 부품 번호:
- ATSAM3S1AB-AU
- 제조업체:
- Microchip
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Family Name | SAM3S | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 48 | |
| Device Core | ARM Cortex M3 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 64 kB | |
| Maximum Frequency | 64MHz | |
| RAM Size | 16 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 1 x 16 bit | |
| Number of SPI Channels | 2 | |
| Number of USART Channels | 1 | |
| Number of I2C Channels | 2 | |
| Number of CAN Channels | 0 | |
| Number of UART Channels | 2 | |
| Typical Operating Supply Voltage | 1.8 V, 3.3 V | |
| Program Memory Type | Flash | |
| Length | 7mm | |
| ADCs | 8 x 12 bit | |
| Maximum Number of Ethernet Channels | 0 | |
| Number of PCI Channels | 0 | |
| Instruction Set Architecture | RISC | |
| Number of Ethernet Channels | 0 | |
| Number of LIN Channels | 0 | |
| Height | 1.45mm | |
| Width | 7mm | |
| Dimensions | 7 x 7 x 1.45mm | |
| Pulse Width Modulation | 1 (4 x 16 bit) | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Number of ADC Units | 1 | |
