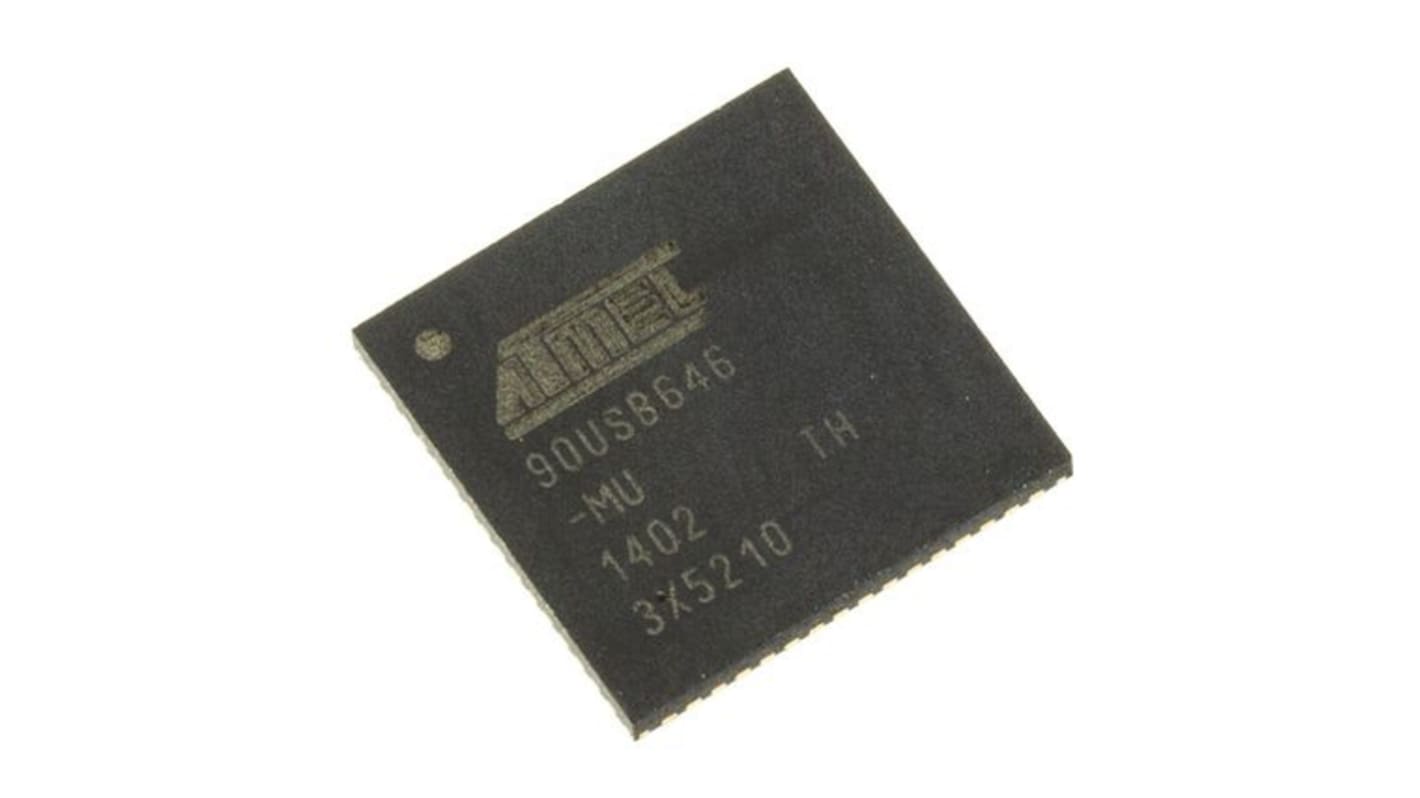

Microchip AT90USB646-MU, 8 bit AVR, AT90USB646 Microcontroller, 16 MHz, 64kB FLASH, 64-Pin QFN

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Microcontrollers 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
127-8167
제조사 부품 번호:
AT90USB646-MU
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Series

AT90USB646

Product Type

Microcontroller

Package Type

QFN

Mount Type

Surface

Pin Count

64

Device Core

AVR

Data Bus Width

8bit

Program Memory Size

64kB

Interface Type

SPI

Maximum Clock Frequency

16MHz

RAM Size

4kB

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

-40°C

Maximum Power Dissipation Pd

800mW

Analogue Comparators

2

DACs

2 x 8 Bit

Number of Programmable I/Os

18

Maximum Operating Temperature

85°C

Width

9 mm

Length

9mm

Height

0.95mm

Standards/Approvals

RoHS

Minimum Supply Voltage

1.8V

Automotive Standard

No

ADCs

8 x 10 Bit

Instruction Set Architecture

RISC

Program Memory Type

FLASH

Number of Timers

2

COO (Country of Origin):
TH

8-Bit megaAVR Microcontrollers with USB Controller, Atmel


These megaAVR® microcontrollers feature a USB controller and offer substantial program and data memories with performance up to 20 MIPS. All megaAVR offer self-programmability for fast, secure, cost-effective in-circuit upgrades.
