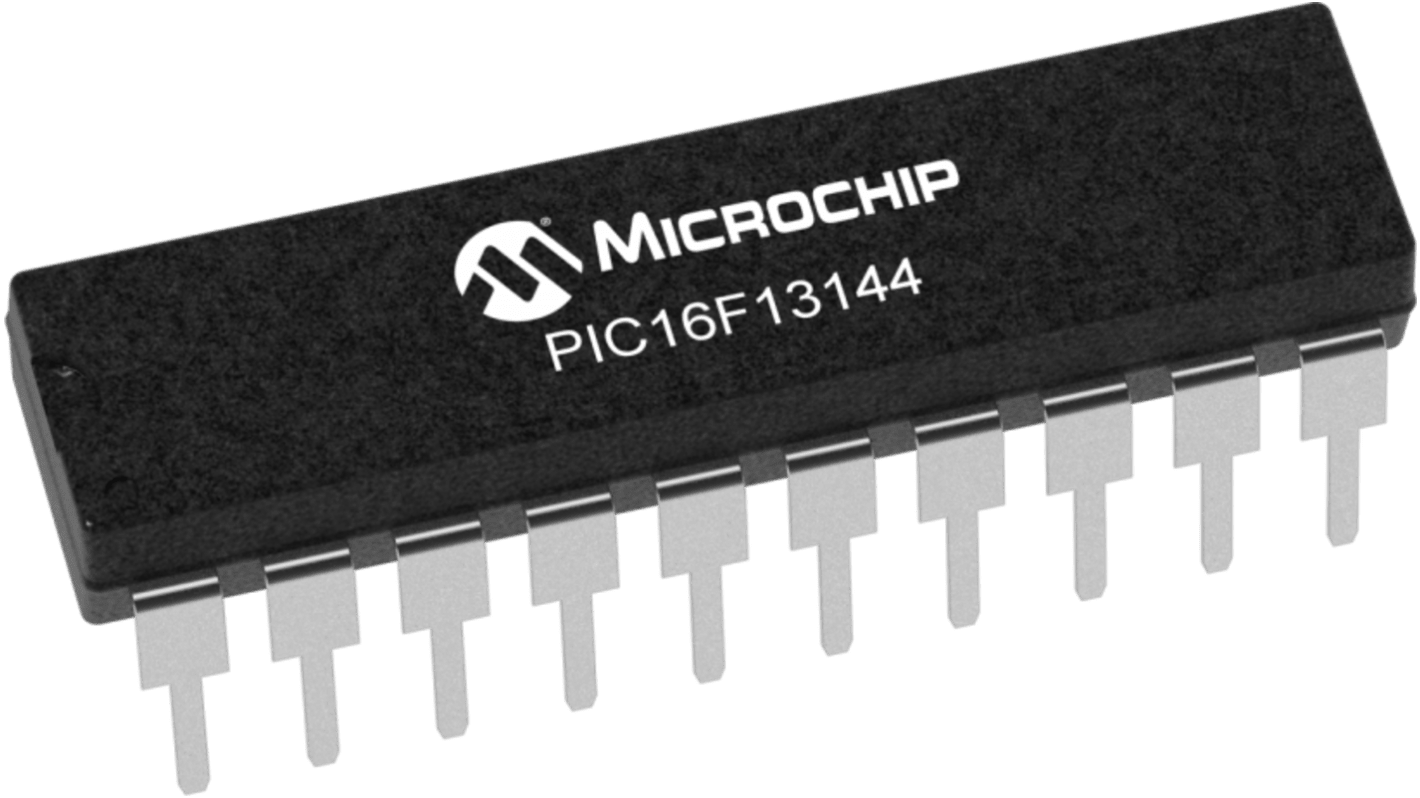

Microchip PIC16F13144-E/P, 8 bit PIC16F, PIC16F13145 8 Bit Microcontroller, 32 MHz, 7kB FLASH, 20-Pin PDIP

RS 제품 번호:: 585-409
제조사 부품 번호:: PIC16F13144-E/P
제조업체:: Microchip

Microchip PIC16F13144-E/P, 8 bit PIC16F, PIC16F13145 8 Bit Microcontroller, 32 MHz, 7kB FLASH, 20-Pin PDIP

Subtotal (1 Box of 418 units)*

₩1,345,358.08

일시적 품절

2026년 2월 18일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Box*
418 +	₩3,218.56	₩1,345,044.12

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 585-409
제조사 부품 번호:: PIC16F13144-E/P
제조업체:: Microchip

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Product Type	8 Bit Microcontroller
	Series	PIC16F13145
	Package Type	PDIP
	Mount Type	Through Hole
	Pin Count	20
	Device Core	PIC16F
	Data Bus Width	8bit
	Program Memory Size	7kB
	Maximum Clock Frequency	32MHz
	RAM Size	1kB
	Maximum Supply Voltage	5.5V
	Analogue Comparators	2
	Minimum Operating Temperature	-40°C
	Number of Programmable I/Os	17
	Maximum Expanded Memory Size	7kB
	Maximum Power Dissipation Pd	800mW
	DACs	8 bit
	Maximum Operating Temperature	125°C
	Length	3mm
	Height	0.9mm
	Width	3 mm
	Standards/Approvals	RoHS
	Minimum Supply Voltage	1.8V
	ADCs	10 bit
	Instruction Set Architecture	RISC
	Automotive Standard	No
	Program Memory Type	FLASH
	Number of Timers	3

	모두 선택
	브랜드 Microchip
	Product Type 8 Bit Microcontroller
	Series PIC16F13145
	Package Type PDIP
	Mount Type Through Hole
	Pin Count 20
	Device Core PIC16F
	Data Bus Width 8bit
	Program Memory Size 7kB
	Maximum Clock Frequency 32MHz
	RAM Size 1kB
	Maximum Supply Voltage 5.5V
	Analogue Comparators 2
	Minimum Operating Temperature -40°C
	Number of Programmable I/Os 17
	Maximum Expanded Memory Size 7kB
	Maximum Power Dissipation Pd 800mW
	DACs 8 bit
	Maximum Operating Temperature 125°C
	Length 3mm
	Height 0.9mm
	Width 3 mm
	Standards/Approvals RoHS
	Minimum Supply Voltage 1.8V
	ADCs 10 bit
	Instruction Set Architecture RISC
	Automotive Standard No
	Program Memory Type FLASH
	Number of Timers 3

Datasheet - PIC16F13144-E/P

COO (Country of Origin):: TH

The Microchip Microcontroller focuses on set of peripherals, provides an effective method to implement hardware-based solutions. This device family introduces the Configurable Logic Block (CLB) peripheral, enabling users to incorporate hardware-based custom logic into their applications. The CLB is comprised of 32 individual logic elements. Each logic element’s Look Up Table (LUT) based design offers vast customization options, and CPU-independent operation improves the response time and power consumption. The small form factor, combined with the CLB and other core independent peripherals, makes it well-suited for various applications such as real-time control, digital sensor nodes, and market segments such as industrial and automotive.

Configurable Logic Block with 32 Basic Logic Elements

ADC with Computation up to 300ksps

Digital to Analog Converter

Windowed Watchdog Timer

7Kb Program Flash Memory

512 B Data SRAM

PDIP Package

Microchip PIC16F13144-E/P, 8 bit PIC16F, PIC16F13145 8 Bit Microcontroller, 32 MHz, 7kB FLASH, 20-Pin PDIP
