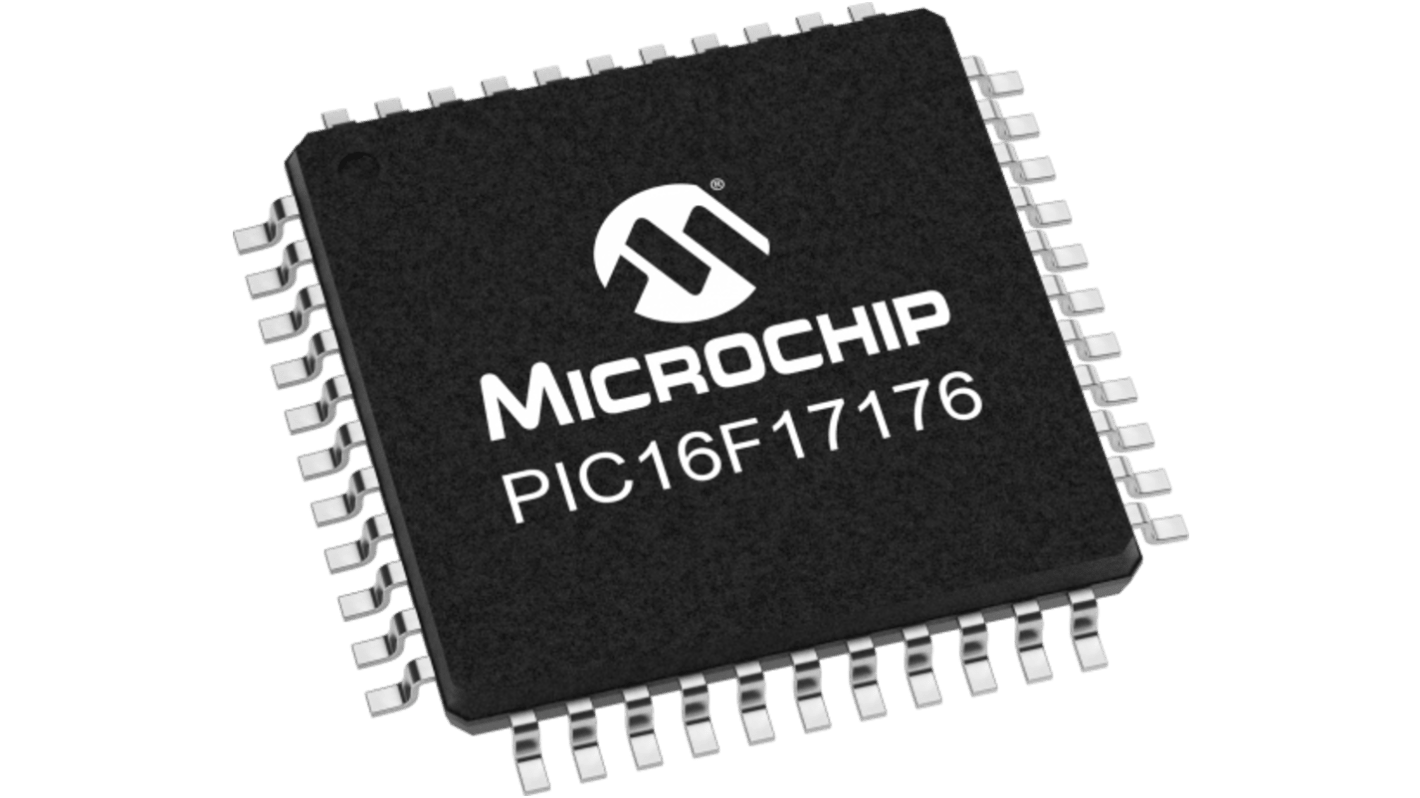

Microchip PIC16F17176-I/PT, 8 bit PIC16F, PIC16F171 8 Bit Microcontroller, 32 MHz, 28kB FLASH, 44-Pin TQFP

N
모든 Microcontrollers 열람하기

Subtotal (1 Box of 480 units)*

₩1,365,331.20

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 1월 26일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Box*
480 +₩2,844.44₩1,365,601.92

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
585-145
제조사 부품 번호:
PIC16F17176-I/PT
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Series

PIC16F171

Product Type

8 Bit Microcontroller

Package Type

TQFP

Mount Type

Surface

Pin Count

44

Device Core

PIC16F

Data Bus Width

8bit

Program Memory Size

28kB

Maximum Clock Frequency

32MHz

RAM Size

2048bit

Maximum Supply Voltage

5.5V

Number of Programmable I/Os

35

DACs

2 x 8 Bit

Maximum Power Dissipation Pd

800mW

Analogue Comparators

2

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Width

4 mm

Standards/Approvals

RoHS

Length

4mm

Minimum Supply Voltage

1.8V

Program Memory Type

FLASH

Instruction Set Architecture

RISC Architecture

Automotive Standard

No

ADCs

12 bit

Number of Timers

3

COO (Country of Origin):
TH
The Microchip Microcontroller has a suite of analog peripherals that enable precision sensor applications. It includes a low-noise Operational Amplifier (Op-Amp), a 12-bit differential Analog-to-Digital Converter with Computation (ADCC), and two 8-bit Digital-to-Analog Converters (DAC). This small form factor, feature-rich device is well suited for low-cost, energy-efficient analog sensor applications with higher resolution requirements. It also features a C Compiler Optimized RISC Architecture, operates at DC to 32 MHz clock input, has a minimum instruction time of 125 ns, and includes a 16-level deep hardware stack.

Low Current Power on Reset

Configurable Power up Timer

Brown out Reset

Low Power Brown out Reset

Windowed Watchdog Timer
