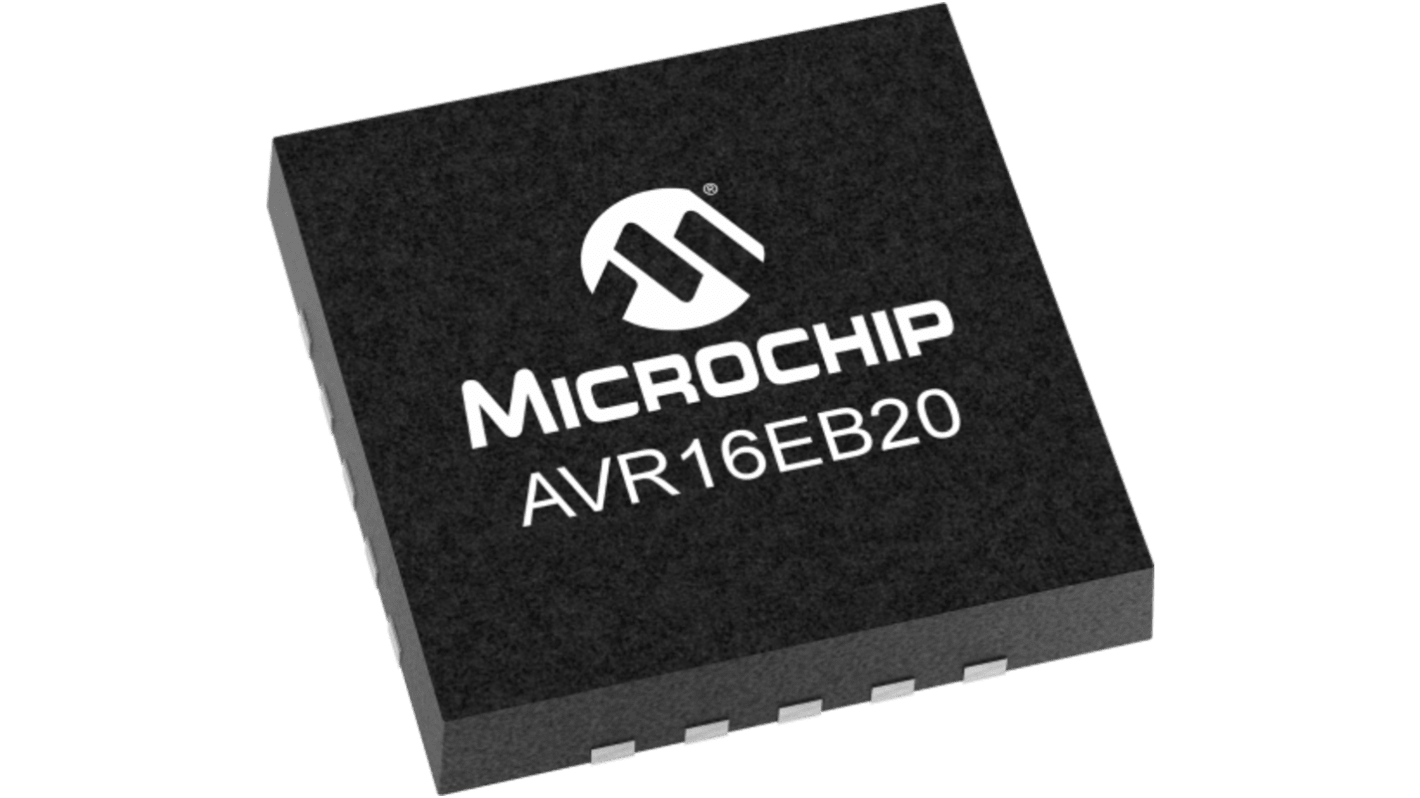

Microchip AVR16EB20T-I/REB AVR, AVR EB family Microcontroller, 20 MHz, 16kB RAM, 20-Pin VQFN

N
모든 Microcontrollers 열람하기

Subtotal (1 reel of 3300 units)*

₩4,566,144.00

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 2월 13일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
릴당*
3300 +₩1,383.68₩4,564,282.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
585-082
제조사 부품 번호:
AVR16EB20T-I/REB
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Product Type

Microcontroller

Series

AVR EB family

Package Type

VQFN

Mount Type

Surface

Pin Count

20

Device Core

AVR

Program Memory Size

16kB

Interface Type

I2C, SPI, USART

Maximum Clock Frequency

20MHz

RAM Size

2kB

Maximum Supply Voltage

5.5V

Number of Programmable I/Os

28

Minimum Operating Temperature

-40°C

Analogue Comparators

2

Maximum Operating Temperature

85°C

Standards/Approvals

RoHS

Minimum Supply Voltage

1.8V

ADCs

24 Channel

Automotive Standard

No

Program Memory Type

RAM

Number of Timers

6

The Microchip Microcontroller uses the latest Microchip technologies featuring a flexible, low-power architecture with an Event System, accurate analog subsystems, and advanced digital peripherals. It is powered by an AVR CPU running up to 20 MHz, offering single-cycle I/O register access, a two-level interrupt controller, and a two-cycle hardware multiplier. The device operates within a supply voltage range of 1.8 to 5.5V. It provides 100,000 cycles for EEPROM, and a data retention of 40 years at 55°C.

Power on Reset

Brown out Detection

Three sleep modes

Voltage Level Monitor with interrupt at a programmable level above the BOD level

Clock Failure Detection

Philips I2C compatible
