STMicroelectronics STM32WBA54KGU7TR, 32 bit ARM Cortex M33, STM32WBA5xxx Wireless Microcontroller, 100 MHz, 1MB FLASH,
- RS 재고 번호:
- 215-150
- 제조 부품 번호:
- STM32WBA54KGU7TR
- 제조업체:
- STMicroelectronics

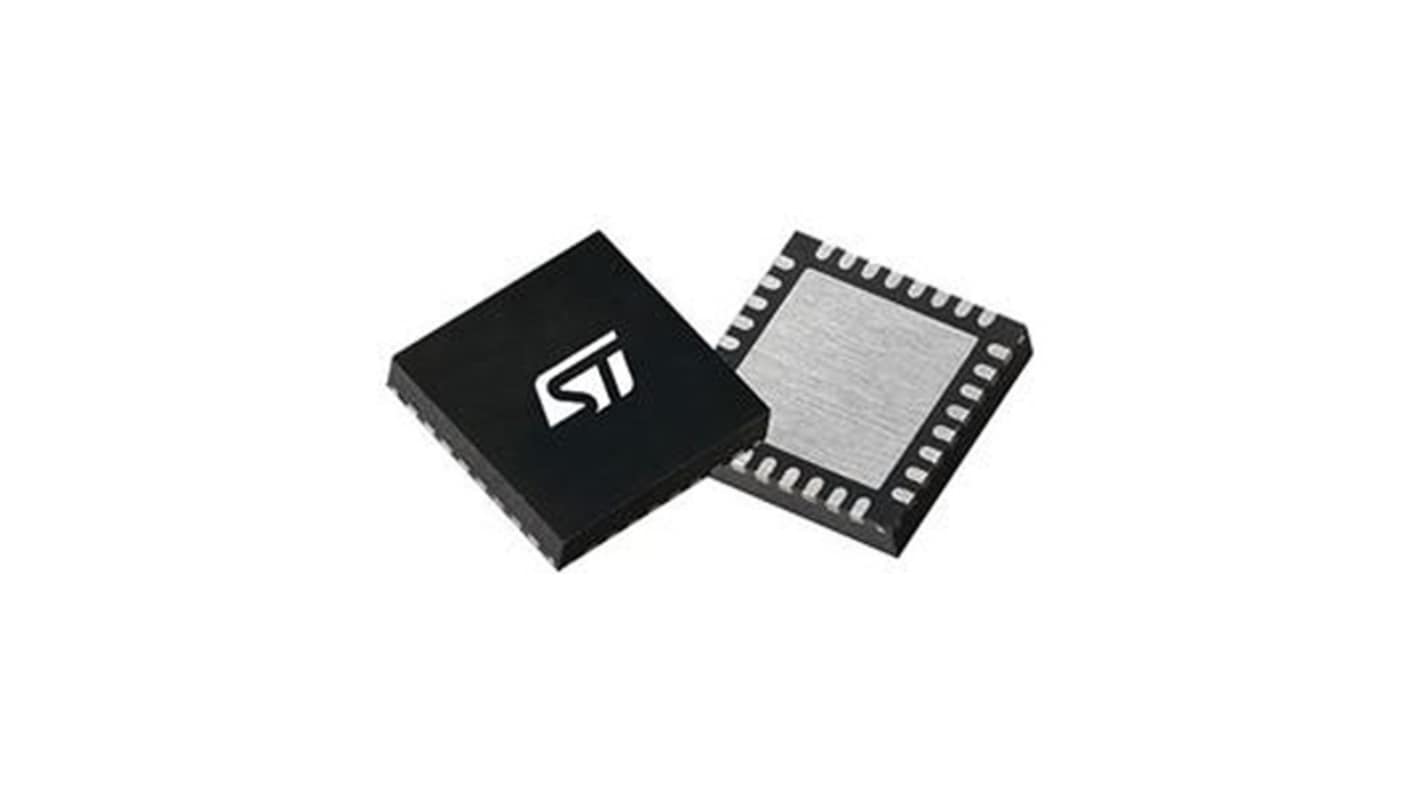

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩10,262.92
재고있음
- 3,000 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당 | 한팩당 |
|---|---|
| 1 - 9 | ₩10,262.92 |
| 10 - 99 | ₩9,242.08 |
| 100 + | ₩8,514.52 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 재고 번호:
- 215-150
- 제조 부품 번호:
- STM32WBA54KGU7TR
- 제조업체:
- STMicroelectronics
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Product Type | Wireless Microcontroller | |
| Series | STM32WBA5xxx | |
| Package Type | UFQFPN | |
| Mount Type | Surface | |
| Pin Count | 32 | |
| Device Core | ARM Cortex M33 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 1MB | |
| Maximum Clock Frequency | 100MHz | |
| RAM Size | 128kB | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Width | 5 mm | |
| Number of Programmable I/Os | 35 | |
| Height | 7mm | |
| Analogue Comparators | 2 | |
| Length | 5mm | |
| Standards/Approvals | ETSI EN 300 328, EN 300 440, ISO 7816, FCC CFR47 part 15, ECOPACK2, ARIB STD-T66 | |
| Minimum Supply Voltage | 1.71V | |
| ADCs | 12 Bit, 16 Bit | |
| Automotive Standard | No | |
| Program Memory Type | FLASH | |
| Instruction Set Architecture | Arm Cortex | |
| Number of Timers | 9 | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Product Type Wireless Microcontroller | ||
Series STM32WBA5xxx | ||
Package Type UFQFPN | ||
Mount Type Surface | ||
Pin Count 32 | ||
Device Core ARM Cortex M33 | ||
Data Bus Width 32bit | ||
Program Memory Size 1MB | ||
Maximum Clock Frequency 100MHz | ||
RAM Size 128kB | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Width 5 mm | ||
Number of Programmable I/Os 35 | ||
Height 7mm | ||
Analogue Comparators 2 | ||
Length 5mm | ||
Standards/Approvals ETSI EN 300 328, EN 300 440, ISO 7816, FCC CFR47 part 15, ECOPACK2, ARIB STD-T66 | ||
Minimum Supply Voltage 1.71V | ||
ADCs 12 Bit, 16 Bit | ||
Automotive Standard No | ||
Program Memory Type FLASH | ||
Instruction Set Architecture Arm Cortex | ||
Number of Timers 9 | ||
- COO (Country of Origin):
- CN
The STMicroelectronics Microcontroller is High-performance Arm Cortex-M33 32-bit RISC core, featuring a single-precision floating-point unit (FPU), supporting all the Arm single-precision data-processing instructions and all the data types. This core also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) that enhances the application security.
Support for external PA
Packet traffic arbitration
