STMicroelectronics, 32 bit ARM Cortex M4, STM32F301 Microcontroller, 72 MHz, 32kB FLASH, 32-Pin UFQFPN

RS 제품 번호:: 151-395
제조사 부품 번호:: STM32F301K6U6
제조업체:: STMicroelectronics

STMicroelectronics, 32 bit ARM Cortex M4, STM32F301 Microcontroller, 72 MHz, 32kB FLASH, 32-Pin UFQFPN

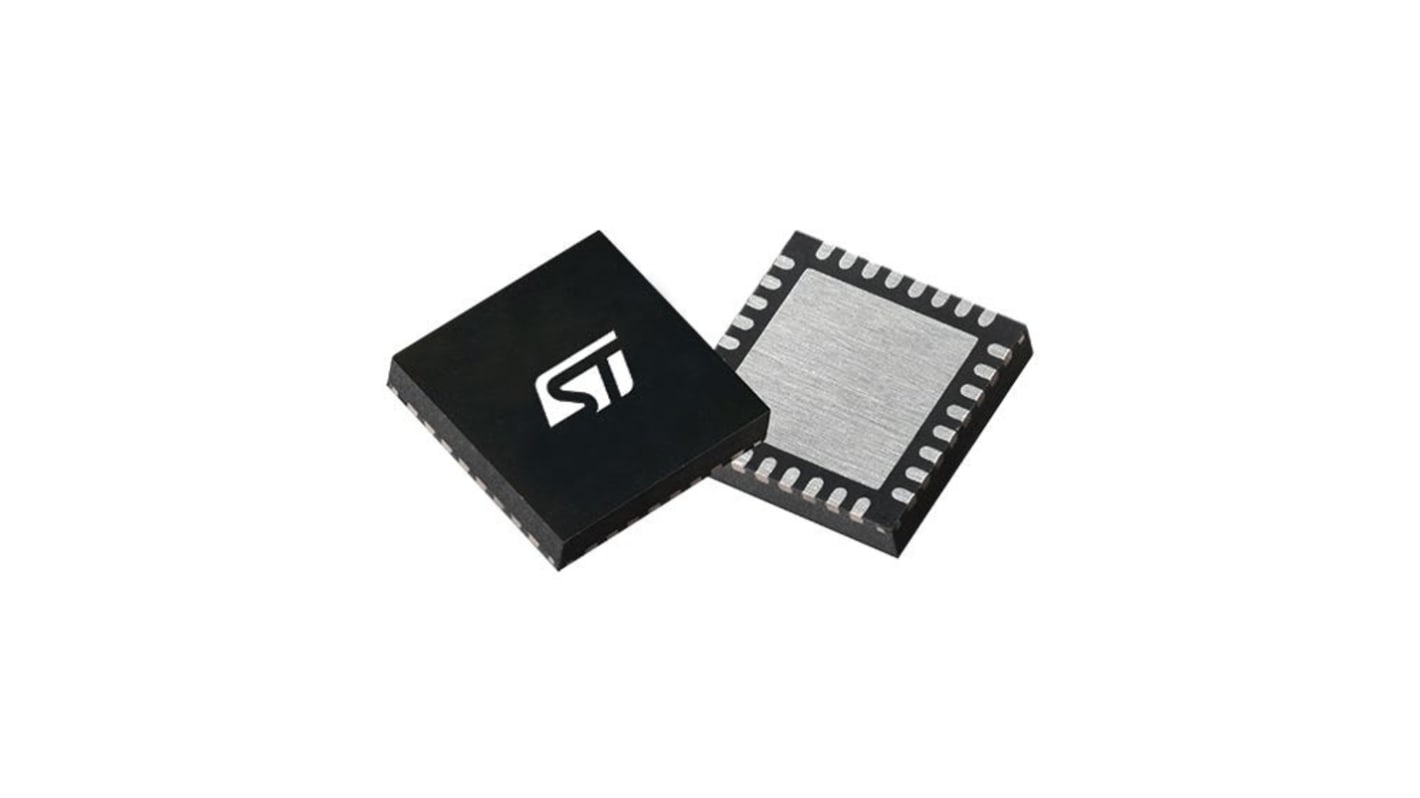

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 2 units)*

₩9,907.60

재고있음

추가로 2026년 1월 26일 부터 2,940 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
2 - 18	₩4,953.80	₩9,907.60
20 - 198	₩4,455.60	₩8,911.20
200 +	₩4,324.00	₩8,648.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 151-395
제조사 부품 번호:: STM32F301K6U6
제조업체:: STMicroelectronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Product Type	Microcontroller
	Series	STM32F301
	Package Type	UFQFPN
	Mount Type	Surface
	Pin Count	32
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	32kB
	Maximum Clock Frequency	72MHz
	RAM Size	16kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Power Dissipation Pd	540mW
	Number of Programmable I/Os	51
	DACs	12 bit
	Maximum Operating Temperature	80°C
	Height	5mm
	Length	5mm
	Standards/Approvals	RoHS
	Minimum Supply Voltage	2V
	Automotive Standard	No
	ADCs	12 bit
	Program Memory Type	FLASH
	Number of Timers	9

	모두 선택
	브랜드 STMicroelectronics
	Product Type Microcontroller
	Series STM32F301
	Package Type UFQFPN
	Mount Type Surface
	Pin Count 32
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 32kB
	Maximum Clock Frequency 72MHz
	RAM Size 16kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Power Dissipation Pd 540mW
	Number of Programmable I/Os 51
	DACs 12 bit
	Maximum Operating Temperature 80°C
	Height 5mm
	Length 5mm
	Standards/Approvals RoHS
	Minimum Supply Voltage 2V
	Automotive Standard No
	ADCs 12 bit
	Program Memory Type FLASH
	Number of Timers 9

Datasheet - STM32F301K6U6

COO (Country of Origin):: CN

The STMicroelectronics microcontroller , This devices offer a fast 12-bit ADC (5 Msps), three comparators, an operational amplifier, up to 18 capacitive sensing channels, one DAC channel, a low-power RTC, one general purpose 32-bit timer, one timer dedicated to motor control, and up to three general-purpose 16-bit timers, and one timer to drive the DAC. They also feature standard and Advanced communication interfaces: three I2Cs, up to three USARTs, up to two SPIs with multiplexed full-duplex I2S, and an infrared transmitter.

CRC calculation unit

Clock management

Interconnect Matrix

STMicroelectronics, 32 bit ARM Cortex M4, STM32F301 Microcontroller, 72 MHz, 32kB FLASH, 32-Pin UFQFPN
