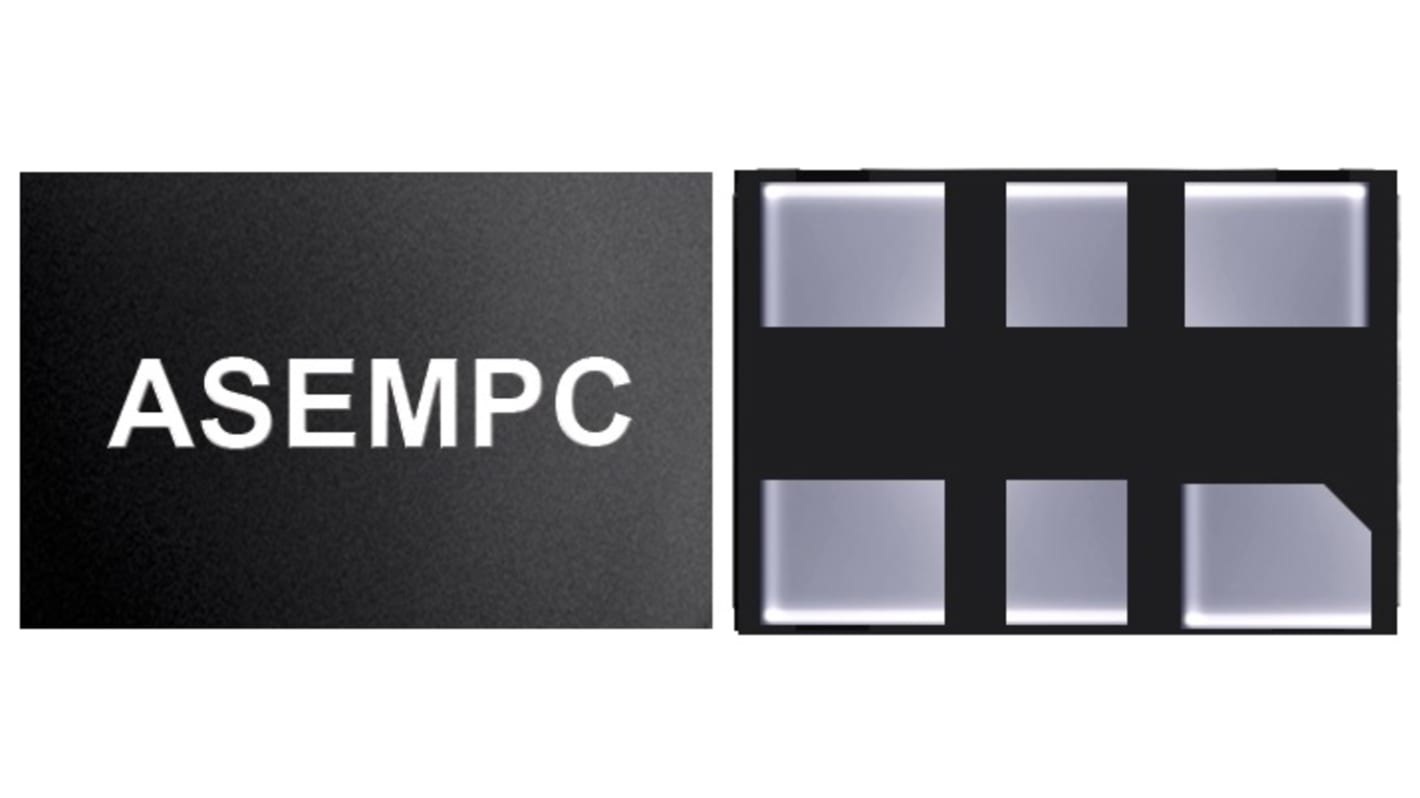

Abracon 25MHz Clock Oscillator MEMS Oscillator, 6-Pin QFN, ASEMPC-25.000MHZ-LR-T
- RS 제품 번호:
- 241-3104
- 제조사 부품 번호:
- ASEMPC-25.000MHZ-LR-T
- 제조업체:
- Abracon
대량 구매 할인 기용 가능
Subtotal (1 reel of 1000 units)*
₩3,444,160.00
일시적 품절
- 2026년 3월 11일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 1000 - 4000 | ₩3,444.16 | ₩3,444,724.00 |
| 5000 + | ₩3,376.48 | ₩3,375,916.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 241-3104
- 제조사 부품 번호:
- ASEMPC-25.000MHZ-LR-T
- 제조업체:
- Abracon
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Abracon | |
| Oscillator Type | Clock Oscillator | |
| Maximum Output Frequency | 25MHz | |
| Mounting Type | Surface Mount | |
| Output Level | CMOS | |
| Package Type | QFN | |
| Pin Count | 6 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Abracon | ||
Oscillator Type Clock Oscillator | ||
Maximum Output Frequency 25MHz | ||
Mounting Type Surface Mount | ||
Output Level CMOS | ||
Package Type QFN | ||
Pin Count 6 | ||
The Abracon MEMS clock oscillator is used in Storage Area Networks (SATA, SAS, Fiber Channel), Passive Optical Networks (EPON, 10G-EPON, GPON, 10G-PON), Ethernet (1G, 10GBASE-T,/KR/LR/SR, FCoE, PCI Express, Display port.
Frequency 25 MHz
Operating Temperature -40°C ∼ 85°C
Low Power Consumption for high speed communication
Exceptional Stability Over Temp. at -40 to +85°C, ±15ppm
Extended Automotive Grade Temp. stability at -55 to +125°C, ±25ppm
MIL-STD-883 shock and vibration compliant
Durable QFN Plastic Compact Packaging
Standby or Disable Tristate function
Low jitter (Period jitter RMS and Phase jitter RMS)
Operating Temperature -40°C ∼ 85°C
Low Power Consumption for high speed communication
Exceptional Stability Over Temp. at -40 to +85°C, ±15ppm
Extended Automotive Grade Temp. stability at -55 to +125°C, ±25ppm
MIL-STD-883 shock and vibration compliant
Durable QFN Plastic Compact Packaging
Standby or Disable Tristate function
Low jitter (Period jitter RMS and Phase jitter RMS)
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
