모두 선택	제품 정보	값
	브랜드	Microchip
	Oscillator Type	MEMS
	Maximum Output Frequency	150MHz
	Frequency Stability	±10ppm
	Mounting Type	Surface Mount
	Package Type	CDFN
	Pin Count	4
	Dimensions	3.2 x 2.5 x 0.85mm
	Length	3.2mm
	Width	2.5mm
	Height	0.85mm
	Maximum Operating Temperature	85°C
	Minimum Operating Temperature	-40°C
	Automotive Standard	AEC-Q100

	모두 선택
	브랜드 Microchip
	Oscillator Type MEMS
	Maximum Output Frequency 150MHz
	Frequency Stability ±10ppm
	Mounting Type Surface Mount
	Package Type CDFN
	Pin Count 4
	Dimensions 3.2 x 2.5 x 0.85mm
	Length 3.2mm
	Width 2.5mm
	Height 0.85mm
	Maximum Operating Temperature 85°C
	Minimum Operating Temperature -40°C
	Automotive Standard AEC-Q100

The DSC1001 is a silicon MEMS based CMOS oscillator offering excellent jitter and stability performance over a wide range of supply voltages and temperatures. The device operates from 1 to 150MHz with supply voltages between 1.8 to 3.3 Volts and temperature ranges up to -40ºC to 105ºC.The DSC1001 incorporates an all silicon resonator that is extremely robust and nearly immune to stress related fractures, common to crystal based oscillators.

Additional Features
Frequency Range: 1 to 150MHz
Exceptional Stability over Temperature
±10 PPM, ±20 PPM, ±25 PPM, ±50 PPM
Operating voltage of 1.7V to 3.6V
Operating Temperature Range
Ext. Industrial -40°C to 105°C
Industrial -40°C to 85°C
Ext. Commercial -20°C to 70°C
Commercial 0°C to 70°C
Low Operating and Standby Current:
5mA Operating (40MHz)
15μA Standby
Ultra Miniature Footprint:
2.5mm x 2.0mm x 0.85mm
3.2mm x 2.5mm x 0.85mm
5.0mm x 3.2mm x 0.85mm
7.0mm x 5.0mm x 0.85mm
Pb-free

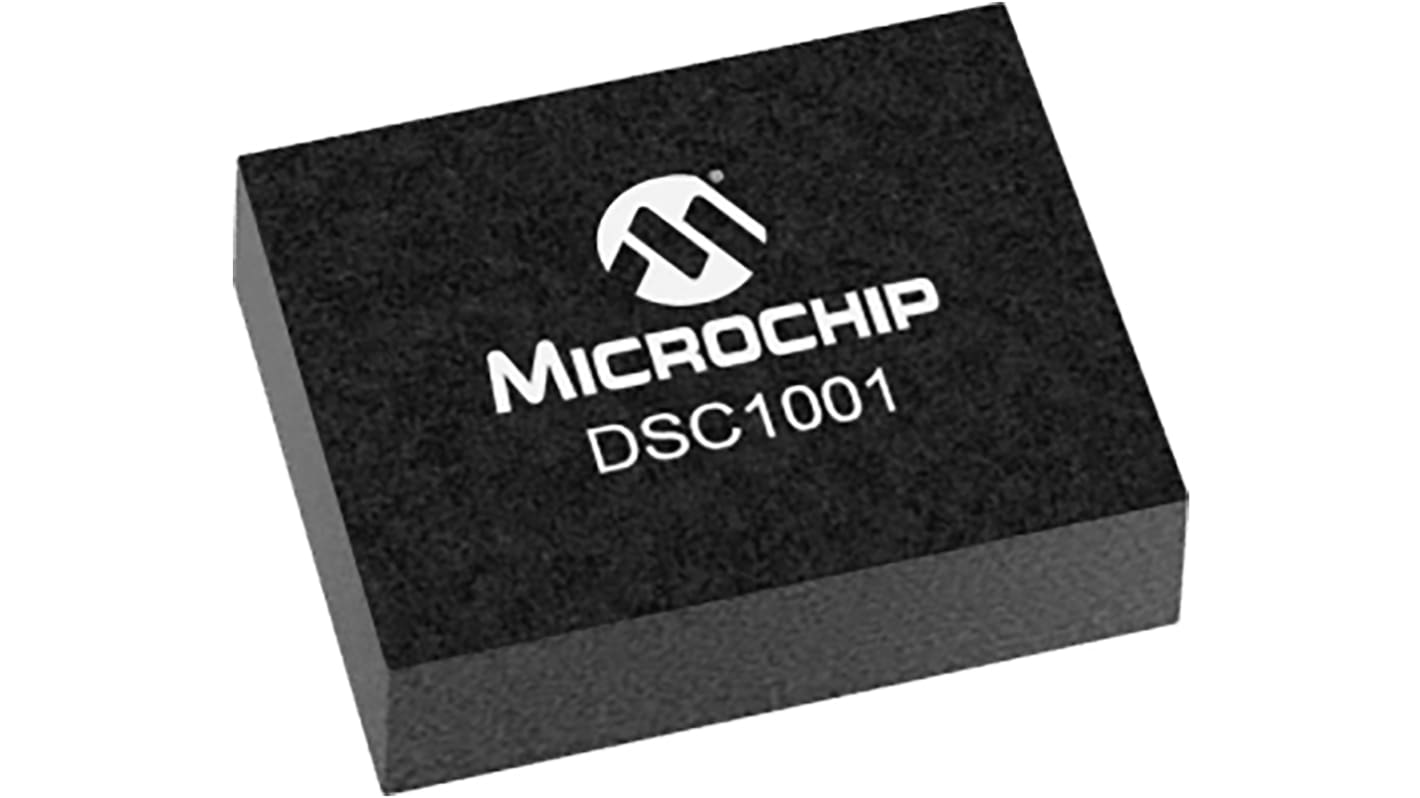

Microchip 150MHz MEMS Oscillator, 4-Pin CDFN, ±10ppm, DSC1001CI5-024.0000
