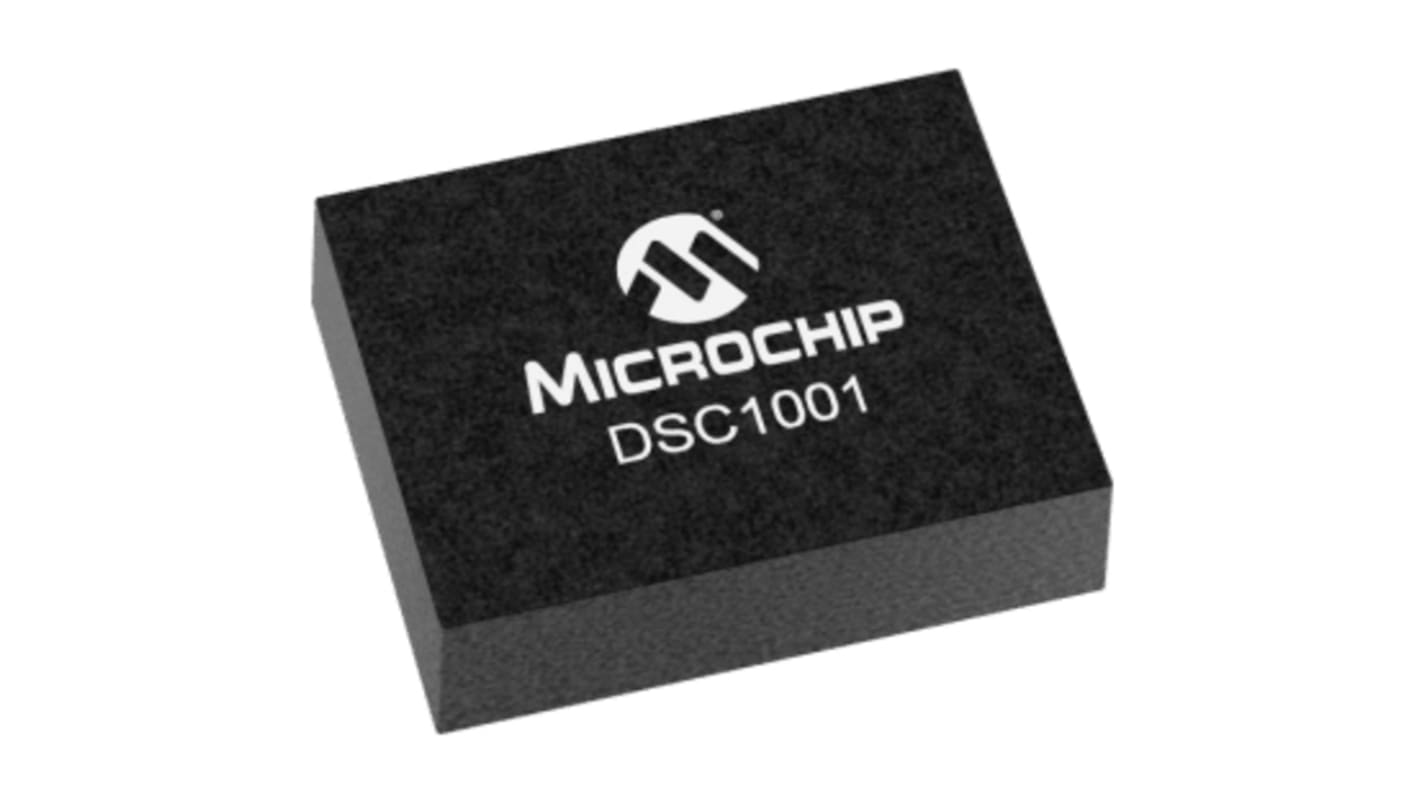

Microchip 24.576 MHz Oscillator, 4-Pin CDFN ±25 ppm
- RS 제품 번호:
- 162-3664
- 제조사 부품 번호:
- DSC1001CI2-024.5760
- 제조업체:
- Microchip
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 tube of 110 units)*
₩150,793.50
일시적 품절
- 2026년 9월 24일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Tube* |
|---|---|---|
| 110 - 110 | ₩1,370.85 | ₩150,814.95 |
| 220 - 330 | ₩1,343.55 | ₩147,811.95 |
| 440 + | ₩1,316.25 | ₩144,851.85 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 162-3664
- 제조사 부품 번호:
- DSC1001CI2-024.5760
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Product Type | Oscillator | |
| Maximum Output Frequency | 24.576MHz | |
| Frequency Stability | ±25 ppm | |
| Mount Type | Surface Mount | |
| Packaging | Tube | |
| Output Level | CMOS | |
| Package Type | CDFN | |
| Pin Count | 4 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Supply Voltage | 3.6V | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | EN, RoHS, JEDEC, ISO | |
| Length | 3.2mm | |
| Height | 0.85mm | |
| Minimum Operating Supply Voltage | 1.7V | |
| Series | DSC1001 | |
| Width | 2.5mm | |
| Automotive Standard | AEC-Q100 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Product Type Oscillator | ||
Maximum Output Frequency 24.576MHz | ||
Frequency Stability ±25 ppm | ||
Mount Type Surface Mount | ||
Packaging Tube | ||
Output Level CMOS | ||
Package Type CDFN | ||
Pin Count 4 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Supply Voltage 3.6V | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals EN, RoHS, JEDEC, ISO | ||
Length 3.2mm | ||
Height 0.85mm | ||
Minimum Operating Supply Voltage 1.7V | ||
Series DSC1001 | ||
Width 2.5mm | ||
Automotive Standard AEC-Q100 | ||
The DSC1001/3/4 is a silicon MEMS based CMOS family of oscillators that offers excellent jitter and stability performance over a wide range of supply voltages and temperatures. The device operates from 1 MHz to 150 MHz with supply voltages between 1.8 to 3.3 volts and temperature ranges up to –40°C to 105°C. The DSC1001/3/4 incorporate an all silicon resonator that is extremely robust and nearly immune to stress related fractures, common to crystal based oscillators.
Frequency Range:1 MHz to 150 MHz
Exceptional Stability over Temperature
Low Operating and Standby Current
6 mA Operating (1 MHz)
15 μA Standby (Max.)
Ultra Miniature Footprint
MIL-STD 883 Shock and Vibration Res
Pb Free
