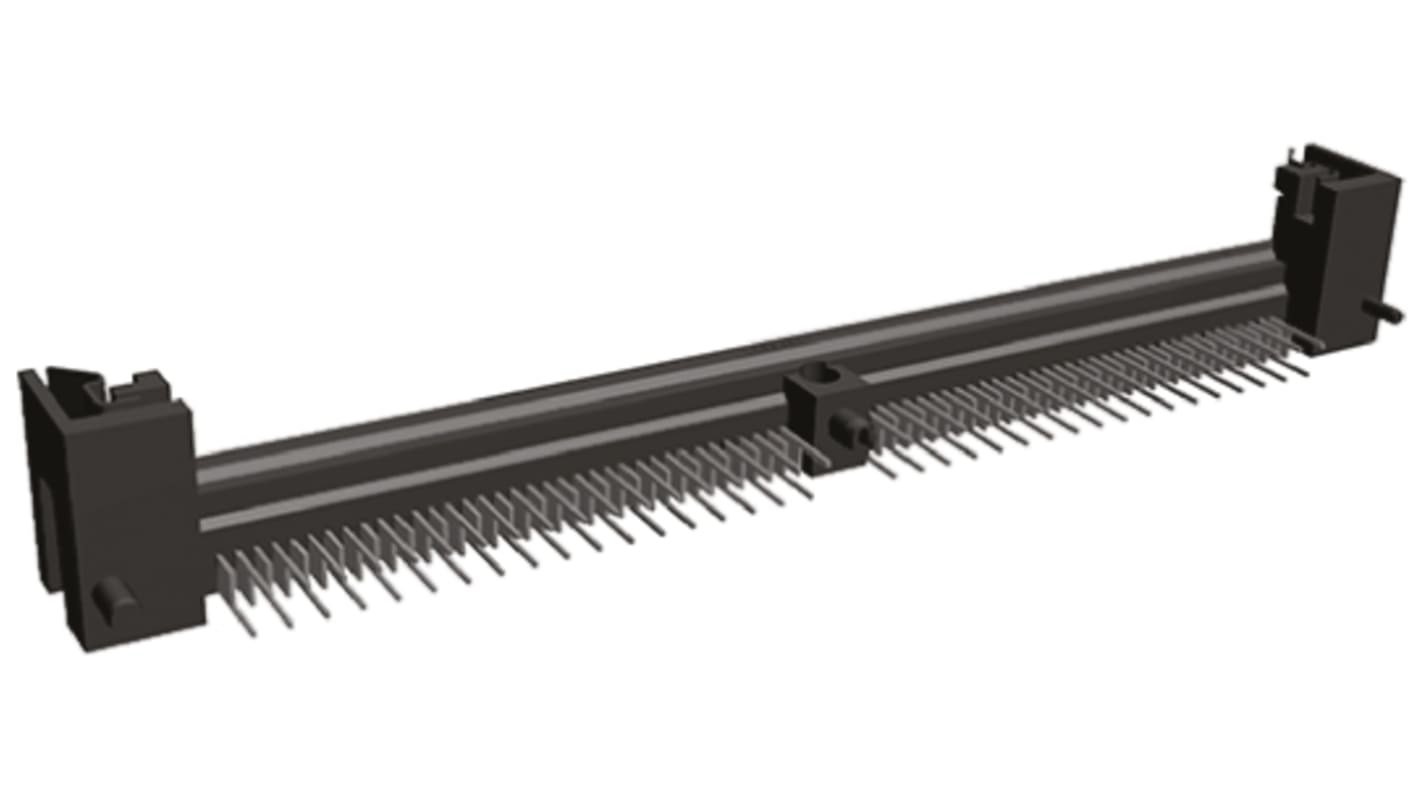

TE Connectivity 1.27 mm Pitch 72 Way, Right Angle Through Hole Mount Socket, 1A
- RS 제품 번호:
- 745-5738
- Distrelec 제품 번호:
- 303-06-724
- 제조사 부품 번호:
- 7-5382486-2
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 unit)*
₩20,982.00
재고있음
- 추가로 2026년 5월 11일 부터 14 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩20,982.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 745-5738
- Distrelec 제품 번호:
- 303-06-724
- 제조사 부품 번호:
- 7-5382486-2
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Product Type | Socket | |
| Memory Socket Type | SIMM | |
| Insertion/Removal Method | Cam-In | |
| Orientation | Right Angle | |
| Contact Material | Phosphor Bronze | |
| Current | 1A | |
| Contact Plating | Tin | |
| Number of Contacts | 72 | |
| Pitch | 1.27mm | |
| Mount Type | Through Hole | |
| Housing Material | Liquid Crystal Polymer | |
| Termination Type | Solder | |
| Latching | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Product Type Socket | ||
Memory Socket Type SIMM | ||
Insertion/Removal Method Cam-In | ||
Orientation Right Angle | ||
Contact Material Phosphor Bronze | ||
Current 1A | ||
Contact Plating Tin | ||
Number of Contacts 72 | ||
Pitch 1.27mm | ||
Mount Type Through Hole | ||
Housing Material Liquid Crystal Polymer | ||
Termination Type Solder | ||
Latching Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CN
TE Connectivity SIMM II Right Angle SIMM Sockets
SIMM II right angle SIMM memory card sockets with a 1.27mm centerline and a 6.35mm card slot height. These PCB through hole mount right angle SIMM sockets use a cam-in insertion method, have polarized posts to aid insertion onto the PC board and have anti-overstress latches to prevent breakage. A center post on these SIMM memory card sockets enables secure retention on the PCB.
Memory Card Connectors
