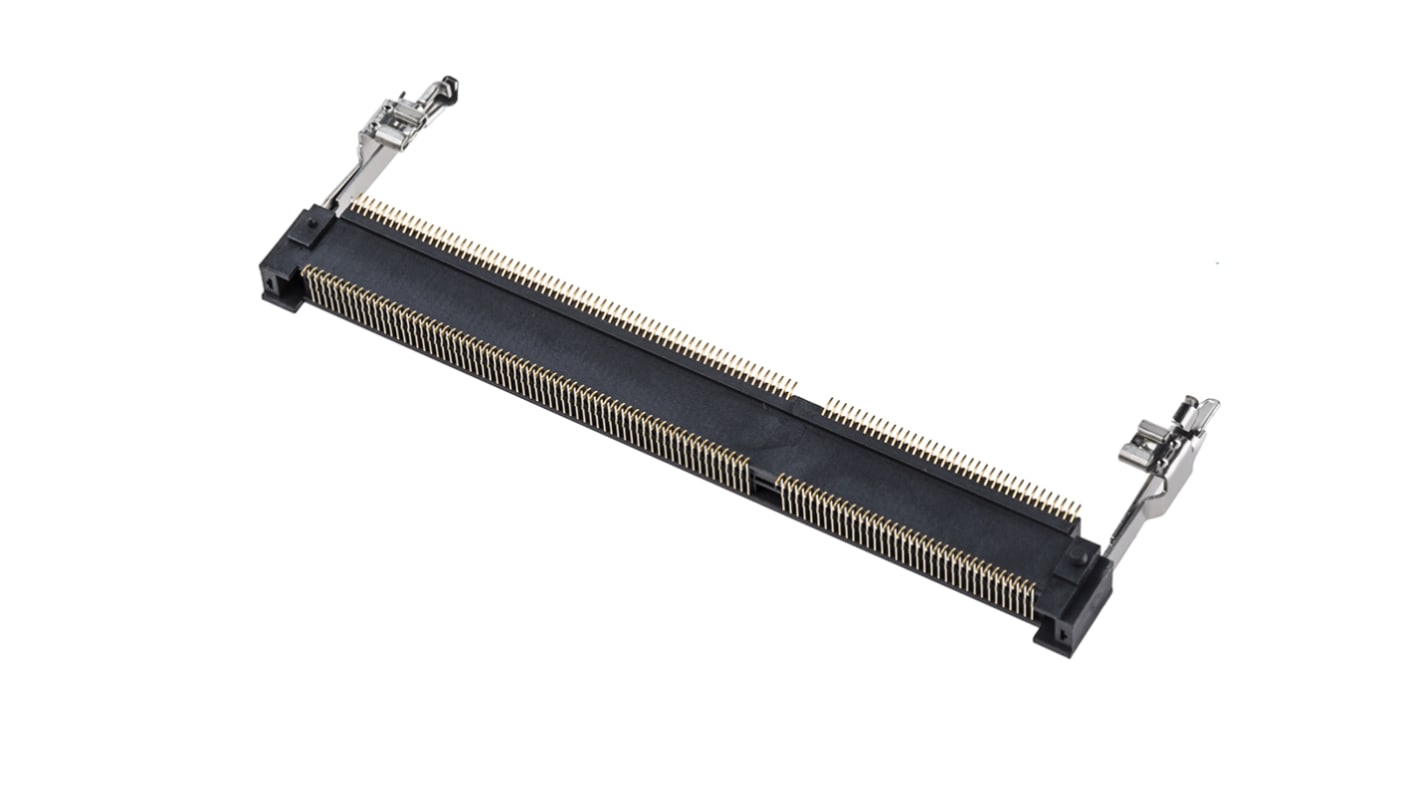

TE Connectivity 0.6mm Pitch 204 Way, Right Angle DDR3 DIMM Socket ,1.5 V
- RS 제품 번호:
- 719-8729P
- 제조사 부품 번호:
- 2-2013289-1
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal 50 units (supplied on a continuous strip)*
₩317,720.00
재고있음
- 2,529 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 50 - 99 | ₩6,354.40 |
| 100 + | ₩6,222.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 719-8729P
- 제조사 부품 번호:
- 2-2013289-1
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Memory Socket Type | DIMM Socket | |
| Gender | Female | |
| Body Orientation | Right Angle | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Number of Contacts | 204 | |
| Pitch | 0.6mm | |
| Termination Method | Solder | |
| Housing Material | Thermoplastic | |
| SDRAM Type | DDR3 | |
| Voltage Rating | 1.5 V | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Memory Socket Type DIMM Socket | ||
Gender Female | ||
Body Orientation Right Angle | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Number of Contacts 204 | ||
Pitch 0.6mm | ||
Termination Method Solder | ||
Housing Material Thermoplastic | ||
SDRAM Type DDR3 | ||
Voltage Rating 1.5 V | ||
TE Connectivity DDR3 SO DIMM Memory Sockets
Memory sockets designed for providing a reliable connection to SGRAM JEDEC SO DIMM (Small Outline Dual Inline Memory Modules) with a high-speed DDR3 data rate. These SO DIMM memory sockets feature mechanical voltage keying in standard or reverse format). The contact design of these SO DIMM DDR3 memory sockets protects against module stubbing. Cam-in module loading provides easy memory module insertion and locking ejector latches provide a secure module retention and enable easy release. Solder pegs are featured for a secure connection to the PCB.
Features and Benefits
• High speed DDR3 data rate
• Standard and reverse keying
• Latches for secure connection to memory module
• Mechanical voltage keying
• Anti-stubbing contact design
• Cam-In module loading
• Solder pegs for secure connection to PCB
• Standard and reverse keying
• Latches for secure connection to memory module
• Mechanical voltage keying
• Anti-stubbing contact design
• Cam-In module loading
• Solder pegs for secure connection to PCB
Applications
These DDR3 SO DIMM memory sockets provide a reliable interconnection to both standard and custom memory modules in a wide range of high-speed data applications. Applications include notebook PCs, printers, servers, workstations, storage and various communication memory applications
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Memory Card Connectors
