Amphenol Communications Solutions 0.5 mm Pitch 262 Way, Right Angle Surface Mount Mount DDR5 DIMM Socket ,250V ac, 500mA
- RS 제품 번호:
- 263-3683
- 제조사 부품 번호:
- 10157591-002RHLF
- 제조업체:
- Amphenol Communications Solutions

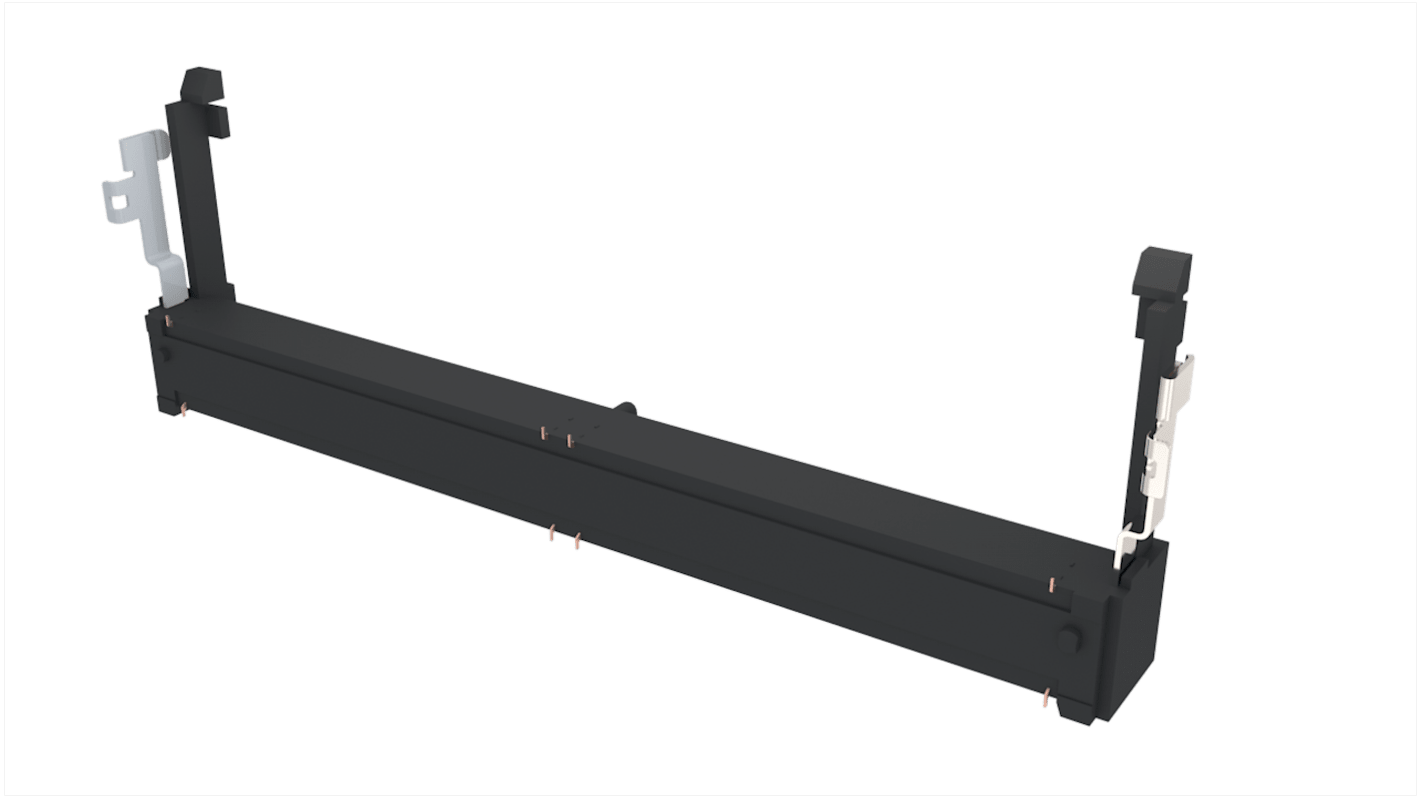

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 263-3683
- 제조사 부품 번호:
- 10157591-002RHLF
- 제조업체:
- Amphenol Communications Solutions
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Amphenol Communications Solutions | |
| Memory Socket Type | DIMM | |
| Product Type | DIMM Socket | |
| Insertion/Removal Method | Latched | |
| Orientation | Right Angle | |
| Current | 500mA | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Number of Contacts | 262 | |
| Pitch | 0.5mm | |
| Mount Type | Surface Mount | |
| Housing Material | Liquid Crystal Polymer | |
| SDRAM Type | DDR5 | |
| Latching | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Maximum Contact Resistance | 1mΩ | |
| Series | 10157591 | |
| Voltage | 250V ac | |
| 모두 선택 | ||
|---|---|---|
브랜드 Amphenol Communications Solutions | ||
Memory Socket Type DIMM | ||
Product Type DIMM Socket | ||
Insertion/Removal Method Latched | ||
Orientation Right Angle | ||
Current 500mA | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Number of Contacts 262 | ||
Pitch 0.5mm | ||
Mount Type Surface Mount | ||
Housing Material Liquid Crystal Polymer | ||
SDRAM Type DDR5 | ||
Latching Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Maximum Contact Resistance 1mΩ | ||
Series 10157591 | ||
Voltage 250V ac | ||
- COO (Country of Origin):
- CN
The Amphenol DDR5 SO-DIMM connectors deliver high speed and bandwidth. Being half the size of regular DIMMs, it consume lower power and promote better thermal management.
Withstands high temperature IR flow
LCP, halogen free, housing material
