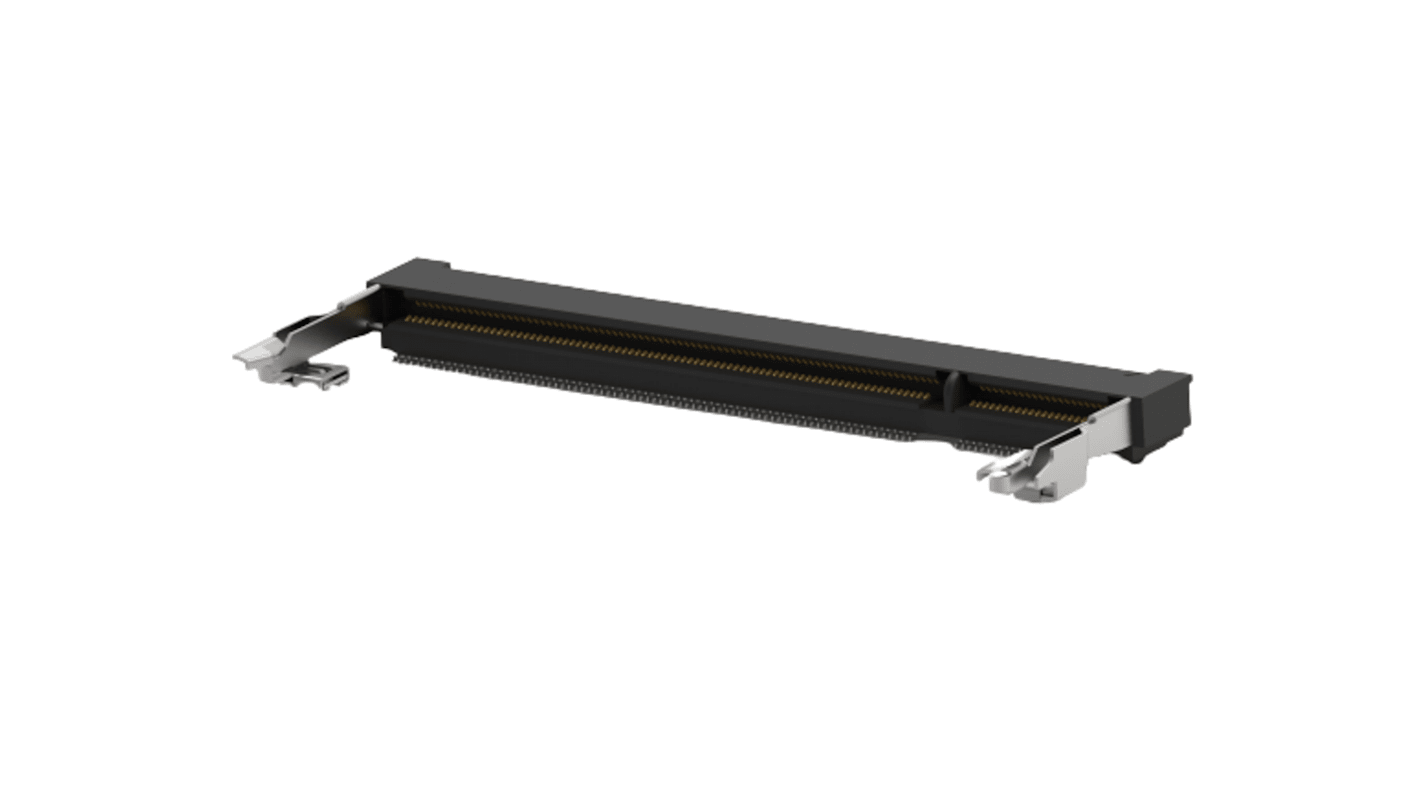

TE Connectivity 6 mm Pitch 200 Way, Right Angle Board Mount DIMM Socket ,2.5V, 5A
- RS 제품 번호:
- 255-7442
- 제조사 부품 번호:
- 1-1473005-1
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 tray of 20 units)*
₩209,360.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 | Per Tray* |
|---|---|---|
| 20 - 80 | ₩10,468.00 | ₩209,380.00 |
| 100 + | ₩10,156.00 | ₩203,100.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 255-7442
- 제조사 부품 번호:
- 1-1473005-1
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Memory Socket Type | DIMM | |
| Product Type | DIMM Socket | |
| Orientation | Right Angle | |
| Insertion/Removal Method | Cam-In | |
| Contact Material | Copper Alloy | |
| Current | 5A | |
| Contact Plating | Gold Flash | |
| Number of Contacts | 200 | |
| Pitch | 6mm | |
| Mount Type | Board | |
| Housing Material | High Temperature Thermoplastic | |
| Latching | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 85°C | |
| Row Spacing | 6.2mm | |
| Maximum Contact Resistance | 30mΩ | |
| Standards/Approvals | UL 94 V-0 | |
| Series | DDR2 SO DIMM | |
| Voltage | 2.5V | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Memory Socket Type DIMM | ||
Product Type DIMM Socket | ||
Orientation Right Angle | ||
Insertion/Removal Method Cam-In | ||
Contact Material Copper Alloy | ||
Current 5A | ||
Contact Plating Gold Flash | ||
Number of Contacts 200 | ||
Pitch 6mm | ||
Mount Type Board | ||
Housing Material High Temperature Thermoplastic | ||
Latching Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 85°C | ||
Row Spacing 6.2mm | ||
Maximum Contact Resistance 30mΩ | ||
Standards/Approvals UL 94 V-0 | ||
Series DDR2 SO DIMM | ||
Voltage 2.5V | ||
- COO (Country of Origin):
- CN
The TE Connectivity small outline dual inline memory module (SO DIMM) socket can enable reliable connection to standard memory modules. SO DIMM sockets are designed for the latest DDR4, as well as previous versions DDR3, DDR2, DDR, and SDRAM memory modules.
Double date rate(DDR)
Cable-to-Board connector system
Standard connector profile
Locking type ejector
