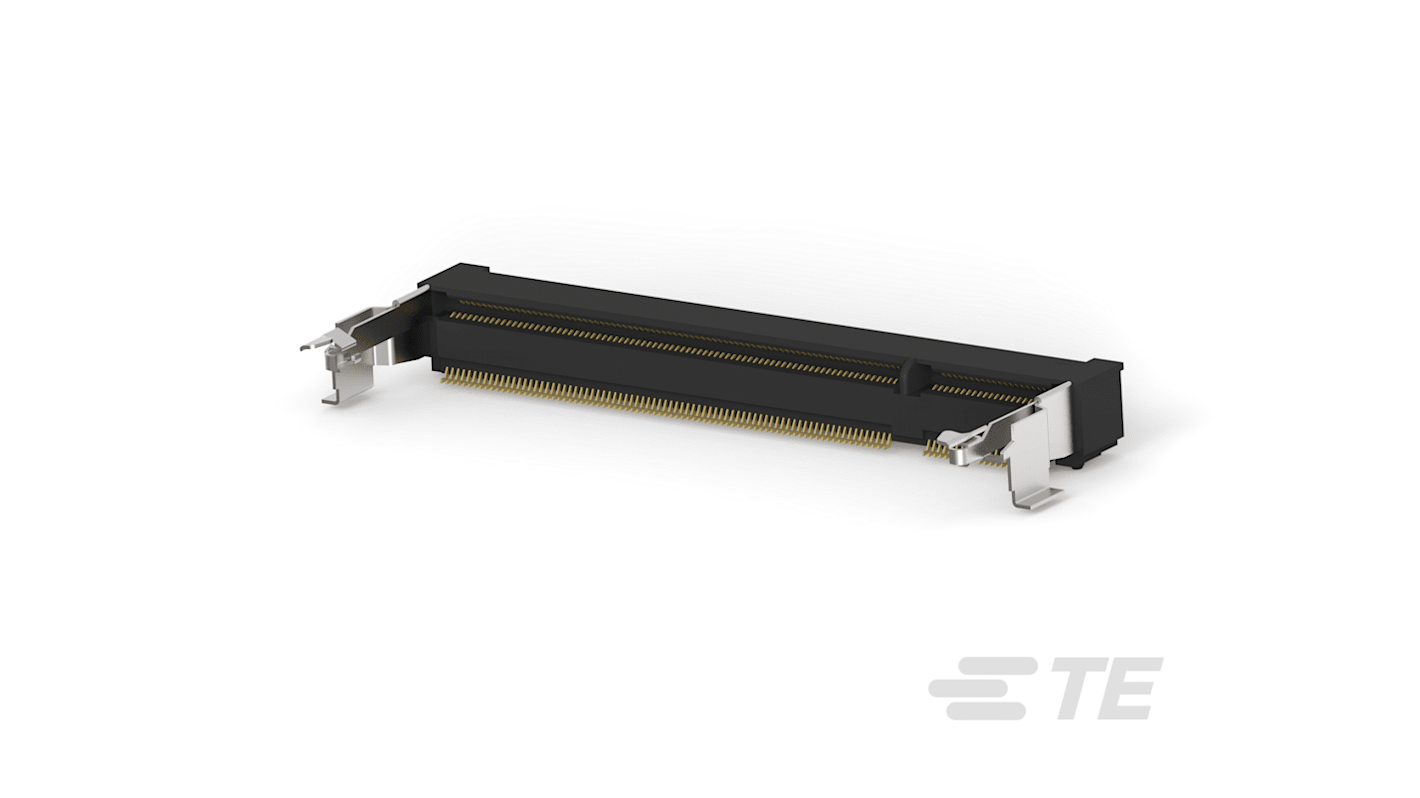

TE Connectivity 0.6 mm Pitch 200 Way, Right Angle Surface Mount Mount DDR2 DIMM Socket ,1.8V, 500mA
- RS 제품 번호:
- 217-5412
- Distrelec 제품 번호:
- 304-63-204
- 제조사 부품 번호:
- 1827341-4
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 217-5412
- Distrelec 제품 번호:
- 304-63-204
- 제조사 부품 번호:
- 1827341-4
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Memory Socket Type | SO, DIMM, DDR2 | |
| Product Type | DIMM Socket | |
| Insertion/Removal Method | Cam-In | |
| Orientation | Right Angle | |
| Current | 500mA | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Number of Contacts | 200 | |
| Pitch | 0.6mm | |
| Mount Type | Surface Mount | |
| Housing Material | Liquid Crystal Polymer | |
| SDRAM Type | DDR2 | |
| Termination Type | Solder | |
| Latching | No | |
| Minimum Operating Temperature | -55°C | |
| Row Spacing | 6.2mm | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL 94 V-0 | |
| Voltage | 1.8V | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Memory Socket Type SO, DIMM, DDR2 | ||
Product Type DIMM Socket | ||
Insertion/Removal Method Cam-In | ||
Orientation Right Angle | ||
Current 500mA | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Number of Contacts 200 | ||
Pitch 0.6mm | ||
Mount Type Surface Mount | ||
Housing Material Liquid Crystal Polymer | ||
SDRAM Type DDR2 | ||
Termination Type Solder | ||
Latching No | ||
Minimum Operating Temperature -55°C | ||
Row Spacing 6.2mm | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL 94 V-0 | ||
Voltage 1.8V | ||
The TE Connectivity DDR SODIMM, SO DIMM Sockets, Double Data Rate (DDR) 2, Surface Mount, with Cable-to-Board connector system.
Connector System - Cable-to-Board
Connector & Contact Terminates To - Printed Circuit Board
PCB Mounting Style - Surface Mount
