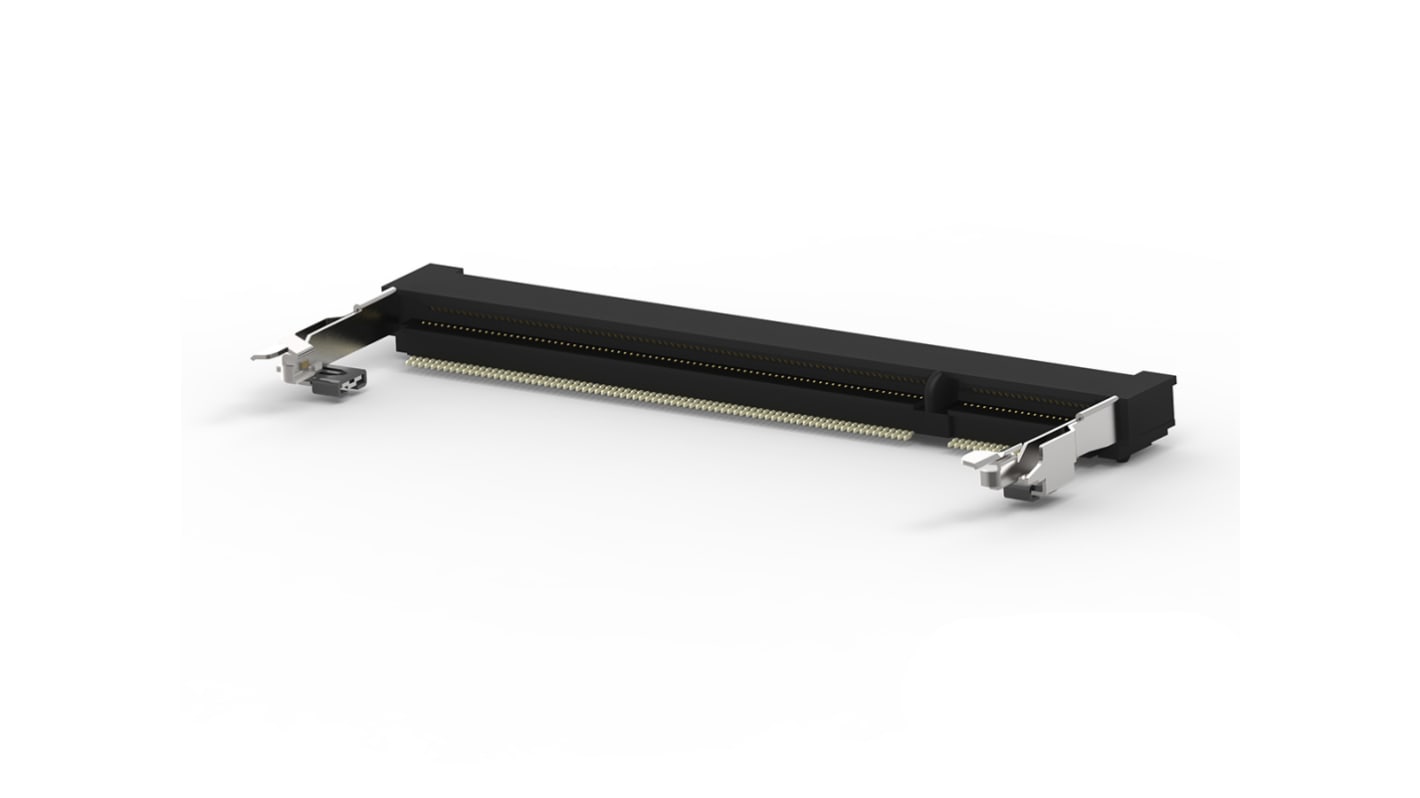

TE Connectivity 0.6mm Pitch 200 Way, Right Angle SMT Mount DDR1, DDR2 DIMM Socket ,1.8 V ,500.0mA
- RS 재고 번호:
- 185-9876
- 제조 부품 번호:
- 1565917-4
- 제조업체:
- TE Connectivity
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩11,599.60
재고있음
- 14 개 단위 배송 준비 완료
- 추가로 2025년 12월 22일 부터 1,128 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당 | 한팩당 |
|---|---|
| 1 - 37 | ₩11,599.60 |
| 38 - 74 | ₩11,355.20 |
| 75 + | ₩11,110.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 재고 번호:
- 185-9876
- 제조 부품 번호:
- 1565917-4
- 제조업체:
- TE Connectivity
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Memory Socket Type | DIMM Socket | |
| Gender | Female | |
| Body Orientation | Right Angle | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold Flash | |
| Number of Contacts | 200 | |
| Pitch | 0.6mm | |
| Mounting Type | Surface Mount | |
| Housing Material | Thermoplastic | |
| SDRAM Type | DDR1, DDR2 | |
| Latching | Yes | |
| Row Spacing | 6.2mm | |
| Current Rating | 500.0mA | |
| Maximum Operating Temperature | +85°C | |
| Series | DDR2 SO DIMM | |
| Minimum Operating Temperature | -55°C | |
| Voltage Rating | 1.8 V | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Memory Socket Type DIMM Socket | ||
Gender Female | ||
Body Orientation Right Angle | ||
Contact Material Copper Alloy | ||
Contact Plating Gold Flash | ||
Number of Contacts 200 | ||
Pitch 0.6mm | ||
Mounting Type Surface Mount | ||
Housing Material Thermoplastic | ||
SDRAM Type DDR1, DDR2 | ||
Latching Yes | ||
Row Spacing 6.2mm | ||
Current Rating 500.0mA | ||
Maximum Operating Temperature +85°C | ||
Series DDR2 SO DIMM | ||
Minimum Operating Temperature -55°C | ||
Voltage Rating 1.8 V | ||
TE Connectivity 1565917-4
DRAM Type=Double Data Rate (DDR), Connector System=Cable-to-Board, Profile=Standard, Row-to-Row Spacing=6.2 mm, Sealable=No, Center Key=None, Module Orientation=Right Angle, Number of Positions=200, Number of Rows=2, Keying=Standard, DRAM Voltage=1.8 V, SGRAM Voltage=1.8 V, Ejector Type=Locking, Contact Base Material=Copper Alloy, Contact Mating Area Plating Material=Gold Flash, Contact Current Rating (Max)=.5 A, Socket Type=Memory Card, Insertion Style=Cam-In, PCB Mount Retention Type=Solder Peg, PCB Mounting Style=Surface Mount, Connector Mounting Type=Board Mount, Centerline (Pitch)=.6 mm, Housing Color=Black, Stack Height=5.2 mm, Operating Temperature Range=-55 – 85 °C, Circuit Application=Power, UL Flammability Rating=UL 94V-0, Packaging Method=Tape & Reel, Packaging Quantity=150
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
