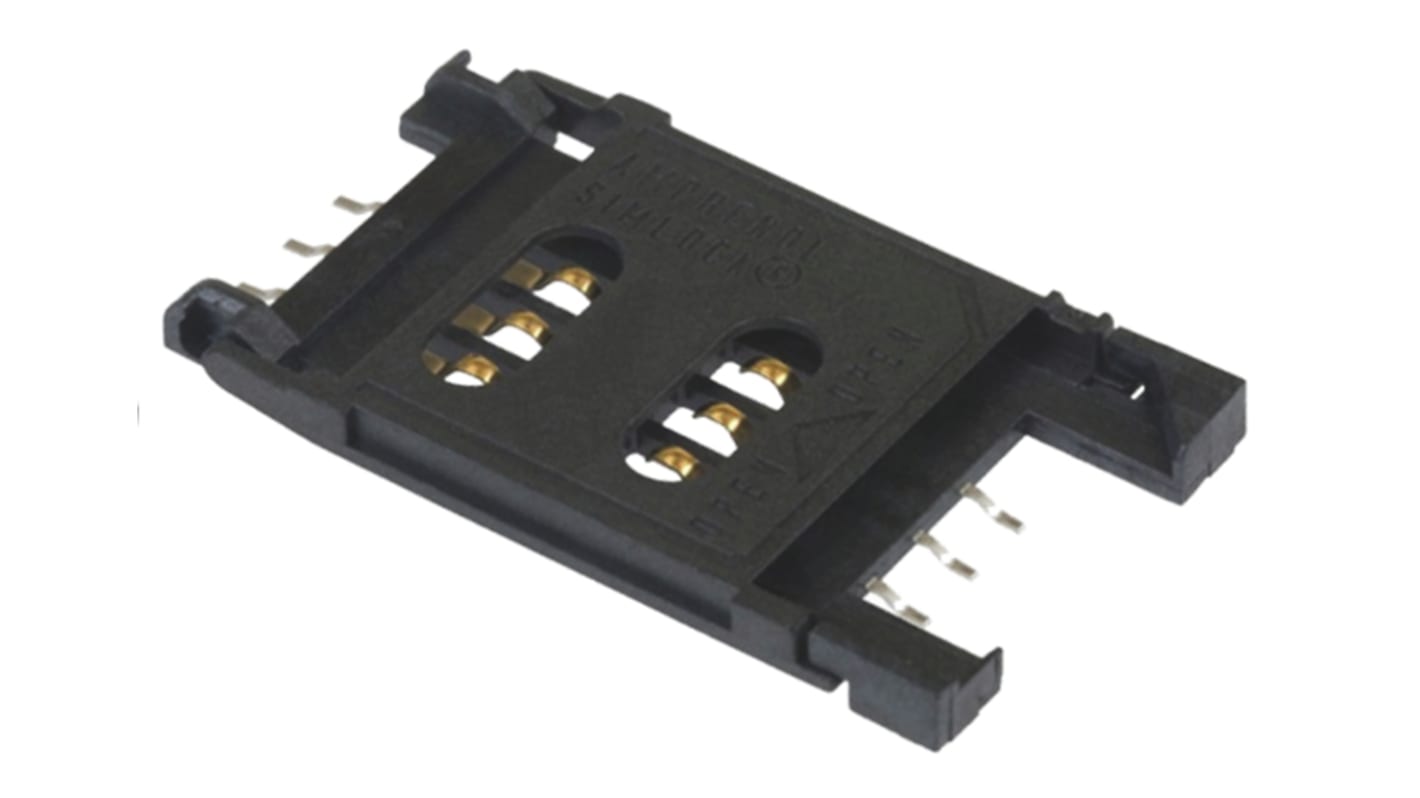

Hirose, ID1 6 Way Right Angle SIM Memory Card Connector, Solder
- RS 제품 번호:
- 828-1904
- 제조사 부품 번호:
- ID1A-6S-2.54SFB(81)
- 제조업체:
- Hirose
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 828-1904
- 제조사 부품 번호:
- ID1A-6S-2.54SFB(81)
- 제조업체:
- Hirose
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Hirose | |
| Product Type | Memory Card Connector | |
| Card Type | SIM | |
| Gender | Female | |
| Number of Contacts | 6 | |
| Number of Rows | 1 | |
| Pitch | 2.54mm | |
| Orientation | Right Angle | |
| Mount Type | Surface | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Housing Material | Synthetic Resin | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 80°C | |
| Series | ID1 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Hirose | ||
Product Type Memory Card Connector | ||
Card Type SIM | ||
Gender Female | ||
Number of Contacts 6 | ||
Number of Rows 1 | ||
Pitch 2.54mm | ||
Orientation Right Angle | ||
Mount Type Surface | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Housing Material Synthetic Resin | ||
Termination Type Solder | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 80°C | ||
Series ID1 | ||
- COO (Country of Origin):
- JP
Hirose ID1 Series SIM Card Socket Connectors
ID1 series SIM card sockets with a slim, miniature design. These ID1 series SIM card sockets feature a slide lock system which allows the SIM card to be inserted easily and locked securely in place. A polarizing boss prevents the SIM card from being inserted incorrectly. These ID1 series SIM card sockets are suitable for use in portable terminals and equipment that use GSM Standard (11.11) plug-in SIM cards
