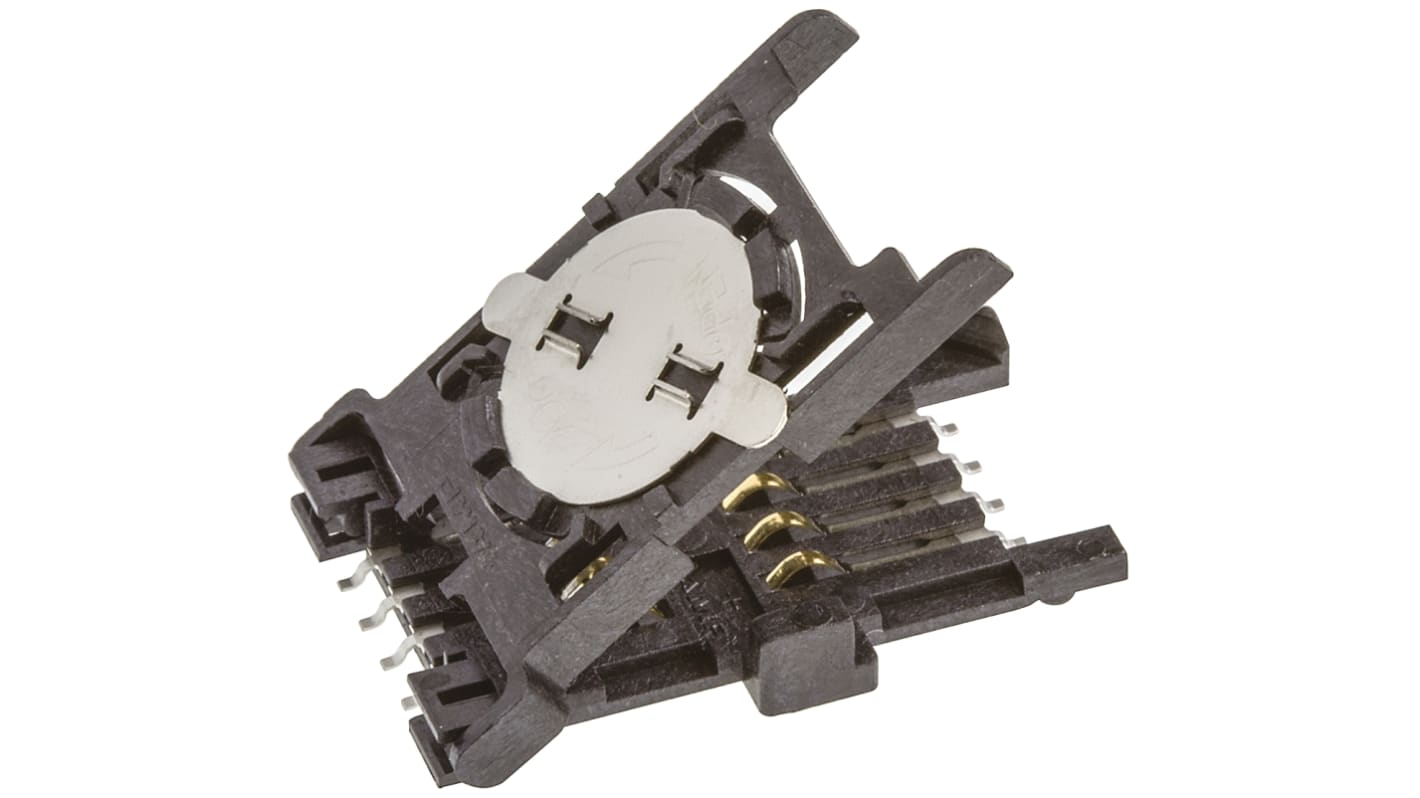

TE Connectivity 8 Way SAM, SIM Memory Card Connector, Solder
- RS 제품 번호:
- 542-1777
- Distrelec 제품 번호:
- 301-29-775
- 제조사 부품 번호:
- 5145299-2
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩7,040.00
재고있음
- 22 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 249 | ₩7,040.00 |
| 250 - 499 | ₩6,900.00 |
| 500 + | ₩6,740.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 542-1777
- Distrelec 제품 번호:
- 301-29-775
- 제조사 부품 번호:
- 5145299-2
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Card Type | SAM, SIM | |
| Product Type | Memory Card Connector | |
| Gender | Male | |
| Number of Contacts | 8 | |
| Number of Rows | 2 | |
| Pitch | 2.54mm | |
| Orientation | Straight | |
| Mount Type | Surface | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold over Nickel | |
| Housing Material | Thermoplastic | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 90°C | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Card Type SAM, SIM | ||
Product Type Memory Card Connector | ||
Gender Male | ||
Number of Contacts 8 | ||
Number of Rows 2 | ||
Pitch 2.54mm | ||
Orientation Straight | ||
Mount Type Surface | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold over Nickel | ||
Housing Material Thermoplastic | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 90°C | ||
Standards/Approvals No | ||
SAM Connector, twist-lock
Accepts GSM 11.11 SIM cards
SMT mounting
Phosphor bronze contacts with duplex gold over nickel-plating on mating area
High temperature thermoplastic housing
Stainless steel locking disk
TE Connectivity Smart Card Connectors
Designed to interface with IC cards according to ISO7816-7813, these connectors have contacts which cover the normal positions of up to 16 connection pads per card.
Friction version:
