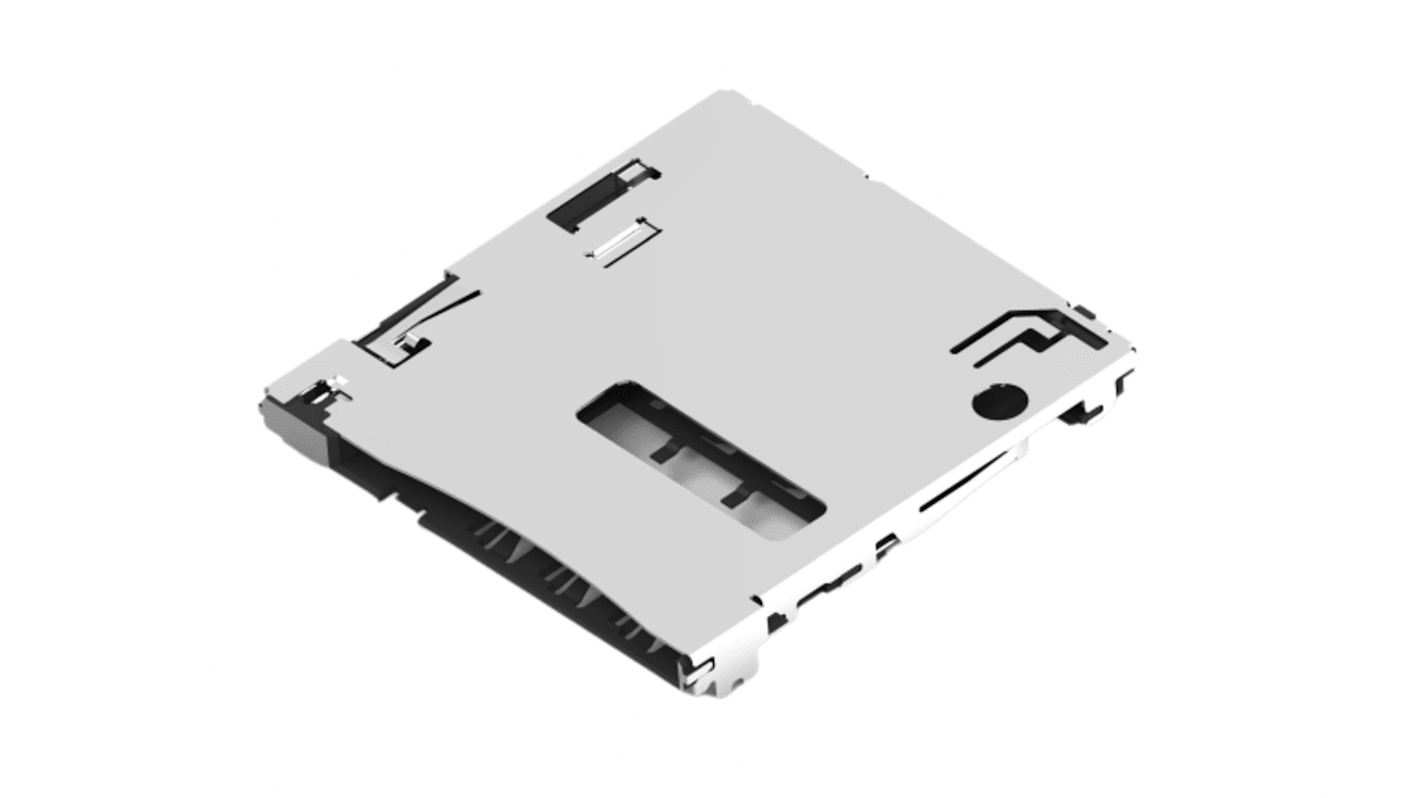

TE Connectivity 6 Way Push-Push SIM SIM Card Connector, Solder
- RS 제품 번호:
- 255-7466
- Distrelec 제품 번호:
- 304-53-937
- 제조사 부품 번호:
- 2822541-1
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 reel of 1450 units)*
₩2,844,900.00
일시적 품절
- 2026년 10월 15일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 1450 + | ₩1,962.00 | ₩2,845,770.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 255-7466
- Distrelec 제품 번호:
- 304-53-937
- 제조사 부품 번호:
- 2822541-1
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Product Type | SIM Card Connector | |
| Card Type | SIM | |
| Insertion/Removal Method | Push-Push | |
| Number of Contacts | 6 | |
| Pitch | 2.54mm | |
| Mount Type | Surface | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold Plating | |
| Termination Type | Solder | |
| Housing Material | Thermoplastic Resin | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | MIL STD-202, IEC, EIA | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Product Type SIM Card Connector | ||
Card Type SIM | ||
Insertion/Removal Method Push-Push | ||
Number of Contacts 6 | ||
Pitch 2.54mm | ||
Mount Type Surface | ||
Contact Material Copper Alloy | ||
Contact Plating Gold Plating | ||
Termination Type Solder | ||
Housing Material Thermoplastic Resin | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals MIL STD-202, IEC, EIA | ||
- COO (Country of Origin):
- CN
The TE Connectivity Push SIM card connectors for Micro and Mini SIM cards is incorporated with this card insertion and ejection style that includes a mechanism to push out the SIM card, this is very useful for applications where the end user is needed to insert and extract the card equipment via a panel cutout.
Connectors optimized for reliability
Spherical contact points improve normal force
Pre-loaded contact
Anti-retention features in the contacts
