Molex, 503960 6 Way Horizontal Push-Push Micro SIM SIM Card Connector, Solder

RS 제품 번호:: 205-6029
제조사 부품 번호:: 5039600696
제조업체:: Molex

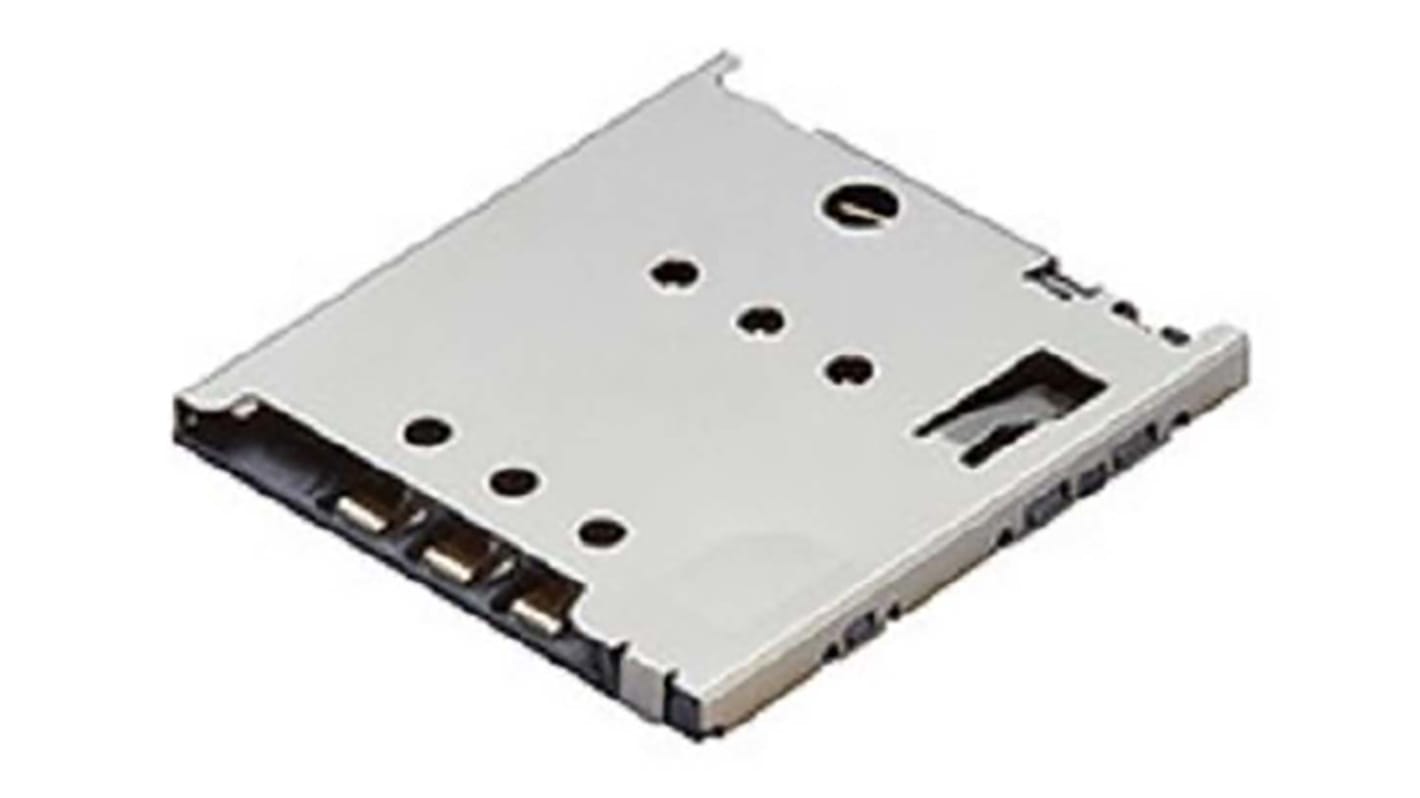

Molex, 503960 6 Way Horizontal Push-Push Micro SIM SIM Card Connector, Solder

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 tape of 5 units)*

₩22,720.00

1,125 개 단위 배송 준비 완료
추가로 2026년 9월 04일 부터 205 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tape*
5 - 395	₩4,544.00	₩22,720.00
400 - 795	₩4,436.00	₩22,180.00
800 +	₩4,352.00	₩21,760.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 205-6029
제조사 부품 번호:: 5039600696
제조업체:: Molex

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Molex
	Product Type	SIM Card Connector
	Card Type	Micro SIM
	Insertion/Removal Method	Push-Push
	Gender	Female
	Number of Contacts	6
	Number of Rows	2
	Orientation	Horizontal
	Mount Type	Surface
	Contact Material	Copper Alloy
	Contact Plating	Gold
	Housing Material	Stainless Steel
	Termination Type	Solder
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	No
	Series	503960

	모두 선택
	브랜드 Molex
	Product Type SIM Card Connector
	Card Type Micro SIM
	Insertion/Removal Method Push-Push
	Gender Female
	Number of Contacts 6
	Number of Rows 2
	Orientation Horizontal
	Mount Type Surface
	Contact Material Copper Alloy
	Contact Plating Gold
	Housing Material Stainless Steel
	Termination Type Solder
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 85°C
	Standards/Approvals No
	Series 503960

Molex SIM Card Connector, Micro SIM Card Type, Push-Push-Insertion/Removal Method - 5039600696

This micro-SIM card connector is designed for optimal performance in electronic applications. It features a compact height of 1.42mm and a pitch of 1.00mm, making it an efficient choice for micro SIM card sockets. With its push-push mechanism, this surface mount connector is equipped with six circuits for reliable connectivity while housed in durable liquid crystal polymer and stainless steel components.

Features & Benefits

• Push-push mechanism simplifies card insertion and removal

• Durable construction with liquid crystal polymer housing

• High-temperature performance from -25°C to +85°C

• Gold plating ensures excellent conductivity and corrosion resistance

• Accurate card positioning with a set number of circuits

• 2000 mating cycles for long-lasting reliability

Applications

• Utilised in mobile devices for data transmission

• Integrated into smart wearable technology

• Effective in automotive electronics for communication systems

• Used in industrial automation for connectivity solutions

What are the benefits of using this type of connector over traditional options?

This type of connector offers a compact design that saves space while providing reliable push-push functionality, facilitating easy card handling in various environments.

How does the choice of materials enhance its performance?

The use of copper alloy for contacts ensures excellent electrical performance, while the gold plating provides resistance to corrosion, extending the operational lifespan and reliability.

What is the maximum current and voltage that can be handled?

This connector can handle a maximum current of 0.5A per contact and is rated for a maximum voltage of 10V AC (RMS)/DC, suitable for a
