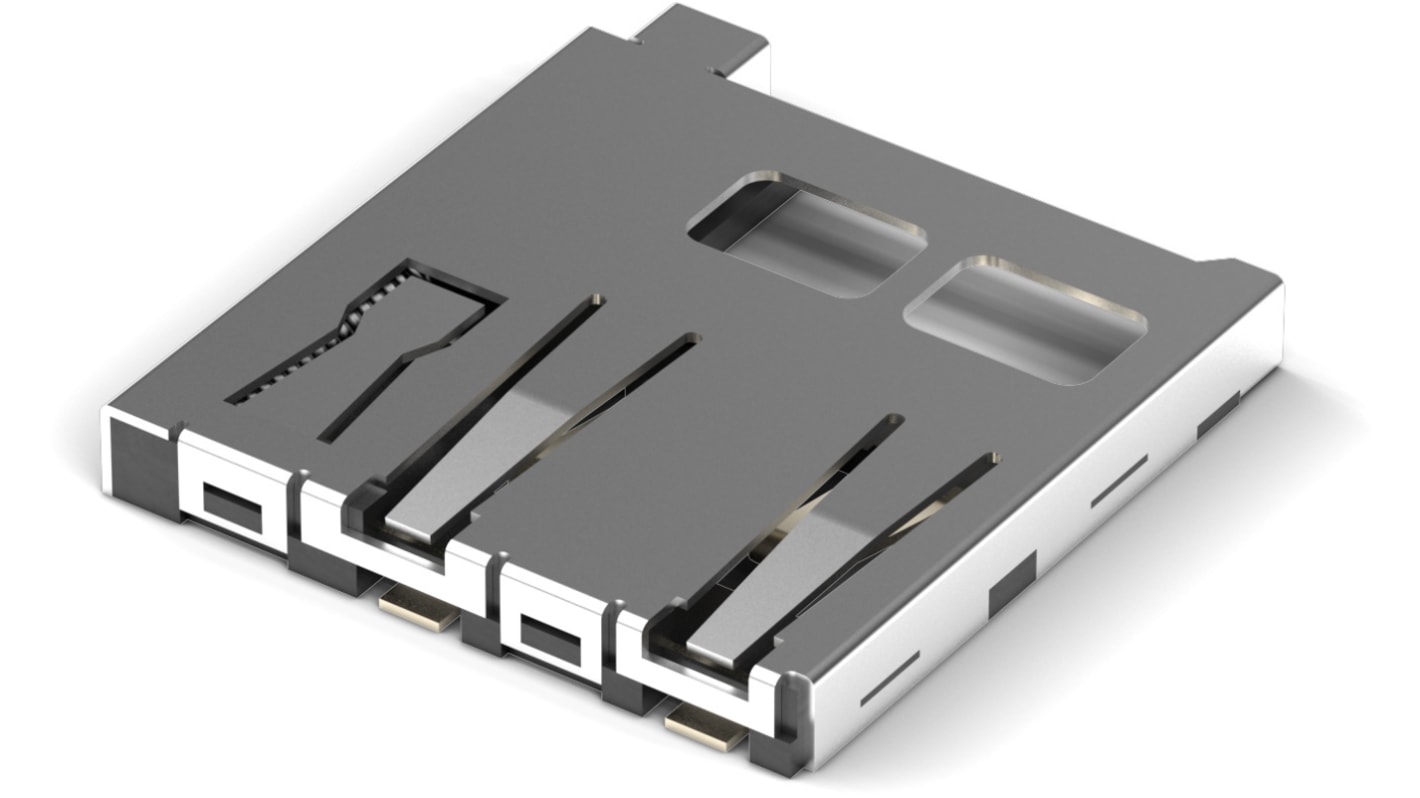

Wurth Elektronik, WR-CRD 8 Way Horizontal Push-Push MicroSD Card Connector, Solder
- RS 제품 번호:
- 201-8977
- 제조사 부품 번호:
- 693071020811
- 제조업체:
- Wurth Elektronik
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 pack of 5 units)*
₩31,720.00
재고있음
- 150 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 220 | ₩6,344.00 | ₩31,720.00 |
| 225 - 445 | ₩6,252.00 | ₩31,260.00 |
| 450 + | ₩6,116.00 | ₩30,580.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 201-8977
- 제조사 부품 번호:
- 693071020811
- 제조업체:
- Wurth Elektronik
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Wurth Elektronik | |
| Product Type | Card Connector | |
| Card Type | MicroSD | |
| Gender | Female | |
| Insertion/Removal Method | Push-Push | |
| Number of Contacts | 8 | |
| Number of Rows | 1 | |
| Pitch | 1.1mm | |
| Orientation | Horizontal | |
| Mount Type | Surface | |
| Contact Material | Copper Alloy | |
| Contact Plating | Selective Gold | |
| Termination Type | Solder | |
| Housing Material | Liquid Crystal Polymer | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Series | WR-CRD | |
| 모두 선택 | ||
|---|---|---|
브랜드 Wurth Elektronik | ||
Product Type Card Connector | ||
Card Type MicroSD | ||
Gender Female | ||
Insertion/Removal Method Push-Push | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Pitch 1.1mm | ||
Orientation Horizontal | ||
Mount Type Surface | ||
Contact Material Copper Alloy | ||
Contact Plating Selective Gold | ||
Termination Type Solder | ||
Housing Material Liquid Crystal Polymer | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Series WR-CRD | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik Micro SD Card Connector Push & Push 8 pins is of push and push type. The working volateg is 30 V (AC); 100 V (AC) whereas the withstanding voltage is 500 V (AC). The contact resistance ranges between 100 mO to 500 mO. It has a copper alloy contact material and 1 u' on contact area; Selective Gold as its contact plating whereas the contact type is stamped.
Insulator Material: LCP
Insulator Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
RoHS compliant
Operating Temperature: -25 up to +85 °C; -40 up to +85 °C
