Molex, 47388 6 Way Hinged SIM Memory Card Connector, Solder

RS 제품 번호:: 179-6479
제조사 부품 번호:: 47388-2001-TR200
제조업체:: Molex

Molex, 47388 6 Way Hinged SIM Memory Card Connector, Solder

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 reel of 200 units)*

₩799,200.00

일시적 품절

2026년 11월 02일 부터 400 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	릴당*
200 - 800	₩3,996.00	₩799,360.00
1000 - 1800	₩3,916.00	₩783,360.00
2000 +	₩3,838.00	₩767,680.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 179-6479
제조사 부품 번호:: 47388-2001-TR200
제조업체:: Molex

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Molex
	Card Type	SIM
	Product Type	Memory Card Connector
	Insertion/Removal Method	Hinged
	Gender	Female
	Number of Contacts	6
	Pitch	2.54mm
	Orientation	Straight
	Mount Type	Surface
	Contact Material	Copper Alloy
	Contact Plating	Tin
	Minimum Operating Temperature	-40°C
	Housing Material	Thermoplastic
	Termination Type	Solder
	Maximum Operating Temperature	85°C
	Standards/Approvals	No
	Series	47388

	모두 선택
	브랜드 Molex
	Card Type SIM
	Product Type Memory Card Connector
	Insertion/Removal Method Hinged
	Gender Female
	Number of Contacts 6
	Pitch 2.54mm
	Orientation Straight
	Mount Type Surface
	Contact Material Copper Alloy
	Contact Plating Tin
	Minimum Operating Temperature -40°C
	Housing Material Thermoplastic
	Termination Type Solder
	Maximum Operating Temperature 85°C
	Standards/Approvals No
	Series 47388

COO (Country of Origin):: CN

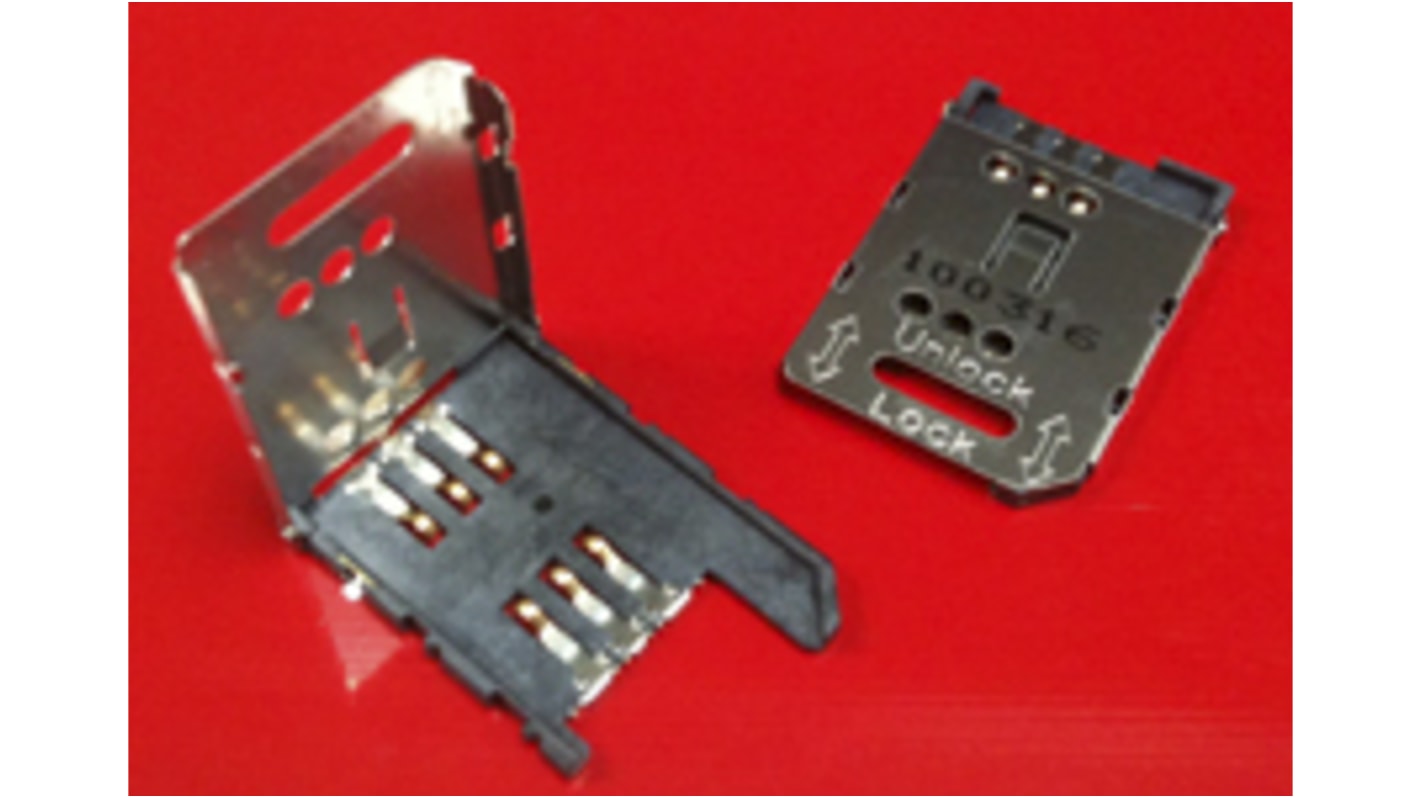

Molex Memory Card Connector, 6 Contacts, 2.54mm Pitch - 47388-2001-TR200

This memory card connector is designed for SIM cards and features a female configuration with a hinged style. With six circuits and a 2.54mm pitch, this surface mount connector offers reliable connections in compact electronic designs. Made from a high-temperature thermoplastic housing, it ensures durability and thermal efficiency, making it ideal for demanding applications.

Features & Benefits

• Designed for surface mounting, facilitating easier integration onto PCBs

• Robust copper alloy construction for enhanced conductivity and durability

• Tin plating offers superior corrosion resistance and reliability

• Operates effectively within a temperature range of -40°C to +85°C

• Features PCB retention that secures the connector during use

• Supports a maximum current rating of 0.5A per contact for efficient operation

Applications

• Utilised in mobile devices for SIM card connections

• Integrated into embedded systems for telecommunications modules

• Applied in consumer electronics for flexible card access

• Effective in automation solutions that require compact connectors

What are the advantages of the 2.54mm pitch design for this connector?

The 2.54mm pitch design allows for compatibility with a wide

How durable is this connector when subjected to repeated use?

It is designed to withstand up to 5000 mating cycles, ensuring longevity and reduced maintenance in applications requiring frequent disconnections and reconnections.

Can it be used in devices exposed to high temperatures?

Yes, it operates effectively within a temperature
