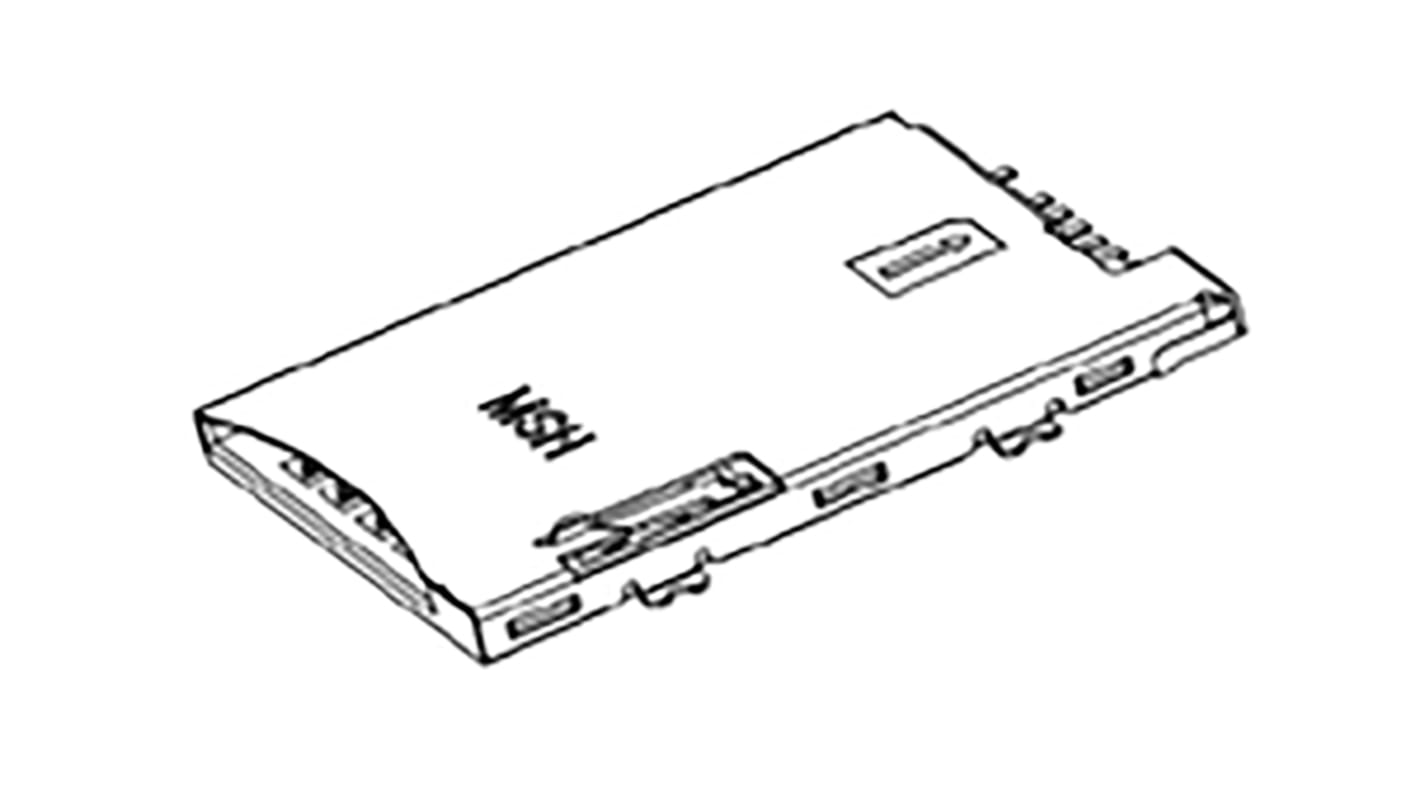

Molex, 47603 8 Way Right Angle Push-Push SIM Memory Card Connector, Solder
- RS 제품 번호:
- 178-9377
- Distrelec 제품 번호:
- 304-57-242
- 제조사 부품 번호:
- 47603-0001
- 제조업체:
- Molex
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 액세스할 수 없는 재고 정보
- RS 제품 번호:
- 178-9377
- Distrelec 제품 번호:
- 304-57-242
- 제조사 부품 번호:
- 47603-0001
- 제조업체:
- Molex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Molex | |
| Product Type | Memory Card Connector | |
| Card Type | SIM | |
| Insertion/Removal Method | Push-Push | |
| Gender | Male | |
| Number of Contacts | 8 | |
| Number of Rows | 1 | |
| Pitch | 1.27mm | |
| Orientation | Right Angle | |
| Mount Type | Surface | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Housing Material | Thermoplastic | |
| Minimum Operating Temperature | -20°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Series | 47603 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Molex | ||
Product Type Memory Card Connector | ||
Card Type SIM | ||
Insertion/Removal Method Push-Push | ||
Gender Male | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Pitch 1.27mm | ||
Orientation Right Angle | ||
Mount Type Surface | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Housing Material Thermoplastic | ||
Minimum Operating Temperature -20°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Series 47603 | ||
- COO (Country of Origin):
- CN
1.27mm Pitch SIM Card Holder with 2 Detect Pins, 8 Circuits, Push-Push Style, Housing Height 1.90mm, without Pegs, Lead-Free
