TE Connectivity 8 Way Push Pull SIM Memory Card Connector, Solder
- RS 제품 번호:
- 164-2204
- 제조사 부품 번호:
- 2199337-5
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 tape of 2000 units)*
₩5,904,000.00
일시적 품절
- 2026년 11월 10일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Tape* |
|---|---|---|
| 2000 - 2000 | ₩2,952.00 | ₩5,906,000.00 |
| 4000 - 6000 | ₩2,894.00 | ₩5,787,600.00 |
| 8000 + | ₩2,836.00 | ₩5,672,000.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 164-2204
- 제조사 부품 번호:
- 2199337-5
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Product Type | Memory Card Connector | |
| Card Type | SIM | |
| Insertion/Removal Method | Push Pull | |
| Gender | Female | |
| Number of Contacts | 8 | |
| Number of Rows | 1 | |
| Pitch | 2.54mm | |
| Orientation | Straight | |
| Mount Type | Surface | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Minimum Operating Temperature | -30°C | |
| Termination Type | Solder | |
| Housing Material | Thermoplastic | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Product Type Memory Card Connector | ||
Card Type SIM | ||
Insertion/Removal Method Push Pull | ||
Gender Female | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Pitch 2.54mm | ||
Orientation Straight | ||
Mount Type Surface | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Minimum Operating Temperature -30°C | ||
Termination Type Solder | ||
Housing Material Thermoplastic | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CN

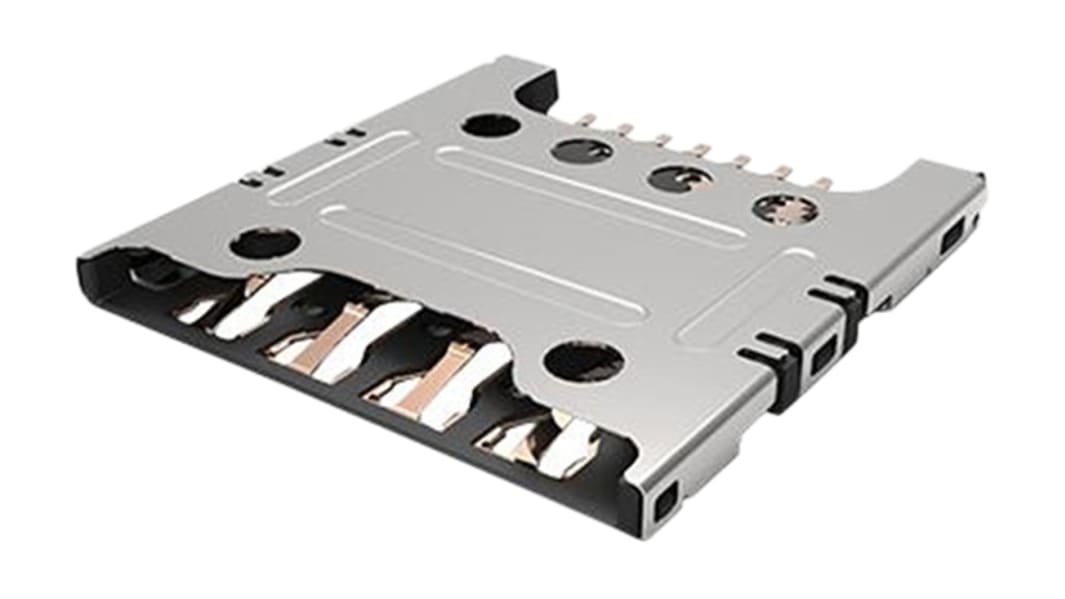

TE Connectivity 3FF Push-Pull Micro-SIM Card Connector
Micro-SIM card connector with a low profilespace saving profile of just 1.18mm. This SMT 3FF Micro-SIM card has a push-pull ejection mechanism, a card detection switch that senses card removal and a card stop that confirms full insertion.The dual slanted anti-buckling contacts of this Micro-SIM card do not deform when the SIM card is misinserted and also provide a strong mating force.
Typical applications for this Micro-SIM card include tablets, personal computers, data cards, portable GSM modems and servers.
