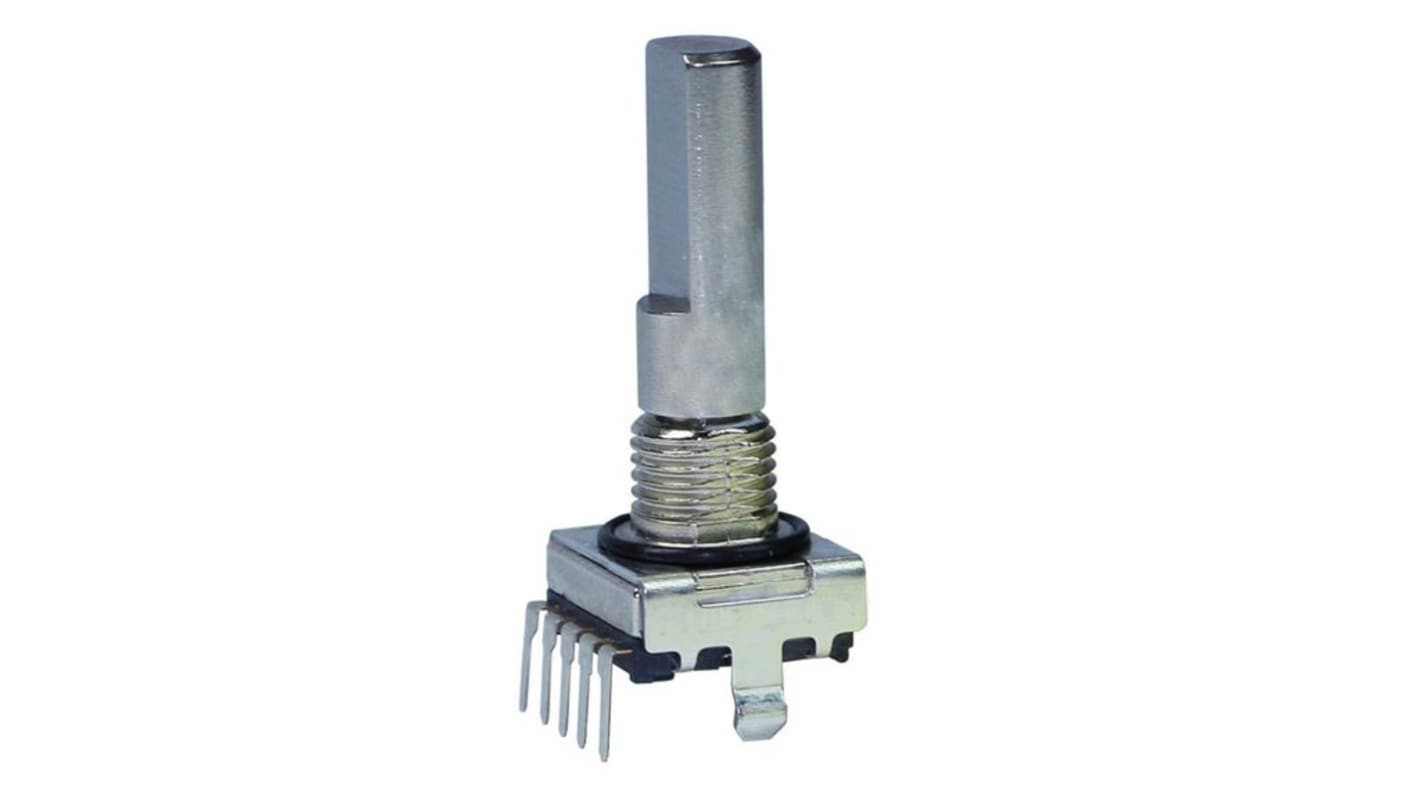

Elma 16 PPR Pulse Mechanical Rotary Encoder with a 12.7 mm Slotted Shaft, Through Hole

모든 Mechanical Rotary Encoders 열람하기
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
RS 재고 번호:
283-5825
Distrelec 제품 번호:
135-84-704
제조 부품 번호:
E33-VT612-M03T
제조업체:
Elma
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Elma

Pulses Per Revolution

16 PPR

Shaft Style

Slotted

Shaft Diameter

12.7 mm

Mounting Type

Through Hole

COO (Country of Origin):
CH
The high-performance encoder offers standard resolutions of 16 or 32 detents, with the option of having an integrated push button. With a rotational life of up to 1 million revolutions, it provides consistent performance over its lifetime. The robust metal housing, along with the stainless steel or brass shaft, ensures durability and reliability. With an IP68 shaft and front panel sealing, this encoder is suitable for use in challenging environments.

Gold plated contacts for reliable electrical performance
Robust metal housing with stainless steel or brass shaft
IP68 shaft and front panel sealing for protection against dust and water
Wide operating temperature range of -40 to +85 °C
Shaft electrically insulated > 500 VDC for enhanced safety
Various customization options available
