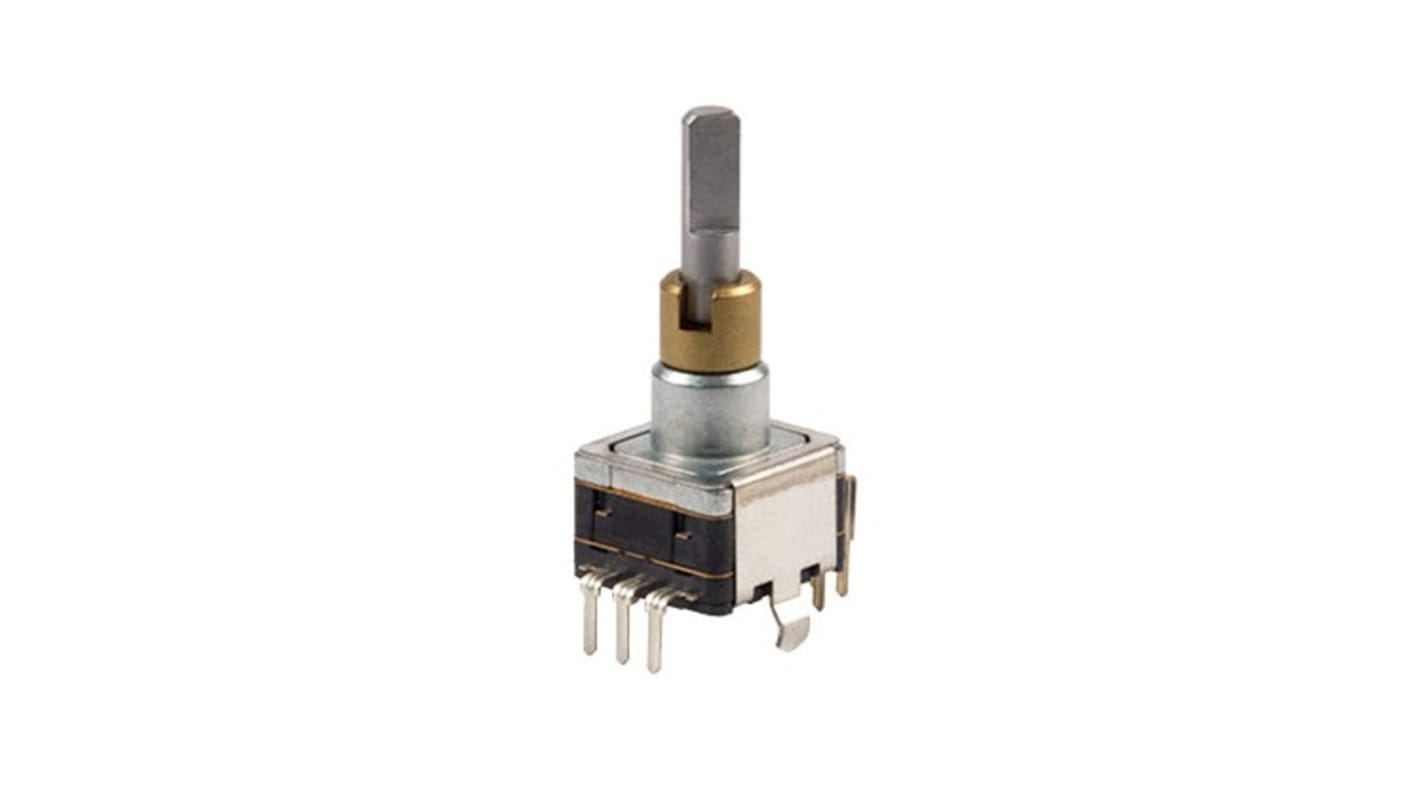

Bourns 15 ppr Pulse Quadrature Mechanical Rotary Encoder with a 2 mm (Not Indexed)
- RS 제품 번호:
- 269-2407
- 제조사 부품 번호:
- PEC11D-4120F-S0015
- 제조업체:
- Bourns
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 tray of 100 units)*
₩688,080.00
재고있음
- 600 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Tray* |
|---|---|---|
| 100 - 100 | ₩6,880.80 | ₩688,155.20 |
| 200 + | ₩6,743.56 | ₩674,393.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 269-2407
- 제조사 부품 번호:
- PEC11D-4120F-S0015
- 제조업체:
- Bourns
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Bourns | |
| Product Type | Mechanical Rotary Encoder | |
| Pulses Per Revolution | 15ppr | |
| Shaft Diameter | 2mm | |
| Encoder Reading | Quadrature | |
| Encoder Signal | 2 Bit Quadrature | |
| Index Output | Not Indexed | |
| Maximum Operating Speed | 60rpm | |
| Mounting Hole Diameter | 2.1 mm | |
| Series | PER23 | |
| Standards/Approvals | RoHS Compliant | |
| Termination Style | PC Pin Down Facing | |
| Current Rating | 10 mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Bourns | ||
Product Type Mechanical Rotary Encoder | ||
Pulses Per Revolution 15ppr | ||
Shaft Diameter 2mm | ||
Encoder Reading Quadrature | ||
Encoder Signal 2 Bit Quadrature | ||
Index Output Not Indexed | ||
Maximum Operating Speed 60rpm | ||
Mounting Hole Diameter 2.1 mm | ||
Series PER23 | ||
Standards/Approvals RoHS Compliant | ||
Termination Style PC Pin Down Facing | ||
Current Rating 10 mA | ||
The Bourns Rotary encoders are Ideal for use as digital panel controls or position sensing devices in a wide range of applications where digital circuitry is used. These devices are available in contacting and optical types and in various resolutions. This encoder has 2 bit quadrature code output and offers 15000 cycles minimum rotational life.
RoHS compliant
Switch stroke options
Dual concentric shaft
Two push switch options
Two encoders in a single package
