- RS 제품 번호:
- 383-2002
- 제조사 부품 번호:
- 5SY4132-6
- 제조업체:
- Siemens
12 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩34,011.578
수량 | 한팩당 |
1 - 2 | ₩34,011.578 |
3 - 4 | ₩32,652.357 |
5 + | ₩31,291.411 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 383-2002
- 제조사 부품 번호:
- 5SY4132-6
- 제조업체:
- Siemens
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- DE
제품 세부 사항

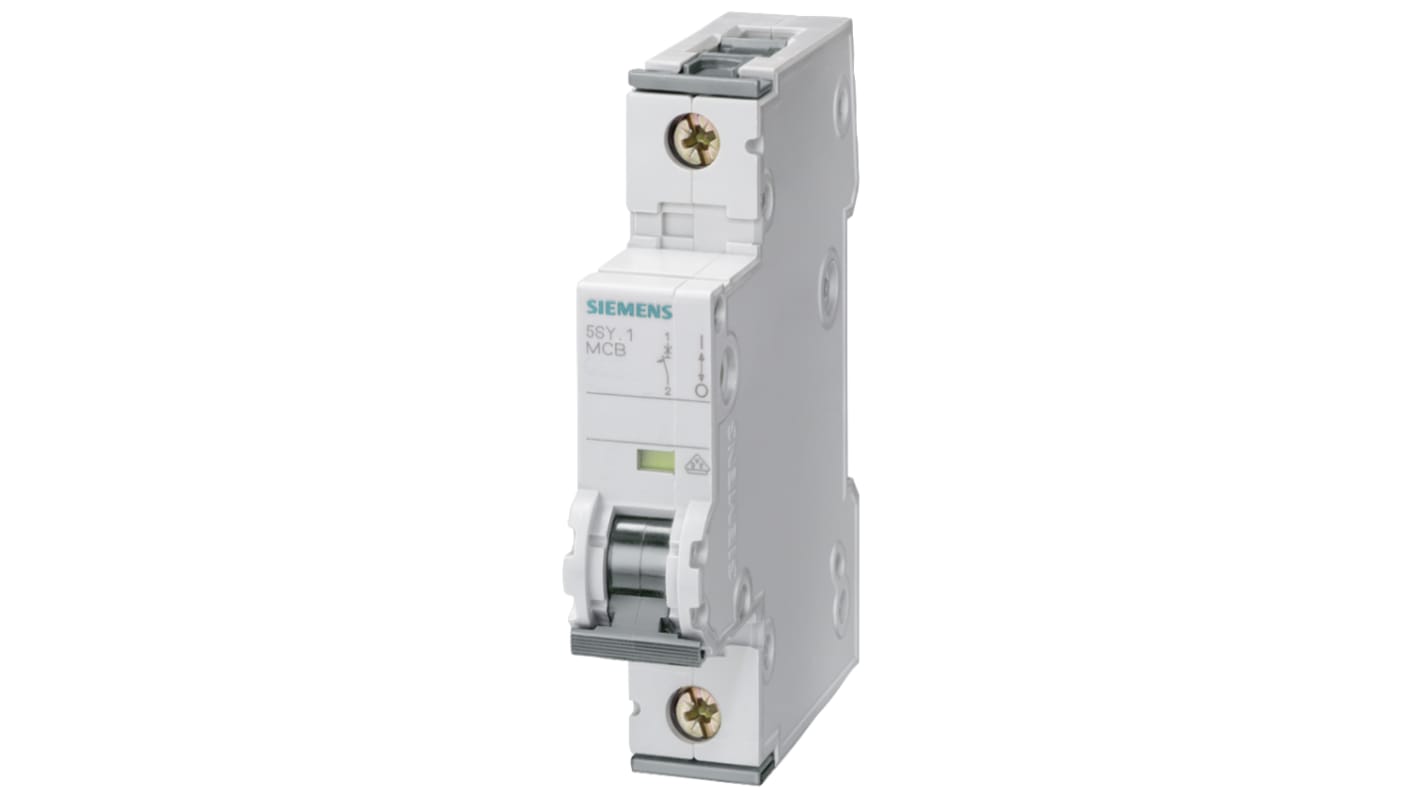

Siemens 5SY4 MCBs
The Siemens 5SY4 series are type C MCBs (miniature circuit breakers) rated at 400 V and provide a 10 kA breaking capacity. The range includes 1 or 3 pole options, all featuring reliable high performance and excellent quality.
Standards
Standards: EN 60898; DIN VDE 0641; Part 11; IEC 60898
Standards
EN 60898; DIN VDE 0641; Part 11; IEC 60898
사양
속성 | 값 |
---|---|
Number of Poles | 1P |
Current Rating | 32A |
Tripping Characteristics | Type B |
Rated AC Voltage | 400V |
Breaking Capacity at Maximum Voltage Rating | 10 kA |
Range | Sentron |
Series | 5SY4 |
Circuit Breaker Type | MCB |
Length | 89.8mm |
Width | 17.5mm |
Mounting Style | DIN Rail Mount |
Depth | 76mm |
Better World Product | Yes |
Better World Claim | Designed for disassembly, Extended product life |
