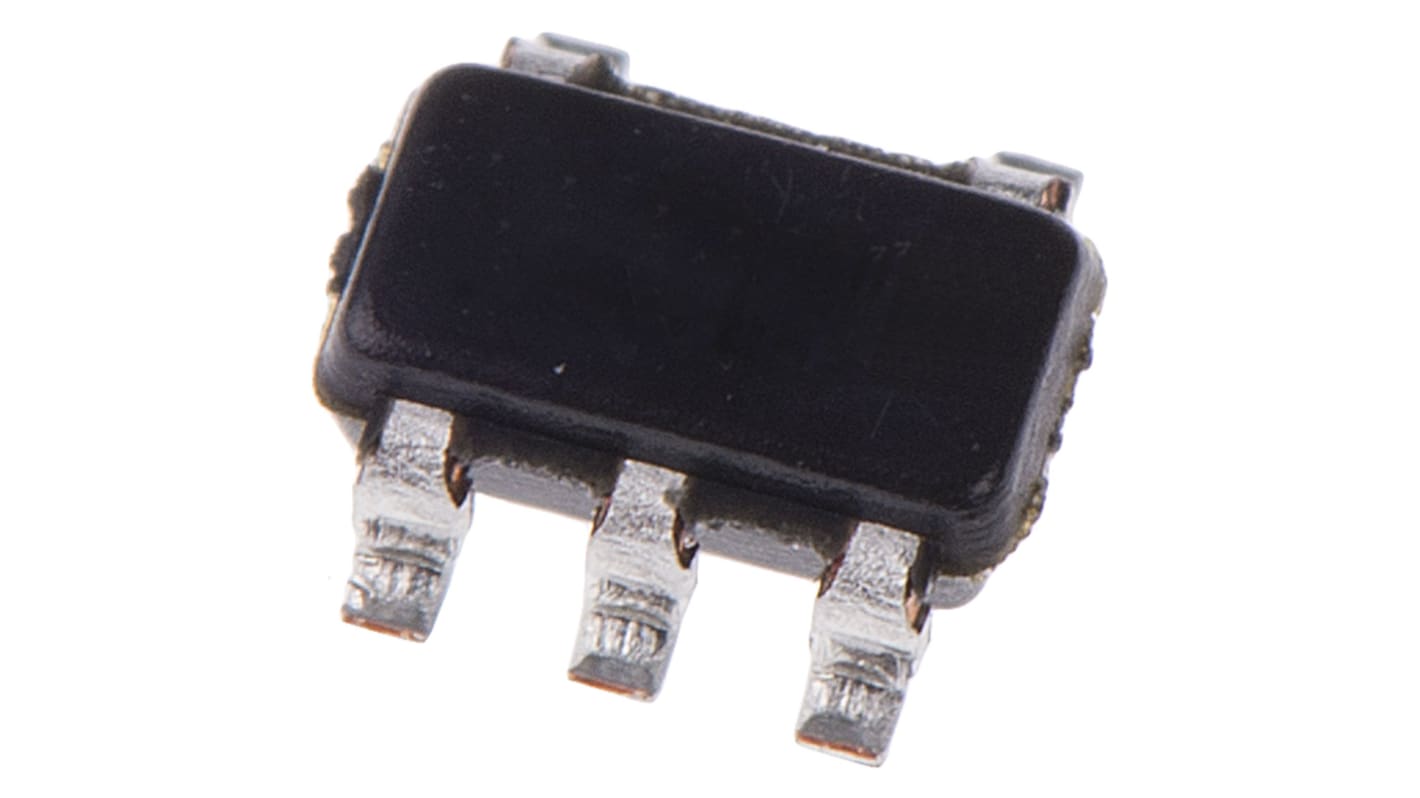

Texas Instruments SN74LVC1G00DBVR, 1 2-Input NAND Logic Gate, 5-Pin SOT-23
- RS 제품 번호:
- 796-8219
- 제조사 부품 번호:
- SN74LVC1G00DBVR
- 제조업체:
- Texas Instruments
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 25 units)*
₩2,444.00
재고있음
- 추가로 2026년 1월 19일 부터 1,050 개 단위 배송
- 추가로 2026년 1월 26일 부터 1,175 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 25 - 725 | ₩97.76 | ₩2,462.80 |
| 750 - 1475 | ₩95.88 | ₩2,406.40 |
| 1500 + | ₩95.88 | ₩2,387.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 796-8219
- 제조사 부품 번호:
- SN74LVC1G00DBVR
- 제조업체:
- Texas Instruments
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Texas Instruments | |
| Logic Function | NAND | |
| Product Type | Logic Gate | |
| Mount Type | Surface | |
| Number of Elements | 1 | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | No | |
| Package Type | SOT-23 | |
| Pin Count | 5 | |
| Logic Family | LVC | |
| Input Type | TTL, CMOS | |
| Maximum High Level Output Current | -32mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Propagation Delay Time @ CL | 4.3ns | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Length | 3.05mm | |
| Width | 1.75 mm | |
| Minimum Supply Voltage | 1.65V | |
| Series | SN74 | |
| Maximum Supply Voltage | 5.5V | |
| Height | 1.3mm | |
| Maximum Low Level Output Current | 32mA | |
| Output Type | CMOS | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Texas Instruments | ||
Logic Function NAND | ||
Product Type Logic Gate | ||
Mount Type Surface | ||
Number of Elements 1 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input No | ||
Package Type SOT-23 | ||
Pin Count 5 | ||
Logic Family LVC | ||
Input Type TTL, CMOS | ||
Maximum High Level Output Current -32mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Propagation Delay Time @ CL 4.3ns | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Length 3.05mm | ||
Width 1.75 mm | ||
Minimum Supply Voltage 1.65V | ||
Series SN74 | ||
Maximum Supply Voltage 5.5V | ||
Height 1.3mm | ||
Maximum Low Level Output Current 32mA | ||
Output Type CMOS | ||
Automotive Standard No | ||
74LVC Family Logic Gates, Texas Instruments
Texas Instruments range of standard Logic Gates from the 74LVC Family of Low-voltage CMOS Logic ICs. The 74LVC Family use silicon gate CMOS technology and is designed to operate at 3.3V, allowing a significant reduction in power consumption when compared to 5V systems.
Operating voltage range: 1.65 to 3.6V
5V tolerant inputs
Compatibility: Input LVTTL/TTL, Output LVCMOS
Latch-up performance exceeds 250 mA per JESD 17
ESD protection exceeds JESD 22
74LVC Family
