Nexperia 74HC1G32GW,125, 1 2-Input OR Logic Gate, 5-Pin TSSOP
- RS 제품 번호:
- 775-7750
- 제조사 부품 번호:
- 74HC1G32GW,125
- 제조업체:
- Nexperia

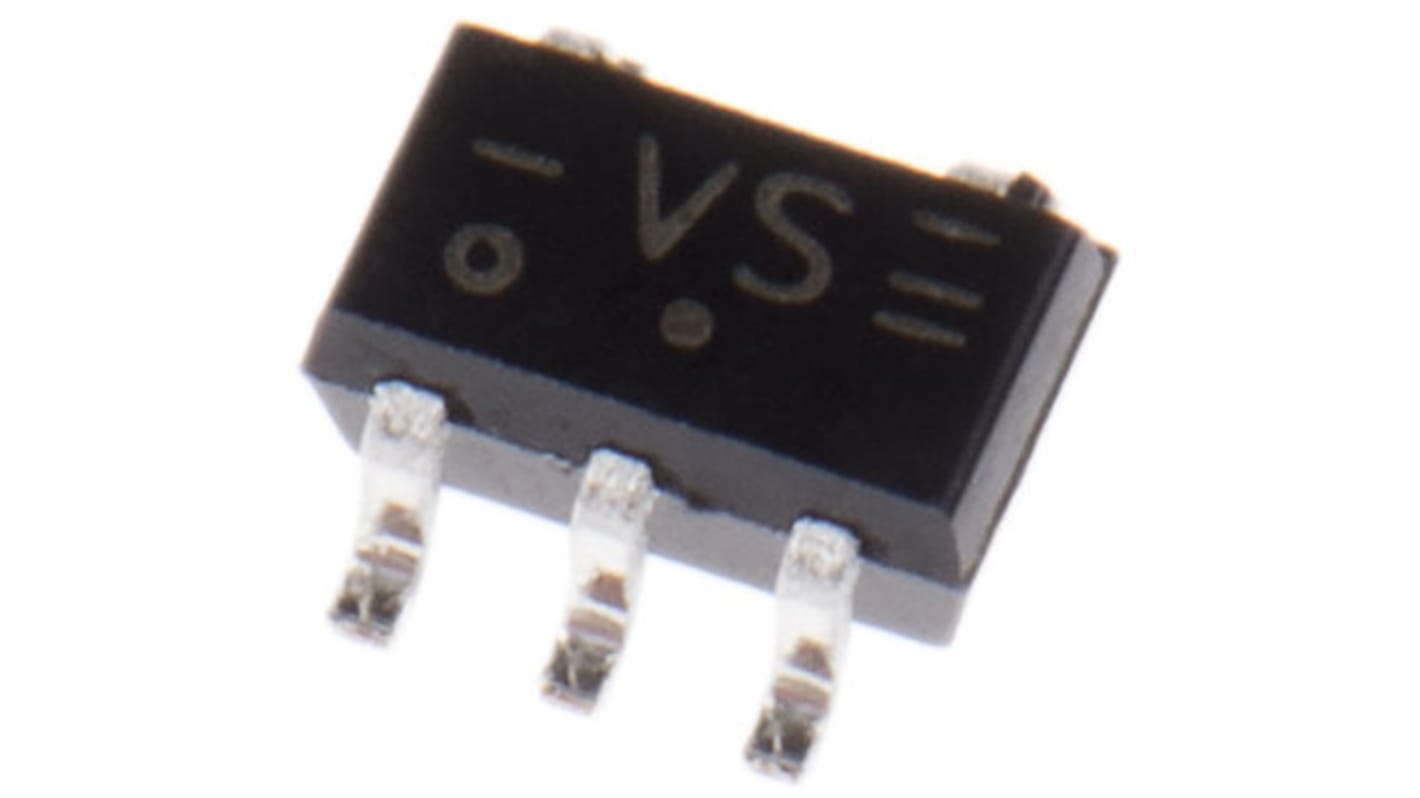

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 tape of 100 units)*
₩8,460.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 | Per Tape* |
|---|---|---|
| 100 - 700 | ₩84.60 | ₩8,441.20 |
| 800 - 1400 | ₩82.72 | ₩8,234.40 |
| 1500 + | ₩80.84 | ₩8,102.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 775-7750
- 제조사 부품 번호:
- 74HC1G32GW,125
- 제조업체:
- Nexperia
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Nexperia | |
| Logic Function | OR | |
| Product Type | Logic Gate | |
| Mount Type | Surface | |
| Number of Elements | 1 | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | No | |
| Package Type | TSSOP | |
| Pin Count | 5 | |
| Logic Family | HC | |
| Input Type | CMOS | |
| Maximum Propagation Delay Time @ CL | 23ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum High Level Output Current | -2.6mA | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Length | 2.25mm | |
| Height | 1mm | |
| Minimum Supply Voltage | 2V | |
| Width | 1.35 mm | |
| Series | 74HC1G | |
| Maximum Supply Voltage | 6V | |
| Maximum Low Level Output Current | 2.6mA | |
| Output Type | Current | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Nexperia | ||
Logic Function OR | ||
Product Type Logic Gate | ||
Mount Type Surface | ||
Number of Elements 1 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input No | ||
Package Type TSSOP | ||
Pin Count 5 | ||
Logic Family HC | ||
Input Type CMOS | ||
Maximum Propagation Delay Time @ CL 23ns | ||
Minimum Operating Temperature -40°C | ||
Maximum High Level Output Current -2.6mA | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Length 2.25mm | ||
Height 1mm | ||
Minimum Supply Voltage 2V | ||
Width 1.35 mm | ||
Series 74HC1G | ||
Maximum Supply Voltage 6V | ||
Maximum Low Level Output Current 2.6mA | ||
Output Type Current | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
74HC1G/74HC2G Series, Nexperia
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
