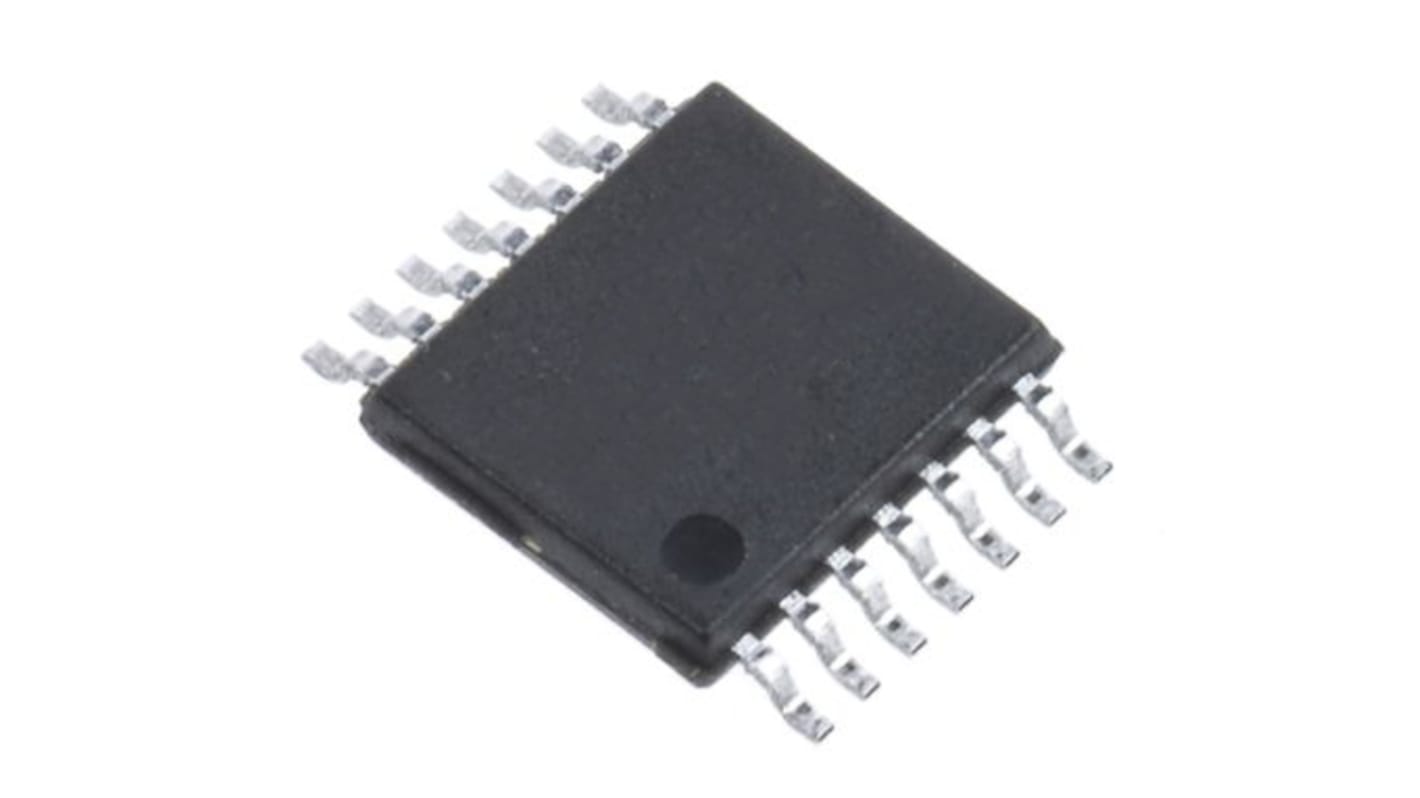

onsemi MC74VHC04DTR2G, 6 6-Input Inverter Logic Gate, 14-Pin TSSOP

RS 제품 번호:: 186-8644
제조사 부품 번호:: MC74VHC04DTR2G
제조업체:: onsemi

onsemi MC74VHC04DTR2G, 6 6-Input Inverter Logic Gate, 14-Pin TSSOP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 25 units)*

₩8,460.00

일시적 품절

1,575 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
25 - 600	₩338.40	₩8,441.20
625 - 1225	₩329.00	₩8,234.40
1250 +	₩323.36	₩8,102.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 186-8644
제조사 부품 번호:: MC74VHC04DTR2G
제조업체:: onsemi

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	onsemi
	Product Type	Logic Gate
	Logic Function	Inverter
	Mount Type	Surface
	Number of Elements	6
	Number of Inputs per Gate	6
	Schmitt Trigger Input	No
	Package Type	TSSOP
	Pin Count	14
	Logic Family	VHC
	Input Type	CMOS
	Maximum High Level Output Current	-24mA
	Minimum Operating Temperature	-40°C
	Maximum Propagation Delay Time @ CL	8.5ns
	Maximum Operating Temperature	85°C
	Width	4.5 mm
	Length	5.1mm
	Maximum Supply Voltage	5.5V
	Standards/Approvals	No
	Height	1.05mm
	Minimum Supply Voltage	2V
	Maximum Low Level Output Current	24mA
	Automotive Standard	AEC-Q100
	Output Type	Bipolar Schottky TTL

	모두 선택
	브랜드 onsemi
	Product Type Logic Gate
	Logic Function Inverter
	Mount Type Surface
	Number of Elements 6
	Number of Inputs per Gate 6
	Schmitt Trigger Input No
	Package Type TSSOP
	Pin Count 14
	Logic Family VHC
	Input Type CMOS
	Maximum High Level Output Current -24mA
	Minimum Operating Temperature -40°C
	Maximum Propagation Delay Time @ CL 8.5ns
	Maximum Operating Temperature 85°C
	Width 4.5 mm
	Length 5.1mm
	Maximum Supply Voltage 5.5V
	Standards/Approvals No
	Height 1.05mm
	Minimum Supply Voltage 2V
	Maximum Low Level Output Current 24mA
	Automotive Standard AEC-Q100
	Output Type Bipolar Schottky TTL

Datasheet MC74VHC04DTR2G

The MC74VHC04 is an advanced high speed CMOS inverter fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation. The internal circuit is composed of three stages, including a buffer output which provides high noise immunity and stable output. The inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems.

High Speed: tPD = 3.8ns (Typ) at VCC = 5V

Low Power Dissipation: ICC = 2μA (Max) at TA = 25 C

High Noise Immunity: VNIH = VNIL = 28% VCC

Power Down Protection Provided on Inputs

Balanced Propagation Delays

Designed for 2V to 5.5V Operating Range

Low Noise: VOLP = 0.8V (Max)

Pin and Function Compatible with Other Standard Logic Families

Latchup Performance Exceeds 300mA

ESD Performance: HBM > 2000V, Machine Model > 200V

Chip Complexity: 36 FETs or 9 Equivalent Gates

These devices are available in Pb-free package(s). Specifications herein apply to both standard and Pb-free devices.
