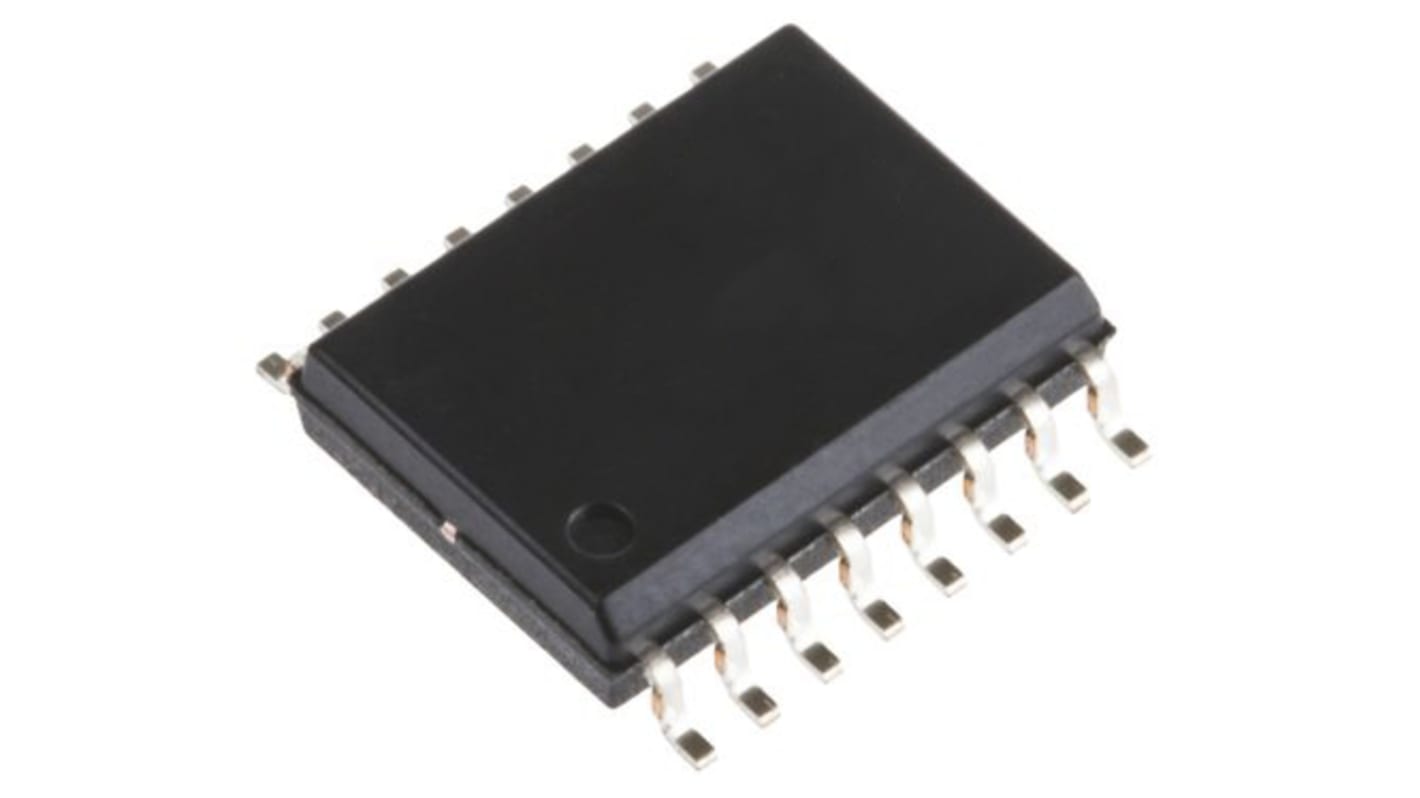

onsemi MC74ACT153DG 4-Input Multiplexer Logic Gate, 16-Pin SOIC

RS 제품 번호:: 186-8343
제조사 부품 번호:: MC74ACT153DG
제조업체:: onsemi

onsemi MC74ACT153DG 4-Input Multiplexer Logic Gate, 16-Pin SOIC

대량 구매 할인 기용 가능

Subtotal (1 pack of 25 units)*

₩14,758.00

재고있음

25 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
25 - 100	₩590.32	₩14,739.20
125 +	₩582.80	₩14,551.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 186-8343
제조사 부품 번호:: MC74ACT153DG
제조업체:: onsemi

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	onsemi
	Logic Function	Multiplexer
	Mounting Type	Surface Mount
	Number of Inputs per Gate	4
	Package Type	SOIC
	Pin Count	16
	Logic Family	ACT
	Input Type	TTL
	Maximum Operating Supply Voltage	5.5 V
	Maximum High Level Output Current	-24mA
	Maximum Propagation Delay Time @ Maximum CL	17.5 ns @ 50 pF
	Minimum Operating Supply Voltage	4.5 V
	Maximum Low Level Output Current	24mA
	Length	10mm
	Height	1.5mm
	Maximum Operating Temperature	+85 °C
	Propagation Delay Test Condition	50pF
	Width	4mm
	Dimensions	10 x 4 x 1.5mm
	Minimum Operating Temperature	-40 °C

	모두 선택
	브랜드 onsemi
	Logic Function Multiplexer
	Mounting Type Surface Mount
	Number of Inputs per Gate 4
	Package Type SOIC
	Pin Count 16
	Logic Family ACT
	Input Type TTL
	Maximum Operating Supply Voltage 5.5 V
	Maximum High Level Output Current -24mA
	Maximum Propagation Delay Time @ Maximum CL 17.5 ns @ 50 pF
	Minimum Operating Supply Voltage 4.5 V
	Maximum Low Level Output Current 24mA
	Length 10mm
	Height 1.5mm
	Maximum Operating Temperature +85 °C
	Propagation Delay Test Condition 50pF
	Width 4mm
	Dimensions 10 x 4 x 1.5mm
	Minimum Operating Temperature -40 °C

Datasheet MC74ACT153DG

The MC74AC153/74ACT153 is a high-speed dual 4-input multiplexer with common select inputs and individual enable inputs for each section. It can select two lines of data from four sources. The two buffered outputs present data in the true (non-inverted) form. In addition to multiplexer operation, the MC74AC153/ 74ACT153 can act as a function generator and generate any two functions of three variables.

Outputs Source/Sink 24 mA
ACT153 Has TTL Compatible Inputs
These devices are available in Pb-free package(s). Specifications herein apply to both standard and Pb-free devices.

onsemi MC74ACT153DG 4-Input Multiplexer Logic Gate, 16-Pin SOIC

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
