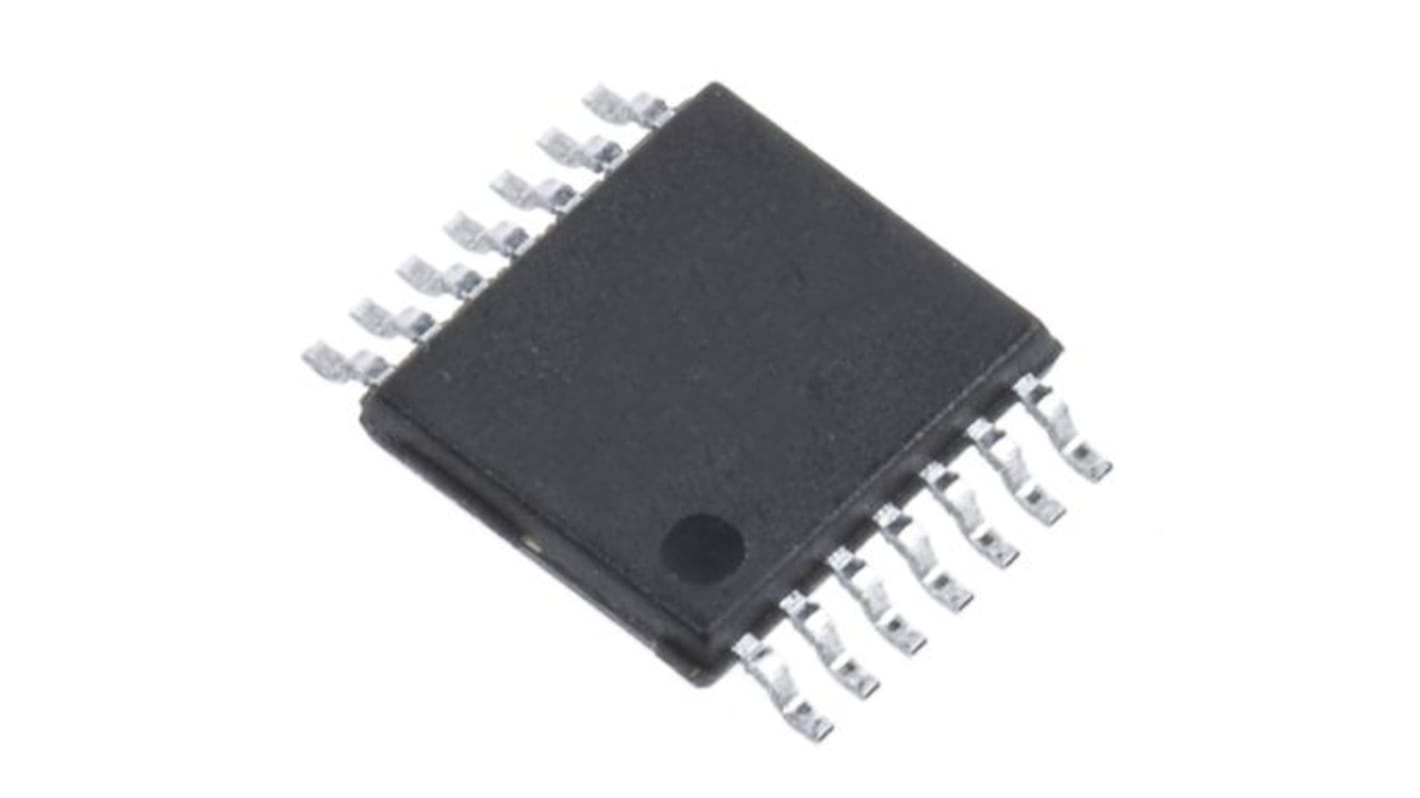

onsemi 74ACT32MTCX, Quad 2-Input OR Logic Gate, 14-Pin TSSOP
- RS 제품 번호:
- 186-7238
- 제조사 부품 번호:
- 74ACT32MTCX
- 제조업체:
- onsemi
대량 구매 할인 기용 가능
Subtotal (1 reel of 2500 units)*
₩634,500.00
일시적 품절
- 2026년 4월 01일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 2500 - 2500 | ₩253.80 | ₩634,030.00 |
| 5000 - 7500 | ₩248.16 | ₩621,340.00 |
| 10000 + | ₩244.40 | ₩609,120.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 186-7238
- 제조사 부품 번호:
- 74ACT32MTCX
- 제조업체:
- onsemi
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | onsemi | |
| Logic Function | OR | |
| Mounting Type | Surface Mount | |
| Number of Elements | 4 | |
| Number of Inputs per Gate | 2 | |
| Package Type | TSSOP | |
| Pin Count | 14 | |
| Logic Family | ACT | |
| Input Type | TTL | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Maximum High Level Output Current | -24mA | |
| Maximum Propagation Delay Time @ Maximum CL | 10 ns @ 50 pF | |
| Minimum Operating Supply Voltage | 4.5 V | |
| Maximum Low Level Output Current | 24mA | |
| Minimum Operating Temperature | -40 °C | |
| Length | 5.1mm | |
| Dimensions | 5.1 x 4.5 x 1.05mm | |
| Height | 1.05mm | |
| Width | 4.5mm | |
| Maximum Operating Temperature | +85 °C | |
| Propagation Delay Test Condition | 50pF | |
| 모두 선택 | ||
|---|---|---|
브랜드 onsemi | ||
Logic Function OR | ||
Mounting Type Surface Mount | ||
Number of Elements 4 | ||
Number of Inputs per Gate 2 | ||
Package Type TSSOP | ||
Pin Count 14 | ||
Logic Family ACT | ||
Input Type TTL | ||
Maximum Operating Supply Voltage 5.5 V | ||
Maximum High Level Output Current -24mA | ||
Maximum Propagation Delay Time @ Maximum CL 10 ns @ 50 pF | ||
Minimum Operating Supply Voltage 4.5 V | ||
Maximum Low Level Output Current 24mA | ||
Minimum Operating Temperature -40 °C | ||
Length 5.1mm | ||
Dimensions 5.1 x 4.5 x 1.05mm | ||
Height 1.05mm | ||
Width 4.5mm | ||
Maximum Operating Temperature +85 °C | ||
Propagation Delay Test Condition 50pF | ||
The AC/ACT32 contains four, 2-input OR gates.
ICC reduced by 50% on 74AC only
Outputs source/sink 24 mA
ACT32 has TTL-compatible inputs
Applications
This product is general usage and suitable for many different applications.
Outputs source/sink 24 mA
ACT32 has TTL-compatible inputs
Applications
This product is general usage and suitable for many different applications.
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
