Toshiba TC7SZ02FE, 1 2-Input NOR Logic Gate, 5-Pin SOT-553
- RS 제품 번호:
- 171-3181
- 제조사 부품 번호:
- TC7SZ02FE
- 제조업체:
- Toshiba

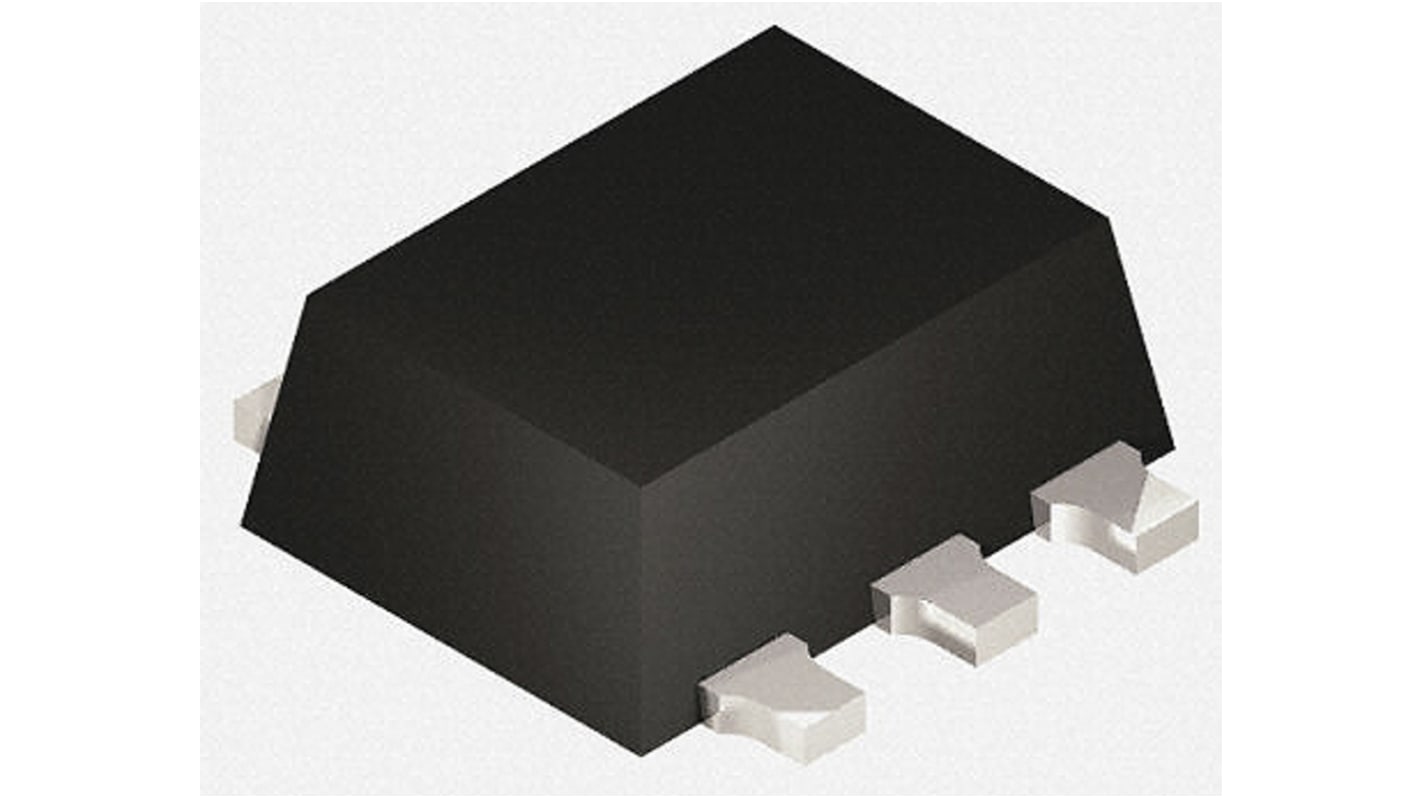

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 100 units)*
₩15,228.00
현재 액세스할 수 없는 재고 정보
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 100 - 900 | ₩152.28 | ₩15,246.80 |
| 1000 - 1900 | ₩148.52 | ₩14,870.80 |
| 2000 + | ₩146.64 | ₩14,645.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 171-3181
- 제조사 부품 번호:
- TC7SZ02FE
- 제조업체:
- Toshiba
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Toshiba | |
| Product Type | Logic Gate | |
| Logic Function | NOR | |
| Mount Type | Surface | |
| Number of Elements | 1 | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | No | |
| Package Type | SOT-553 | |
| Pin Count | 5 | |
| Logic Family | CMOS | |
| Input Type | CMOS | |
| Maximum High Level Output Current | -32mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Propagation Delay Time @ CL | 5ns | |
| Maximum Operating Temperature | 125°C | |
| Length | 1.6mm | |
| Standards/Approvals | No | |
| Height | 0.55mm | |
| Maximum Supply Voltage | 5.5V | |
| Width | 1.2 mm | |
| Minimum Supply Voltage | 1.65V | |
| Maximum Low Level Output Current | 32mA | |
| Automotive Standard | AEC-Q100 | |
| Output Type | CMOS | |
| 모두 선택 | ||
|---|---|---|
브랜드 Toshiba | ||
Product Type Logic Gate | ||
Logic Function NOR | ||
Mount Type Surface | ||
Number of Elements 1 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input No | ||
Package Type SOT-553 | ||
Pin Count 5 | ||
Logic Family CMOS | ||
Input Type CMOS | ||
Maximum High Level Output Current -32mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Propagation Delay Time @ CL 5ns | ||
Maximum Operating Temperature 125°C | ||
Length 1.6mm | ||
Standards/Approvals No | ||
Height 0.55mm | ||
Maximum Supply Voltage 5.5V | ||
Width 1.2 mm | ||
Minimum Supply Voltage 1.65V | ||
Maximum Low Level Output Current 32mA | ||
Automotive Standard AEC-Q100 | ||
Output Type CMOS | ||
Inverter
Wide operating temperature range: Topr = -40 to 125 (Note 2)
High output current: ±24 mA (min) at VCC = 3.0 V
Super high speed operation: tpd = 2.4 ns (typ.) at VCC = 5.0 V, CL = 50 pF
Operation voltage range: VCC = 1.65 to 5.5 V
5.5 V tolerant inputs
5.5 V power down protection output
Matches the performance of TC74LCX series when operated at 3.3 V VCC
