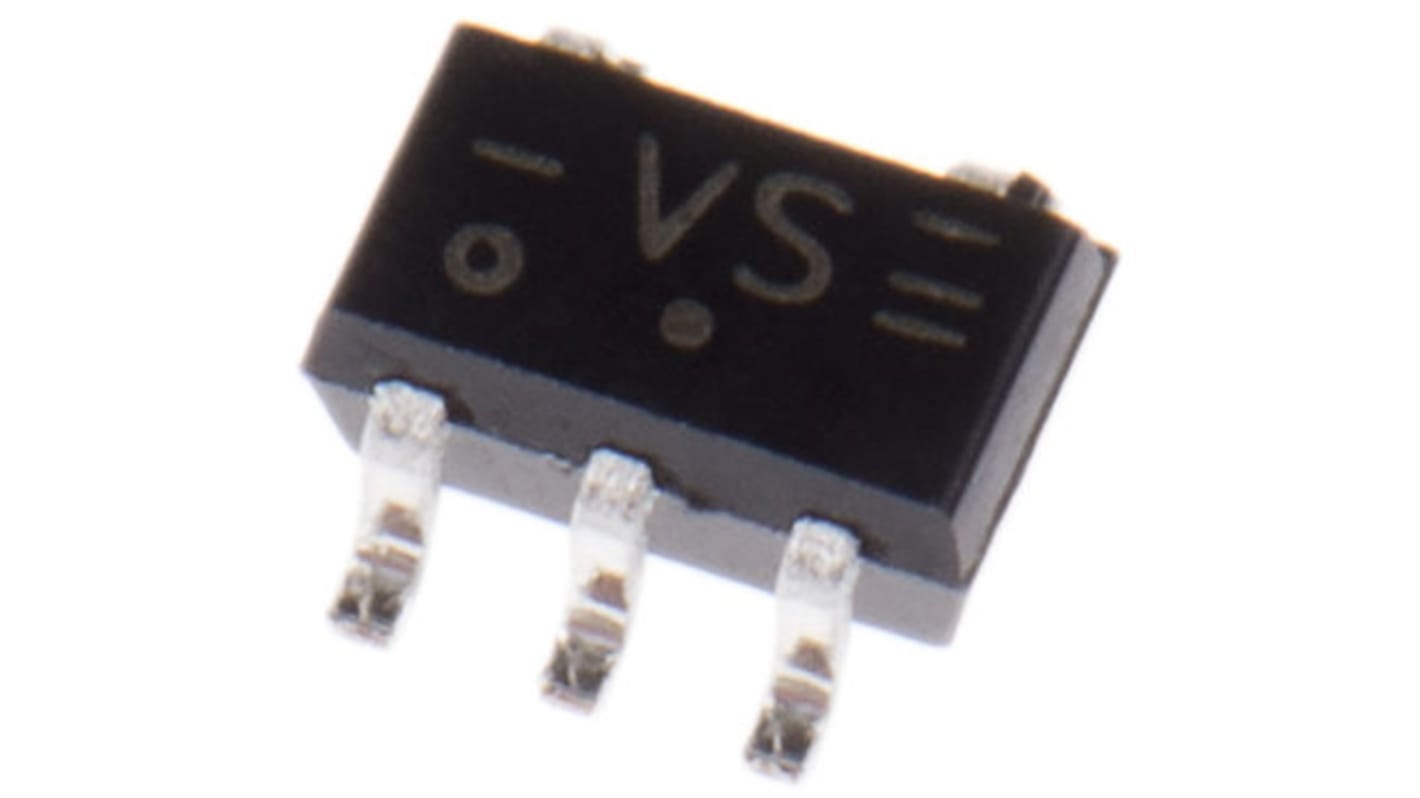

Nexperia 74AHC1G00GW,125, 1 2-Input 2 Input Nand Gate Logic Gate, 5-Pin SOT-353
- RS 제품 번호:
- 510-093
- 제조사 부품 번호:
- 74AHC1G00GW,125
- 제조업체:
- Nexperia
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (50 units, in packs of 50)*
₩4,500.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 50 - 700 | ₩90.00 | ₩4,520.00 |
| 750 - 1450 | ₩88.00 | ₩4,440.00 |
| 1500 + | ₩86.00 | ₩4,340.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 510-093
- 제조사 부품 번호:
- 74AHC1G00GW,125
- 제조업체:
- Nexperia
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Nexperia | |
| Logic Function | 2 Input Nand Gate | |
| Product Type | Logic Gate | |
| Mount Type | Surface | |
| Number of Elements | 1 | |
| Number of Inputs per Gate | 2 | |
| Schmitt Trigger Input | No | |
| Package Type | SOT-353 | |
| Pin Count | 5 | |
| Logic Family | AHC | |
| Input Type | Voltage | |
| Maximum High Level Output Current | -8mA | |
| Maximum Propagation Delay Time @ CL | 7.5ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Series | 74AHC1G | |
| Minimum Supply Voltage | 2V | |
| Maximum Supply Voltage | 5.5V | |
| Height | 1mm | |
| Length | 2.25mm | |
| Maximum Low Level Output Current | 8mA | |
| Output Type | Symmetrical | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Nexperia | ||
Logic Function 2 Input Nand Gate | ||
Product Type Logic Gate | ||
Mount Type Surface | ||
Number of Elements 1 | ||
Number of Inputs per Gate 2 | ||
Schmitt Trigger Input No | ||
Package Type SOT-353 | ||
Pin Count 5 | ||
Logic Family AHC | ||
Input Type Voltage | ||
Maximum High Level Output Current -8mA | ||
Maximum Propagation Delay Time @ CL 7.5ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Series 74AHC1G | ||
Minimum Supply Voltage 2V | ||
Maximum Supply Voltage 5.5V | ||
Height 1mm | ||
Length 2.25mm | ||
Maximum Low Level Output Current 8mA | ||
Output Type Symmetrical | ||
Automotive Standard No | ||
74AHC1G/74AHC2G Family, Nexperia
Single and dual gate packages
CMOS input, CMOS output
Operating voltage 2 to 5.5 V
74AHC Family
