Lenze TLK110 8X15, 8mm ID, 15 mm OD Locking Bush, 29 mm, 29 Nm
- RS 제품 번호:
- 477-6931
- 제조사 부품 번호:
- TLK110 8X15
- 제조업체:
- Lenze

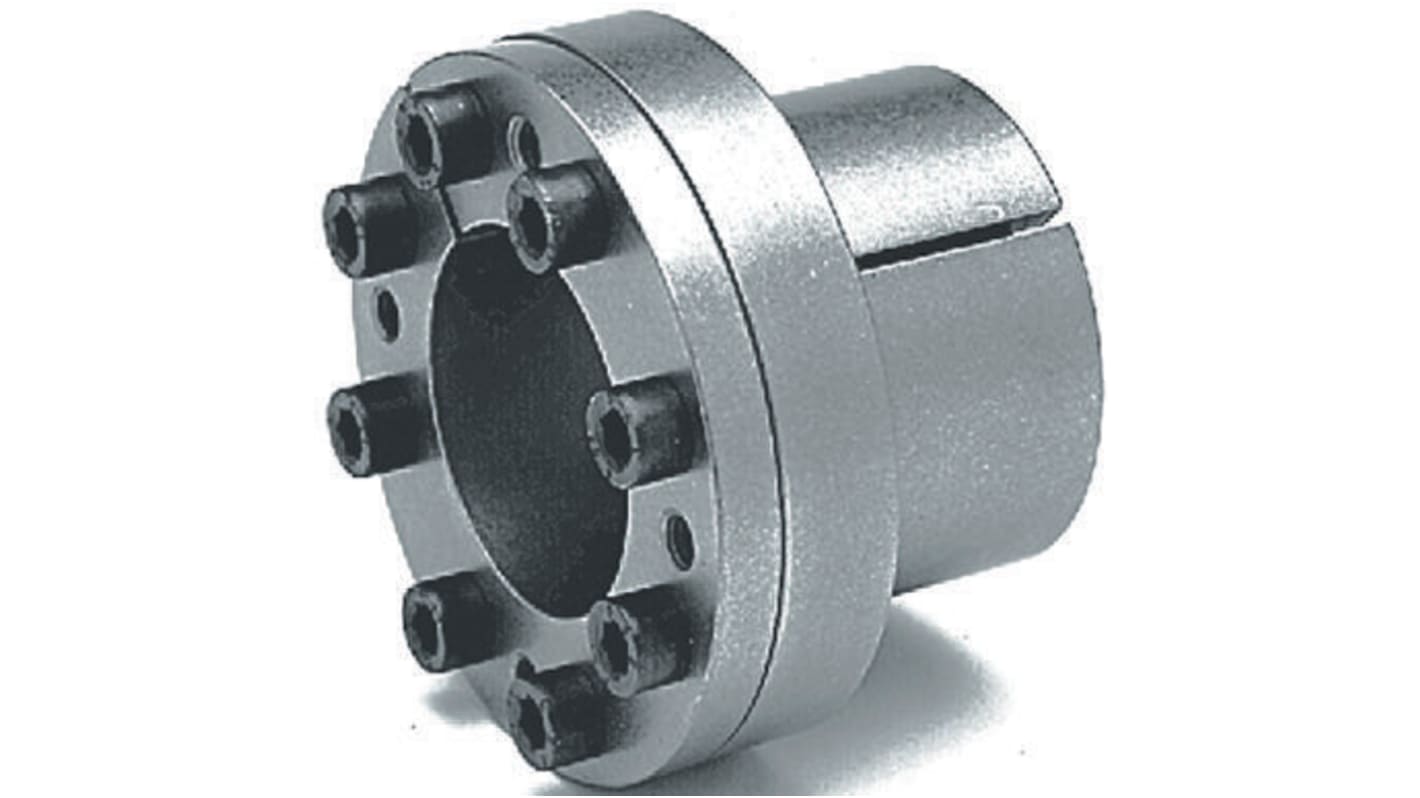

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
- RS 제품 번호:
- 477-6931
- 제조사 부품 번호:
- TLK110 8X15
- 제조업체:
- Lenze
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Lenze | |
| Torque Rating | 29Nm | |
| Product Type | Locking Bush | |
| Bore Diameter | 8mm | |
| Length | 29mm | |
| Series | Tollok TLK110 | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Lenze | ||
Torque Rating 29Nm | ||
Product Type Locking Bush | ||
Bore Diameter 8mm | ||
Length 29mm | ||
Series Tollok TLK110 | ||
Standards/Approvals No | ||
제외
- COO (Country of Origin):
- DE
TOLLOK TLK 110 Locking Bushes
Tollok manufactures highly engineered shaft locking devices for the power generation, process industries, and general industrial applications. For more than 35 years their products have been used to secure rotating shafts, manage torque transmission, and counteract shaft bending and vibration.
These industry standard shaft-to-hub locking bushes offer infinite radial and axial adjustment. They are designed for the economic mounting of gears, pulleys, cams, sprockets, and so on, where frequent removal is not required.
Features and Benefits
• Maintenance free
• Easy installation
• Self-centring
• Medium high torque
• Low surface pressures
• Restricted hub diameter
