제조사부품번호

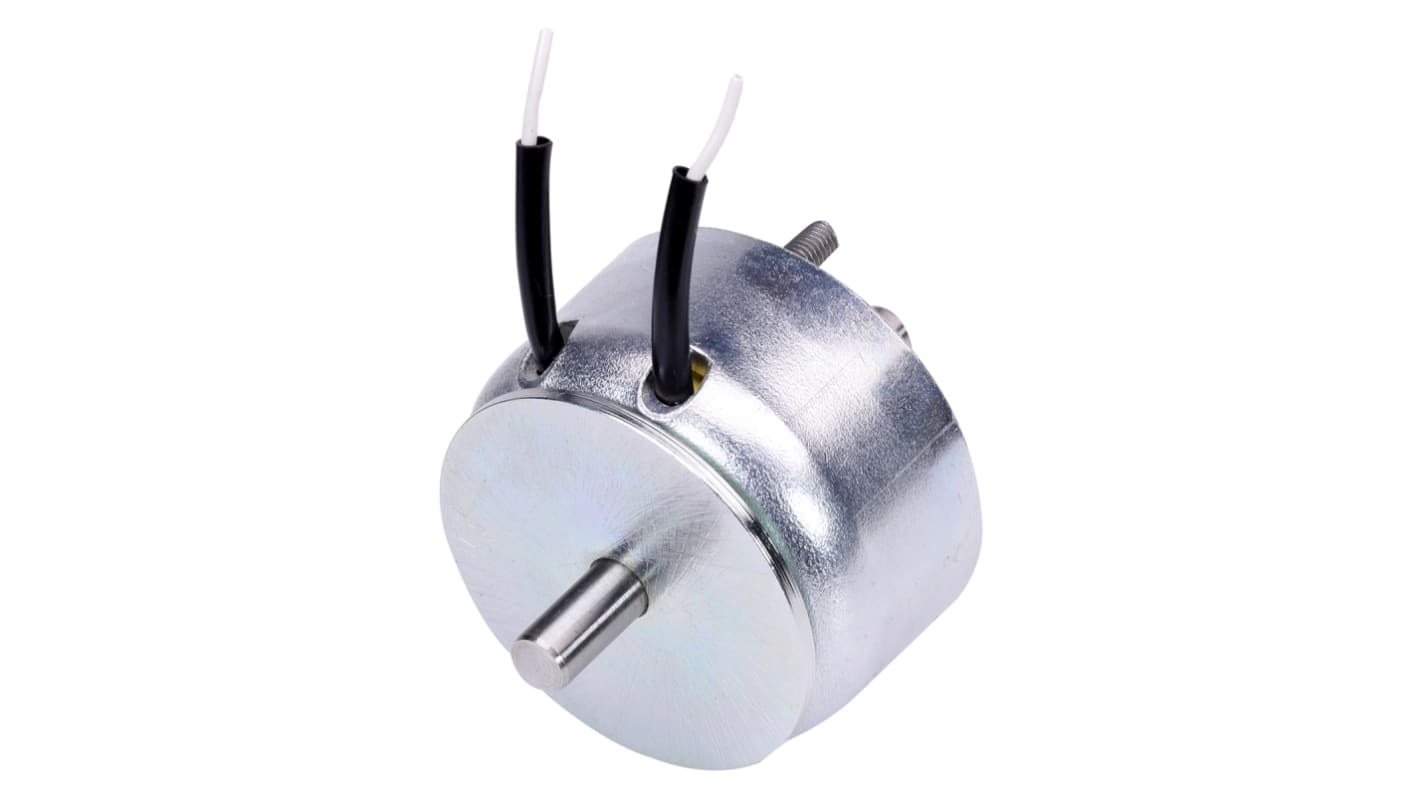

Johnson Electric Linear Solenoid, 24 V dc, 258N

RS 제품 번호:: 173-6445
제조사 부품 번호:: 129450-029
제조업체:: Johnson Electric

Johnson Electric Linear Solenoid, 24 V dc, 258N

Subtotal (1 unit)*

₩114,398.00

마지막 RS 재고

최종적인 47 개 unit(s)이 배송 준비 됨

수량	한팩당
1 +	₩114,398.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 173-6445
제조사 부품 번호:: 129450-029
제조업체:: Johnson Electric

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Johnson Electric
	Power Consumption	21 W
	Supply Voltage	24 V dc
	Holding Force	258N
	Plunger Diameter	6.35mm
	Product Height	22.35mm
	Product Width	47.62 Dia.mm
	Coil Resistance	30.48Ω
	Wire Size	29AWG

	모두 선택
	브랜드 Johnson Electric
	Power Consumption 21 W
	Supply Voltage 24 V dc
	Holding Force 258N
	Plunger Diameter 6.35mm
	Product Height 22.35mm
	Product Width 47.62 Dia.mm
	Coil Resistance 30.48Ω
	Wire Size 29AWG

Datasheet

COO (Country of Origin):: US

Johnson Electric’s Low Profile Linear DC Solenoids offer extremely compact design which optimizes the magnetic flux path for maximum force versus stroke characteristics. The construction of the plunger assembly provides an auxiliary flux path which permits a significant increase in force. The reliability and high performance of the low profile design make it an ideal choice for applications in which consistent, reliable operation is critical. Long life operation with very high force in a small package make the Low Profile Linear DC Solenoid technology idea for a variety of applications including pumps, packaging equipment, and instrumentation & testing equipment.

Linear actuation
Space-saving, low-profile
configuration
Ideal for high force, short
stroke applications
Forces to 845 N
Stroke lengths to 18 mm

Johnson Electric Linear Solenoid, 24 V dc, 258N
