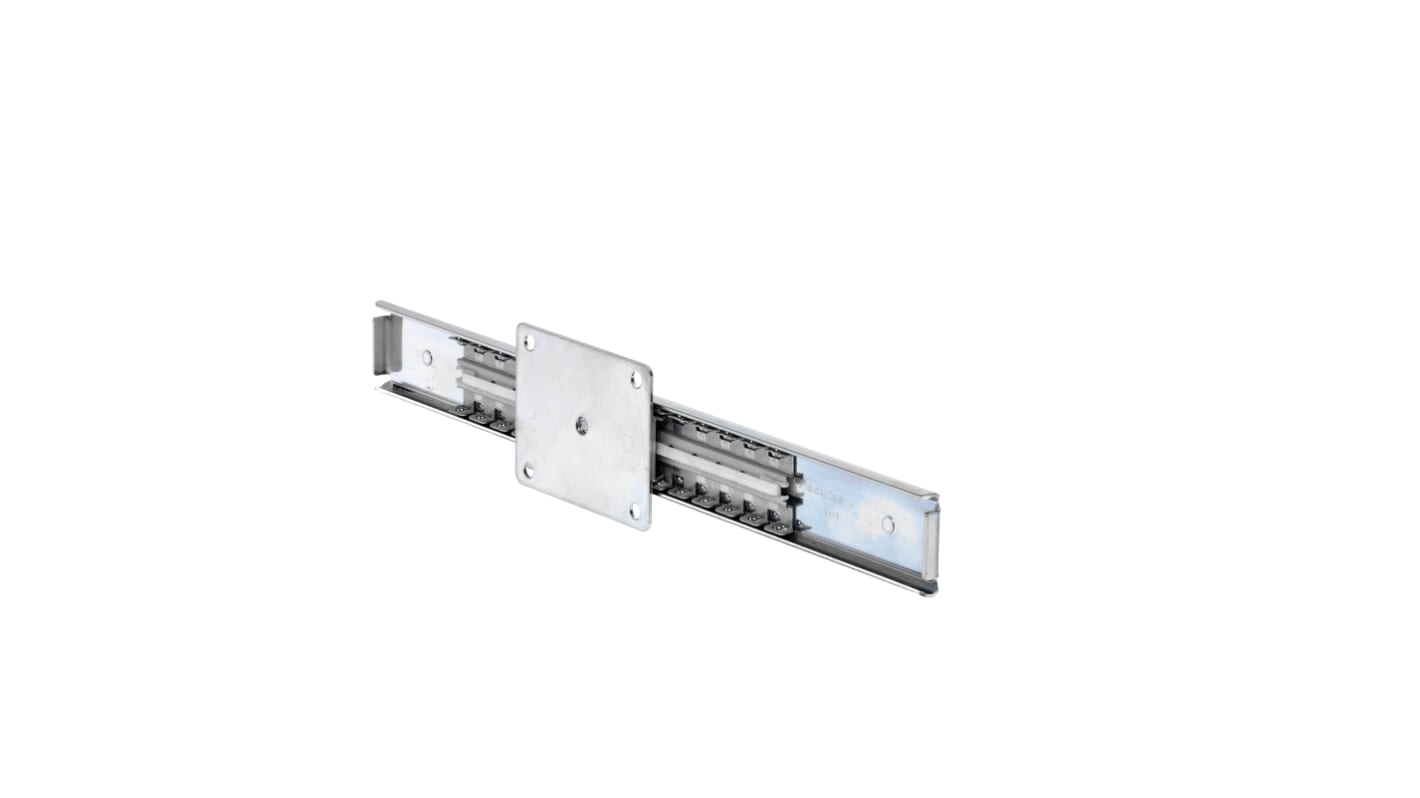

Accuride, DZ0115-0045RS Mild Steel Linear Slides, 378mm Stroke Length
- RS 제품 번호:
- 699-8495
- 제조사 부품 번호:
- DZ0115-0045RS
- 제조업체:
- Accuride
모든 Linear Slides 열람하기
- RS 제품 번호:
- 699-8495
- 제조사 부품 번호:
- DZ0115-0045RS
- 제조업체:
- Accuride
- COO (Country of Origin):
- CN
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항
Accuride Linear Slides 0115RS Series
Horizontal loading per pair of slides evenly distributed: 60kg
Vertical loading per pair of slides evenly distributed: 50kg
10000 cycles
Precision linear motion through the full travel
Moving member fully supported on ball bearings at all times
Retainer synchronization
Can be used upright as a non-load bearing guide
Fixing recommended M5 screws (not supplied)
Materials: Cold rolled mild steel runners; cold rolled Zinc plated steel ball retainers; Carbon Chrome steel ball bearings
Note
Slides are supplied as single units.
Ball Slide Tables, Precision
Corrosion resistant stainless steel construction precision ball slide tables in a range of width, often used in the electronics and precision instrumentation industries.
사양
| 속성 | 값 |
| Manufacturer Series | 0115RS |
| Stroke Length | 378mm |
| Rail Width | 35.1mm |
| Rail Length | 457mm |
| Carriage Length | 76.2mm |
| Carriage Width | 60.3mm |
| Rail Material | Mild Steel |
