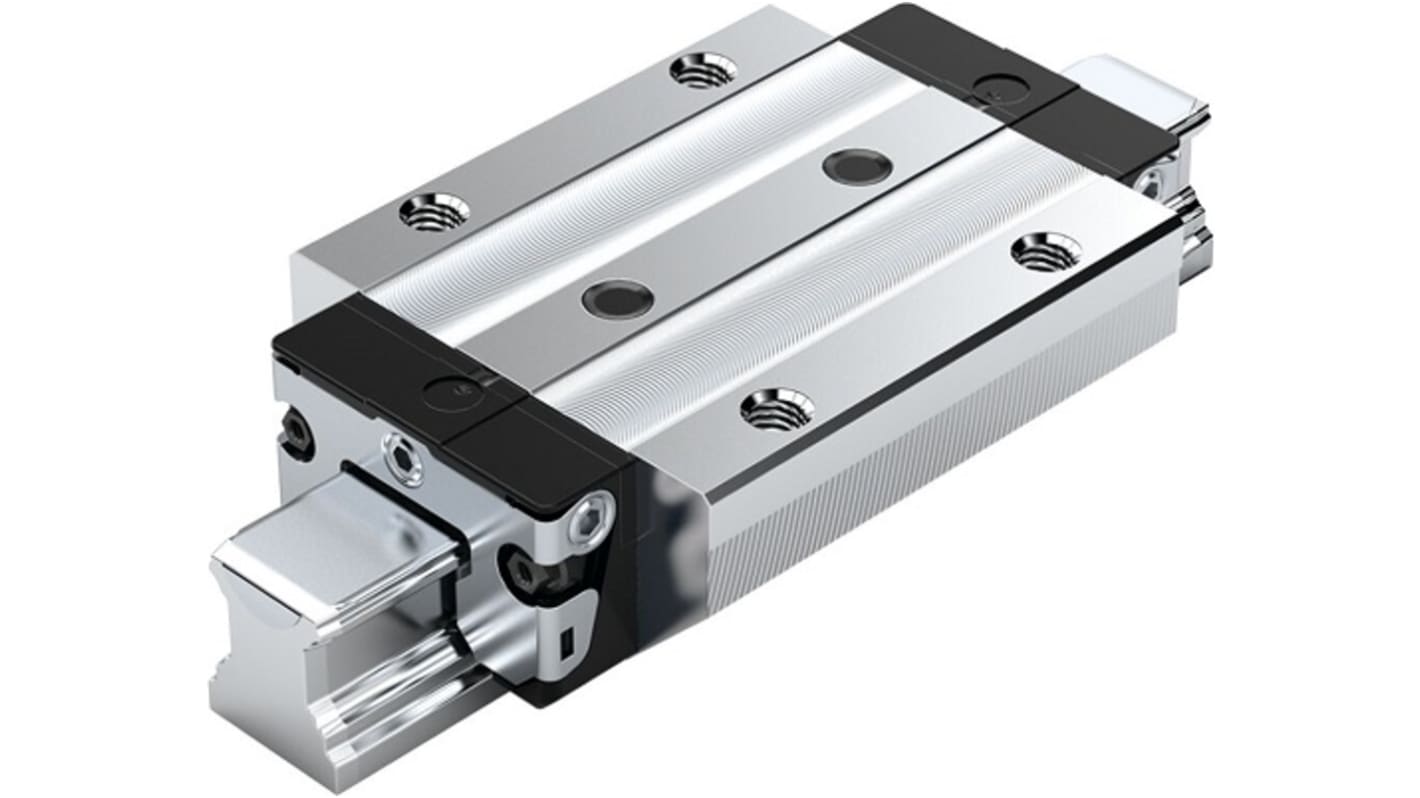

Bosch Rexroth Guide Block R165321320 R16 Series, 37.3 kN Dynamic Load
- RS 제품 번호:
- 246-9283
- 제조사 부품 번호:
- R165321320
- 제조업체:
- Bosch Rexroth
Subtotal (1 unit)*
₩510,705.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩510,705.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 246-9283
- 제조사 부품 번호:
- R165321320
- 제조업체:
- Bosch Rexroth
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Bosch Rexroth | |
| Product Type | Guide Block | |
| Series | R16 | |
| Carriage Length | 107.9mm | |
| Carriage Width | 36mm | |
| Dynamic Load Rating | 37.3kN | |
| Static Load Rating | 52.5kN | |
| Acceptable Rail Width | 70mm | |
| Carriage Material | Carbon Steel | |
| Carriage Type | Ball | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 Bosch Rexroth | ||
Product Type Guide Block | ||
Series R16 | ||
Carriage Length 107.9mm | ||
Carriage Width 36mm | ||
Dynamic Load Rating 37.3kN | ||
Static Load Rating 52.5kN | ||
Acceptable Rail Width 70mm | ||
Carriage Material Carbon Steel | ||
Carriage Type Ball | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- RO
The Bosch Rexroth standard ball runner block body made of carbon steel CS with initial lubrication and preservation and without ball chain and also has FLS design with flange width, normal length, standard height.
Size 25
Accuracy class high
Overall length of the runner block 107,9 mm
Preload class C1 low preload
Maximum precision
