Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin PDIP

RS 제품 번호:: 368-6269
제조사 부품 번호:: SN74LS244N
제조업체:: Texas Instruments

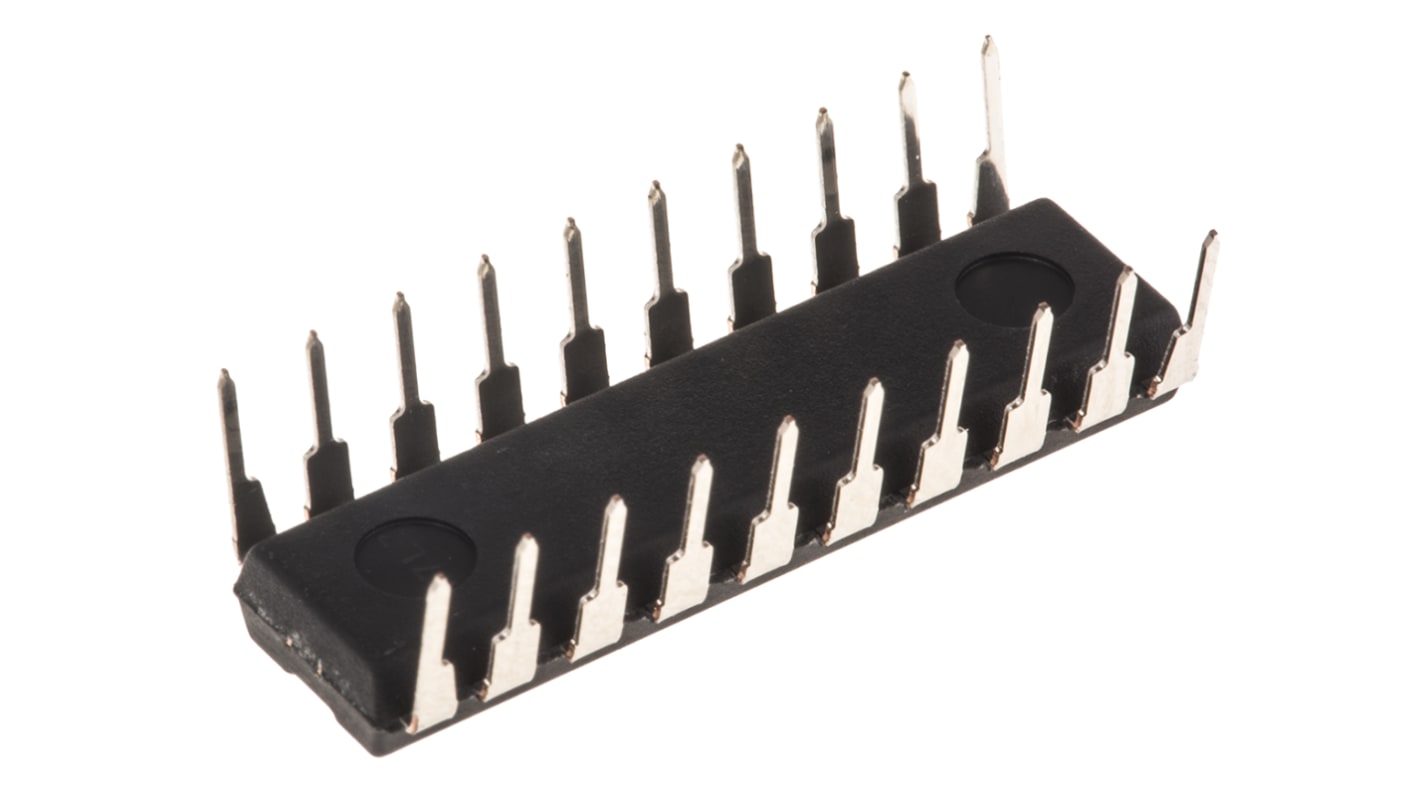

Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin PDIP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 tube of 20 units)*

₩36,171.20

재고있음

380 개 단위 배송 준비 완료
추가로 2026년 2월 13일 부터 25,680 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tube*
20 - 20	₩1,808.56	₩36,171.20
40 - 60	₩1,754.04	₩35,080.80
80 +	₩1,701.40	₩34,028.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 368-6269
제조사 부품 번호:: SN74LS244N
제조업체:: Texas Instruments

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Texas Instruments
	Product Type	Buffer & Line Driver
	Logic Family	LS
	Logic Function	Buffer & Line Driver
	Number of Channels	8
	IC Type	Buffer & Line Driver IC
	Input Type	Single Ended
	Output Type	3 State
	Polarity	Non-Inverting
	Mount Type	Through Hole
	Package Type	PDIP
	Minimum Supply Voltage	4.75V
	Pin Count	20
	Maximum Supply Voltage	5.25V
	Maximum High Level Output Current	-15mA
	Maximum Propagation Delay Time @ CL	15ns
	Minimum Operating Temperature	0°C
	Maximum Low Level Output Current	24mA
	Maximum Operating Temperature	70°C
	Standards/Approvals	No
	Width	6.6 mm
	Series	SNx4LS24x
	Length	26.92mm
	Height	5.08mm
	Automotive Standard	No
	Supply Current	54mA

	모두 선택
	브랜드 Texas Instruments
	Product Type Buffer & Line Driver
	Logic Family LS
	Logic Function Buffer & Line Driver
	Number of Channels 8
	IC Type Buffer & Line Driver IC
	Input Type Single Ended
	Output Type 3 State
	Polarity Non-Inverting
	Mount Type Through Hole
	Package Type PDIP
	Minimum Supply Voltage 4.75V
	Pin Count 20
	Maximum Supply Voltage 5.25V
	Maximum High Level Output Current -15mA
	Maximum Propagation Delay Time @ CL 15ns
	Minimum Operating Temperature 0°C
	Maximum Low Level Output Current 24mA
	Maximum Operating Temperature 70°C
	Standards/Approvals No
	Width 6.6 mm
	Series SNx4LS24x
	Length 26.92mm
	Height 5.08mm
	Automotive Standard No
	Supply Current 54mA

Datasheet

74LS Family Inverters & Buffers, Texas Instruments

Texas Instruments range of Inverters and Buffers from the 74LS Family of Low Power Schottky Logic ICs. The 74LS Family use bipolar junction technology coupled with Schottky diode clamps to achieve operating speeds equal to the original 74TTL family but with much lower power consumption.

Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin PDIP

74LS Family Inverters & Buffers, Texas Instruments

74LS Family
