Renesas Electronics ISL83078EIUZA-T Line Transceiver, 3 State, Bipolar, 8-Pin MSOP

RS 제품 번호:: 196-8066
제조사 부품 번호:: ISL83078EIUZA-T
제조업체:: Renesas Electronics

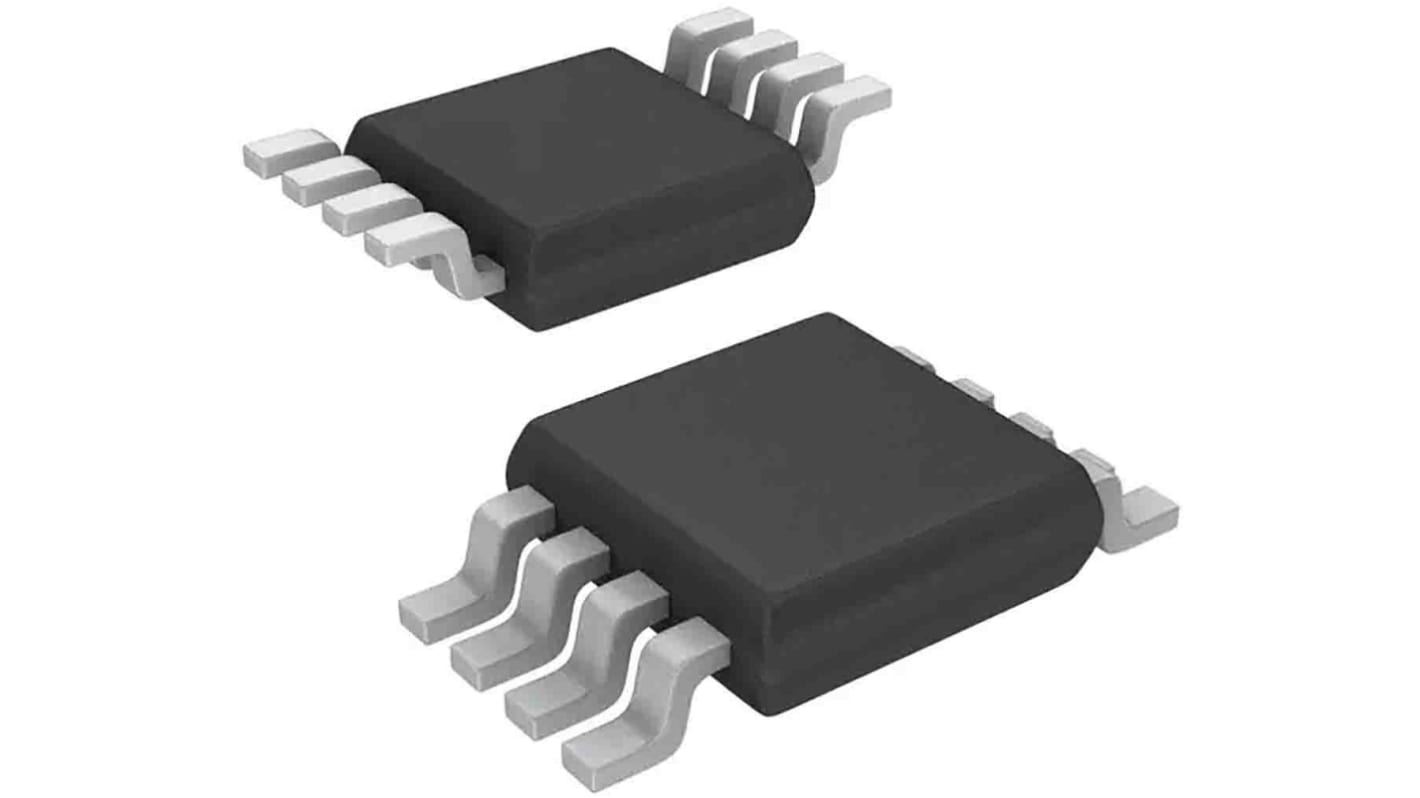

Renesas Electronics ISL83078EIUZA-T Line Transceiver, 3 State, Bipolar, 8-Pin MSOP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 reel of 2500 units)*

₩4,638,900.00

일시적 품절

2026년 5월 25일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	릴당*
2500 - 2500	₩1,855.56	₩4,637,960.00
5000 - 7500	₩1,817.96	₩4,545,370.00
10000 +	₩1,782.24	₩4,454,190.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 196-8066
제조사 부품 번호:: ISL83078EIUZA-T
제조업체:: Renesas Electronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Renesas Electronics
	Product Type	Line Transceiver
	Logic Family	CMOS
	Logic Function	Transceiver
	IC Type	Line Transceiver IC
	Input Type	Differential
	Output Type	3 State
	Polarity	Bipolar
	Mount Type	Surface
	Package Type	MSOP
	Minimum Supply Voltage	-7V
	Pin Count	8
	Maximum High Level Output Current	250mA
	Maximum Supply Voltage	12V
	Maximum Low Level Output Current	-250mA
	Minimum Operating Temperature	-40°C
	Maximum Propagation Delay Time @ CL	1.5ms
	Maximum Operating Temperature	85°C
	Series	ISL83078E
	Standards/Approvals	No
	Length	3mm
	Height	0.85mm
	Width	3 mm
	Supply Current	800μA
	Automotive Standard	No

	모두 선택
	브랜드 Renesas Electronics
	Product Type Line Transceiver
	Logic Family CMOS
	Logic Function Transceiver
	IC Type Line Transceiver IC
	Input Type Differential
	Output Type 3 State
	Polarity Bipolar
	Mount Type Surface
	Package Type MSOP
	Minimum Supply Voltage -7V
	Pin Count 8
	Maximum High Level Output Current 250mA
	Maximum Supply Voltage 12V
	Maximum Low Level Output Current -250mA
	Minimum Operating Temperature -40°C
	Maximum Propagation Delay Time @ CL 1.5ms
	Maximum Operating Temperature 85°C
	Series ISL83078E
	Standards/Approvals No
	Length 3mm
	Height 0.85mm
	Width 3 mm
	Supply Current 800μA
	Automotive Standard No

Datasheet - 178

The Renesas Electronics are Bi CMOS 3.3V powered, Low Power, High Speed, single transceiver that meet both the RS-485 and RS-422 standard for balanced communication. these device have very low bus currents and it allows up to 256 transceiver on the network without violating the RS-485 specifications, 32 unit load maximum and without using repeater. it utilize slew rate limited driver which reduce EMI, and minimize reflections from improperly terminated transmission lines, or unterminated stubs in multidrop and multipoint application.

Full fail-safe receivers

Hot plug - Tx and Rx outputs remain three-state during power-up

True 1/8 unit load allows up to 256 devices on the bus

Single 3.3V supply

High data rates up to 20Mbp

Renesas Electronics ISL83078EIUZA-T Line Transceiver, 3 State, Bipolar, 8-Pin MSOP
