RS PRO Plunger Limit Switch, 1 NO/1 NC, IP67, Thermoplastic Housing, 400 V ac, 10 A

RS 제품 번호:: 136-246
제조업체:: RS PRO

RS PRO Plunger Limit Switch, 1 NO/1 NC, IP67, Thermoplastic Housing, 400 V ac, 10 A

Subtotal (1 unit)*

₩40,606.12

현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량	한팩당
1 +	₩40,606.12

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 136-246
제조업체:: RS PRO

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	RS PRO
	Product Type	Limit Switch
	Actuator Type	Plunger
	Contact Configuration	1 NO/1 NC
	IP Rating	IP67
	Housing Material	Thermoplastic
	Contact Type	Snap Action
	Switching Current	10 A
	Terminal Type	M3.5 Screw Clamp Terminal
	Switching DC Voltage	250 V dc
	Switching AC Voltage	400 V ac
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Depth	33mm
	Length	66mm
	Standards/Approvals	IEC 60947-5:1/EN 60947-5-1
	Width	57 mm
	Hazardous Area Certification	No
	Operating Force	15N
	Mechanical Life	15000000Cycles
	Conduit Entry	M20x1.5 Cable Gland

	모두 선택
	브랜드 RS PRO
	Product Type Limit Switch
	Actuator Type Plunger
	Contact Configuration 1 NO/1 NC
	IP Rating IP67
	Housing Material Thermoplastic
	Contact Type Snap Action
	Switching Current 10 A
	Terminal Type M3.5 Screw Clamp Terminal
	Switching DC Voltage 250 V dc
	Switching AC Voltage 400 V ac
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Depth 33mm
	Length 66mm
	Standards/Approvals IEC 60947-5:1/EN 60947-5-1
	Width 57 mm
	Hazardous Area Certification No
	Operating Force 15N
	Mechanical Life 15000000Cycles
	Conduit Entry M20x1.5 Cable Gland

COO (Country of Origin):: IT

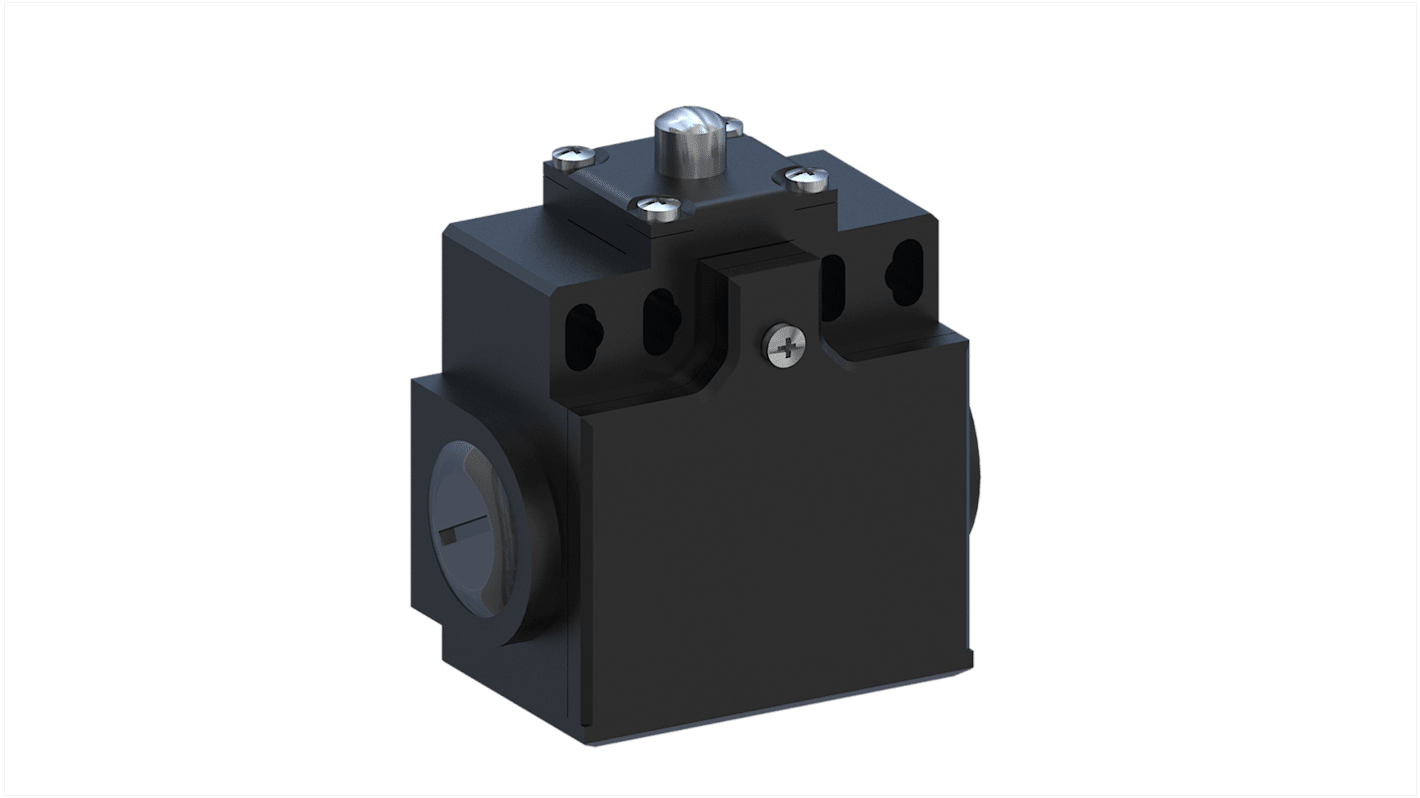

RS PRO Limit Switch - Thermoplastic, Metal Plain Plunger, 1 NO + 1 NC

Unleash precision control with the RS PRO Thermoplastic Limit Switch, the ideal choice for high-performance industrial applications. Whether you're managing manufacturing equipment, automation systems, or monitoring machinery, this versatile switch ensures reliable operation in the most critical settings.

Why Would You Choose This Limit Switch?

At the heart of this switch is a metal plain plunger that provides smooth and consistent actuation, designed for wear resistance even in the toughest environments. Its reinforced thermoplastic body guarantees resilience, ensuring that the switch withstands the rigours of industrial use. The aesthetic and durable design means it not only performs under pressure but looks good doing it.

Snap Action Contacts for Fast Response

Expect reliable response times thanks to the snap action contacts, ensuring that your operations remain efficient and on track, no matter the demands.

With the RS PRO Thermoplastic Limit Switch, you get a combination of precision, durability, and versatility to enhance your industrial systems' safety, efficiency, and reliability. Whether it's detecting objects, monitoring positioning, or controlling movement, this limit switch has you covered.

Features and Benefits

Positioning and travel limit

Object passing / counting

Metal plain plunger

Two cable inlets for M20 x 1.5 cable glands

Snap action contacts (1 NO + 1 NC)

M3.5 screw with cable clamp

Standards Met

IEC 60947-5-1, EN 60947-5-1

Applications

Automation and Control

Industrial
