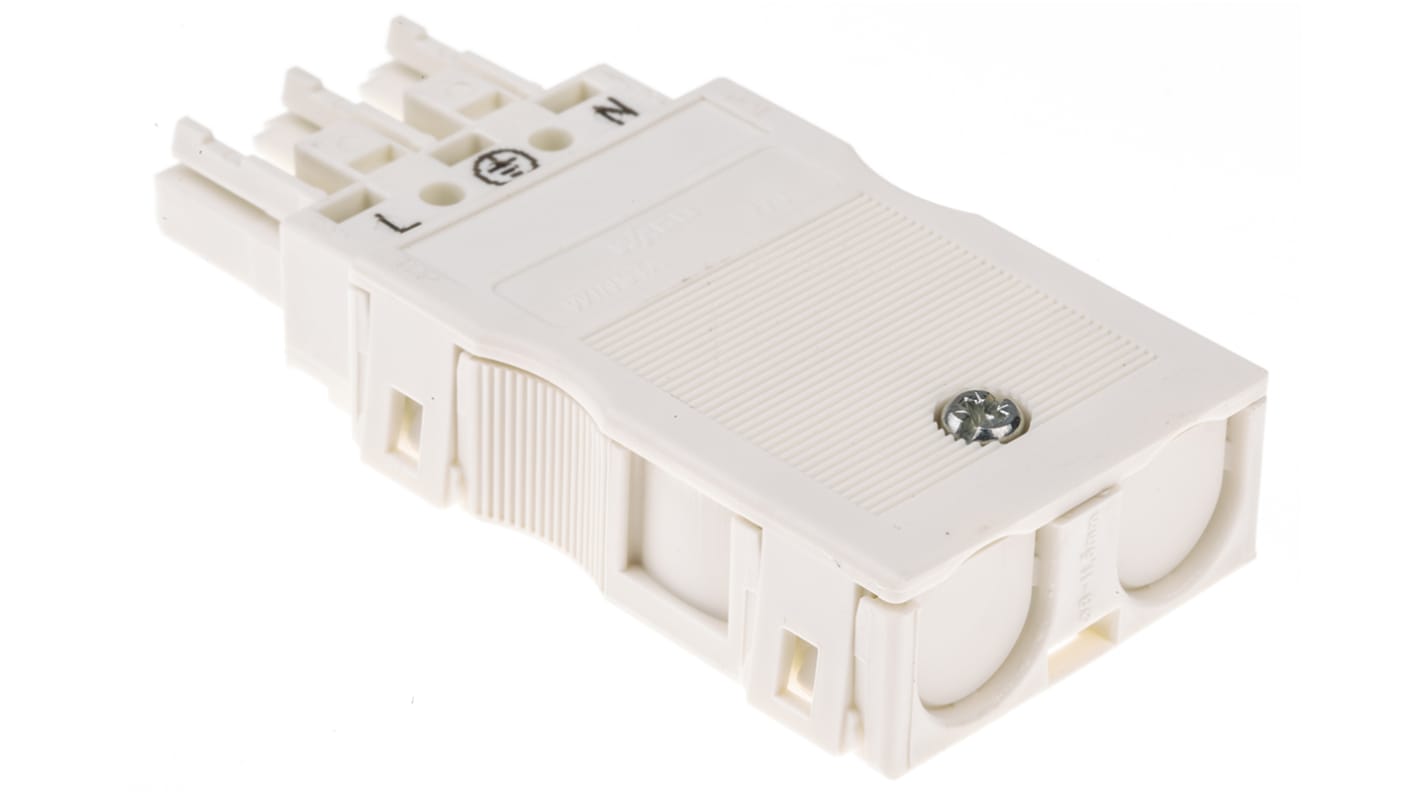

WAGO 770 Series Snap-in Distribution Block Female Clamp, 3-Pole, 25A, 6-Way
- RS 제품 번호:
- 758-1862
- 제조사 부품 번호:
- 770-123
- 제조업체:
- WAGO
Subtotal (1 unit)*
₩10,549.50
재고있음
- 추가로 2026년 4월 27일 부터 69 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩10,549.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 758-1862
- 제조사 부품 번호:
- 770-123
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Product Type | Lighting Connector | |
| Pole Format | 3 | |
| Series | 770 | |
| Pitch | 1mm | |
| Number of Ways | 6 | |
| Connector Gender | Female | |
| Colour | White | |
| Sub Type | Distribution Block | |
| Termination Type | Clamp | |
| Mount Type | Snap-in | |
| Voltage | 250V | |
| Lighting Connector Current | 25A | |
| Wire Size | 0.5, 4mm² | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Strain Relief | Yes | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Product Type Lighting Connector | ||
Pole Format 3 | ||
Series 770 | ||
Pitch 1mm | ||
Number of Ways 6 | ||
Connector Gender Female | ||
Colour White | ||
Sub Type Distribution Block | ||
Termination Type Clamp | ||
Mount Type Snap-in | ||
Voltage 250V | ||
Lighting Connector Current 25A | ||
Wire Size 0.5, 4mm² | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Strain Relief Yes | ||
Contact Material Copper Alloy | ||
Contact Plating Tin | ||
WAGO Lighting Connector, 4kV Measured Shock Voltage, 20 to 12AWG Wire Size Range - 770 Series - 770-123
Searching for a reliable way to link lighting elements? This lighting connector from WAGO secures cable circuits in a snap. Its cage clamp termination method uses spring pressure to hold wires firmly in place. This means that wiring takes less time and needs minimal maintenance. As mechanical and colour-coded mating features are built into the socket, you can say goodbye to crossed wires and hello to error-free installation.
Features & Benefits
• Current rating of 25A means it stands up to high-power loads
• Connects multiple components at once, thanks to a three-pole, six-way setup
• Compact dimensions of 15 (H) x 34.6 (W) x 75.9mm (D) fit in small spaces
• Integrated test point lets you run checks without disconnecting
• Strain relief housing protects wiring for a safe, long-lasting connection
Applications
• Automation controllers
• Mains lighting sources
• Power engineering
What are this connector's contacts made from?
The contacts are made from tin-plated copper alloy, making them highly conductive and corrosion-resistant for a reliable connection.
Do the cage clamps hold up in extreme temperatures?
Yes, you can rely on the clamps in this unit in a wide operating temperature range between -35°C and +85°C.
