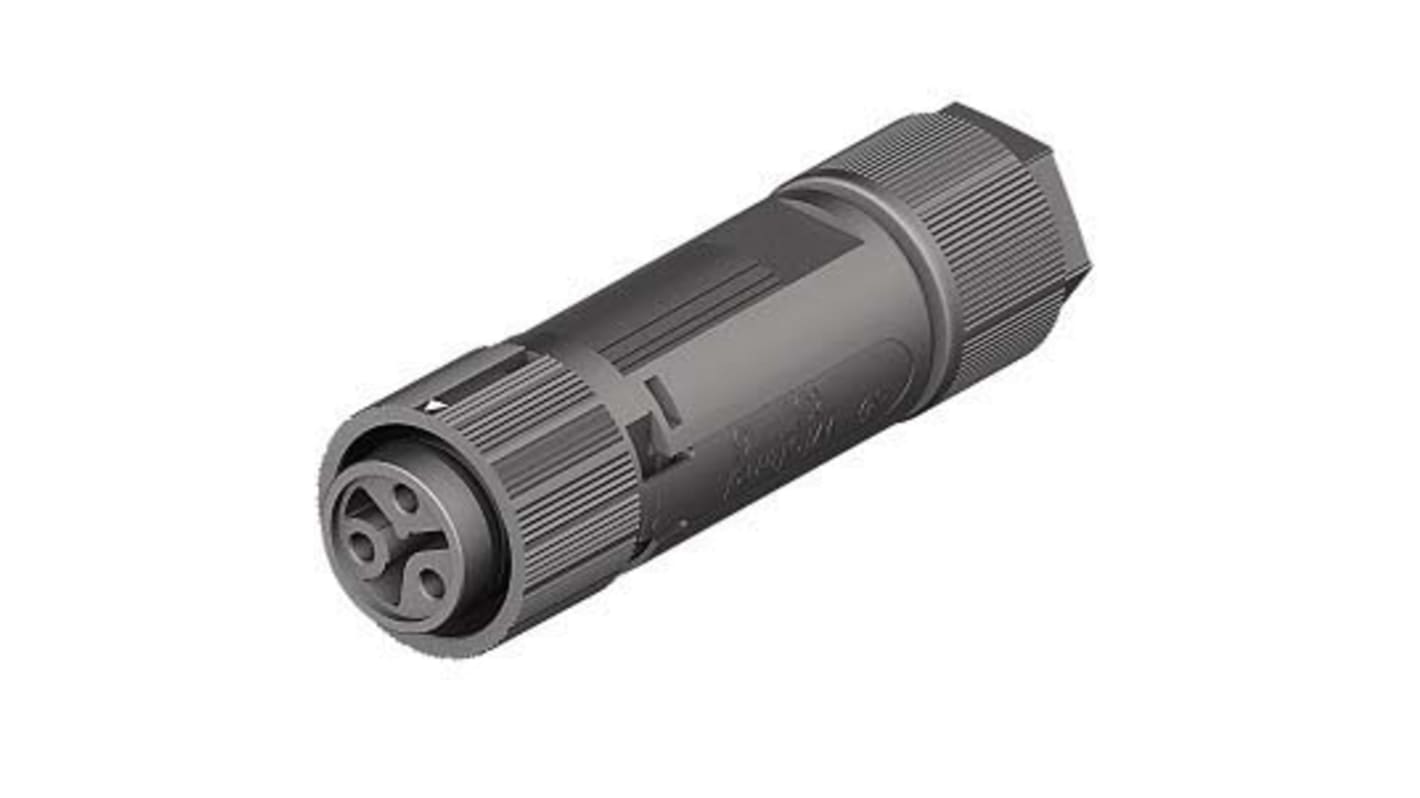

Wieland RST16i2/3 Series Cable Mini Connector Female Screw, 3-Pole, 16A, IP66, IP68, IP69

모든 Lighting Connectors 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩17,550.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 54 개 단위 배송 준비 완료
  • 추가로 2026년 5월 06일 부터 100 개 단위 배송
  • 추가로 2026년 5월 28일 부터 300 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 9₩17,550.00
10 - 24₩16,848.00
25 +₩16,146.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
144-3059
제조사 부품 번호:
46.031.4553.1
제조업체:
Wieland
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Wieland

Pole Format

3

Product Type

Lighting Connector

Series

RST16i2/3

Connector Gender

Female

Colour

Black

Sub Type

Mini Connector

Termination Type

Screw

Mount Type

Cable

Voltage

400V

Lighting Connector Current

16A

IP Rating

IP66, IP68, IP69

Wire Size

0.25, 1.5mm²

Contact Gender

Female

Diameter

19.9mm

Standards/Approvals

No

Strain Relief

Yes

Contact Plating

Silver

Contact Material

Brass

COO (Country of Origin):
DE

Wieland RST Lighting Connector


The RST Series by Wieland has four series available, offering a complete electrical installation system to meet different requirements. All connectors are fitter-friendly and offer flexible and easy installation, to minimise incorrect connections. The RST mini is a small connector that is ideal for extremely small spaces, suitable for a variety of different uses beyond just building automation or industry.

Features and Benefits


  • The RST Mini benefits from “plug & play” to ensure they are simple and functional, geared towards easy assembly, using a quick fastener for increased ease of use.

  • End caps for unused slots are joined to the connector directly using a strap, protecting the device against loss.

  • This RST Mini series features TWISTLOCK technology, giving the user clear feedback on the correct end position, ensuring the connector is safe.

  • Only male and female connectors can be connected, giving the user the security of a clear distinction.

  • The lighting connectors are available with either 2 or 3 poles

    • Applications and Uses


  • Electrical installations

  • General network applications

  • Switching applications

  • Multiphase systems

    • RST16i2/3 Lighting Connector


  • Female connector with strain relief

  • Rated current of 16A and rated voltage of 250V

  • Screw connection with three poles

  • For cable diameters of 5 mm - 9.5 mm

  • Black polyamide housing
