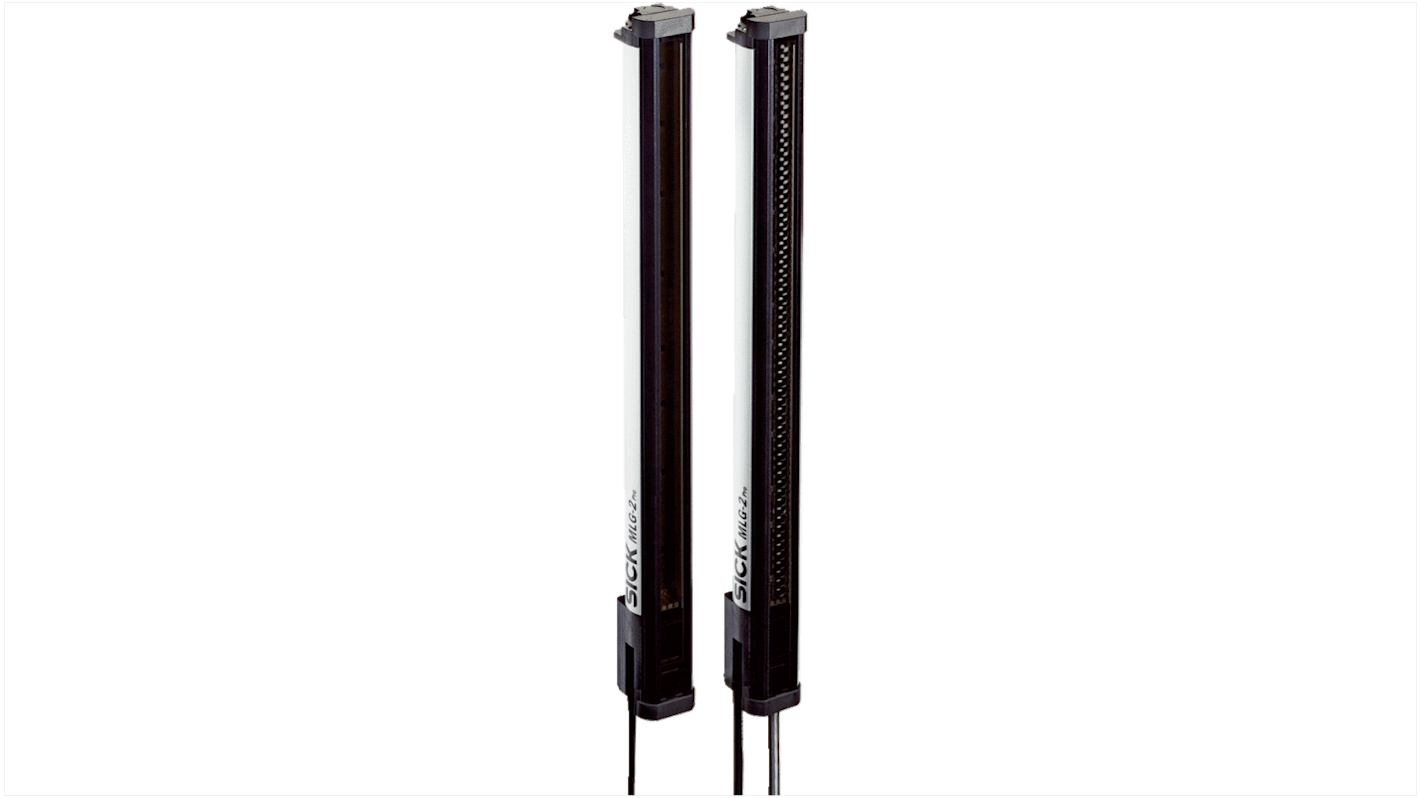

SICK MLG Series

모든 Light Grids 열람하기

Subtotal (1 unit)*

₩2,281,361.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 2월 23일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩2,281,361.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
285-4132
제조사 부품 번호:
MLG20A-0280R10501
제조업체:
SICK
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

SICK

Product Type

Light Grid

Beam Separation

20mm

Component Type

Sender

Light Source

LED

Length

404.4mm

Width

34 mm

Series

MLG

IP Rating

IP67, IP65

Standards/Approvals

EN 60947-5-2

COO (Country of Origin):
DE

Overview


With the MLG-2 measuring automation light grid, SICK is offering the right solution for a wide range of applications in logistics and factory automation. The MLG-2 Prime, MLG-2 Pro and MLG-2 ProNet device variants are used in challenging applications with transparent objects and high object speeds, to name a couple of examples. With a resolution of up to 1.25 mm, the new “cross beam measurement” function and the “transparent” mode, the MLG-2 masters measuring task with high precision.

The pre installed solutions in the SOPAS ET configuration software allow even complex applications, such as object width measurement, to be parameterized with ease. The MLG-2 Pro and MLG-2 ProNet feature common industrial interfaces such as the RS845 or Ethernet interfaces.

At a glance


Beam separation: 2.5 mm, 5 mm, 10 mm, 20 mm, 25 mm, 30 mm, 50 mm

Maximum range: 12 m

Functions: Cross beam measurement, 4 x zone measurement, high-speed scan, transparent mode

Interfaces: PNP, analogue, RS485, IO-Link, PROFINET, PROFIBUS, EtherCAT®, EtherNet/IPTM, CANopen

Sun resistance mode with reliable switching threshold

Your Benefit


High measurement accuracy for detecting even very small objects reliably

Transparent mode function for reliably detecting and measuring transparent objects

The high-speed scan offers short response times for safely detecting objects traveling at high speeds

The SOPAS ET configuration software with menu-driven wizard for quick configuration

Ambient light immunity enables greater reliability

Integrated interfaces and matching function blocks reduce the time and effort involved in the commissioning process

Simple maintenance without the need for specialist staff thanks to the cloning function with IO-Link

Applications


Fields of applications

Packaging industry: Robot control and 3D measurement

Logistics: Volume measurement

Logistics: Package orientation

Logistics: Height and overhand measurement in dynamic storage systems

Machine tools: Measurement of work pieces and to
